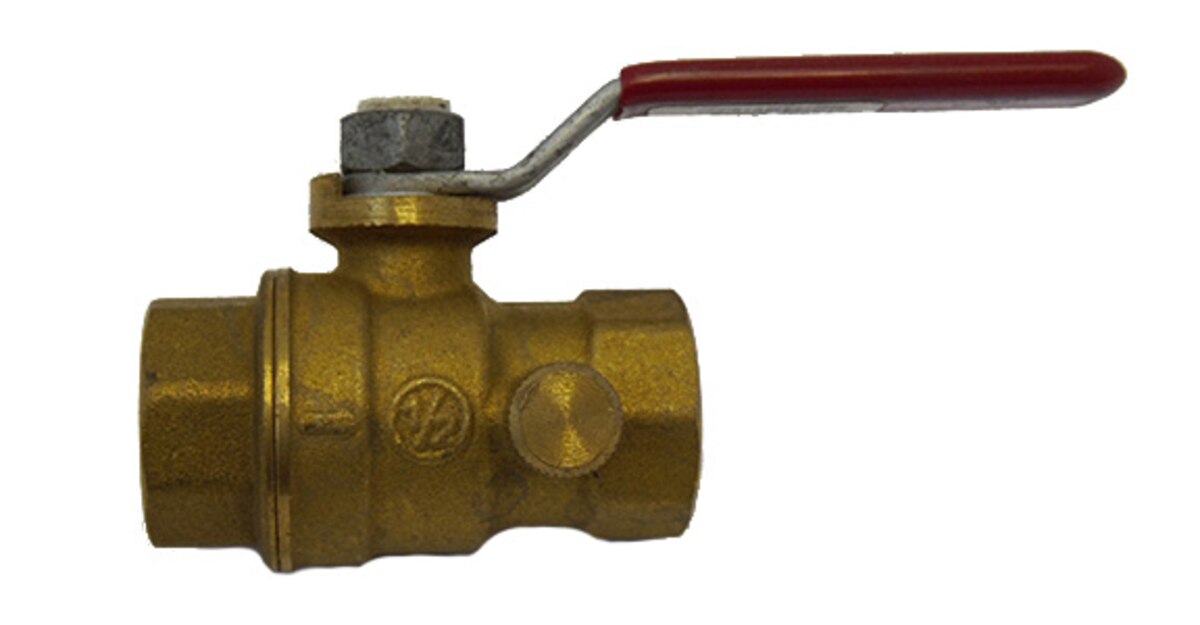

1/2" IRON PIPE BALL VALVE WITH DRAIN
Details
Ball Valve
Type 2-Piece
Actuation Type T-Handle
Nominal Size 1/2 Inch x 1/2 Inch
End Connection IPS x IPS
End to End Distance 2.05 Inch
Ball Material C46500 Forged Brass
Body Material C46500 Brass
Stem Material C36000 Brass
Seat Material PTFE
Handle Material Steel
Port Type Full
Pressure Rating 600 PSI WOG, 150 PSI SWP
Inclusions/Features C86400 Brass Packing Nut, PTFE Packing Gland, EPDM O-Ring, PTFE Washer, Steel Hex Nut
Application Commercial/Light Industrial/Steam, Water, Oil, Gas, Air
Applicable Standard CSA, ANSI B2.1/B16.18, CUPC, NSF 61/372
Lead-Free
RoHS Compliant
Type 2-Piece
Actuation Type T-Handle
Nominal Size 1/2 Inch x 1/2 Inch
End Connection IPS x IPS
End to End Distance 2.05 Inch
Ball Material C46500 Forged Brass
Body Material C46500 Brass
Stem Material C36000 Brass
Seat Material PTFE
Handle Material Steel
Port Type Full
Pressure Rating 600 PSI WOG, 150 PSI SWP
Inclusions/Features C86400 Brass Packing Nut, PTFE Packing Gland, EPDM O-Ring, PTFE Washer, Steel Hex Nut
Application Commercial/Light Industrial/Steam, Water, Oil, Gas, Air
Applicable Standard CSA, ANSI B2.1/B16.18, CUPC, NSF 61/372
Lead-Free
RoHS Compliant
