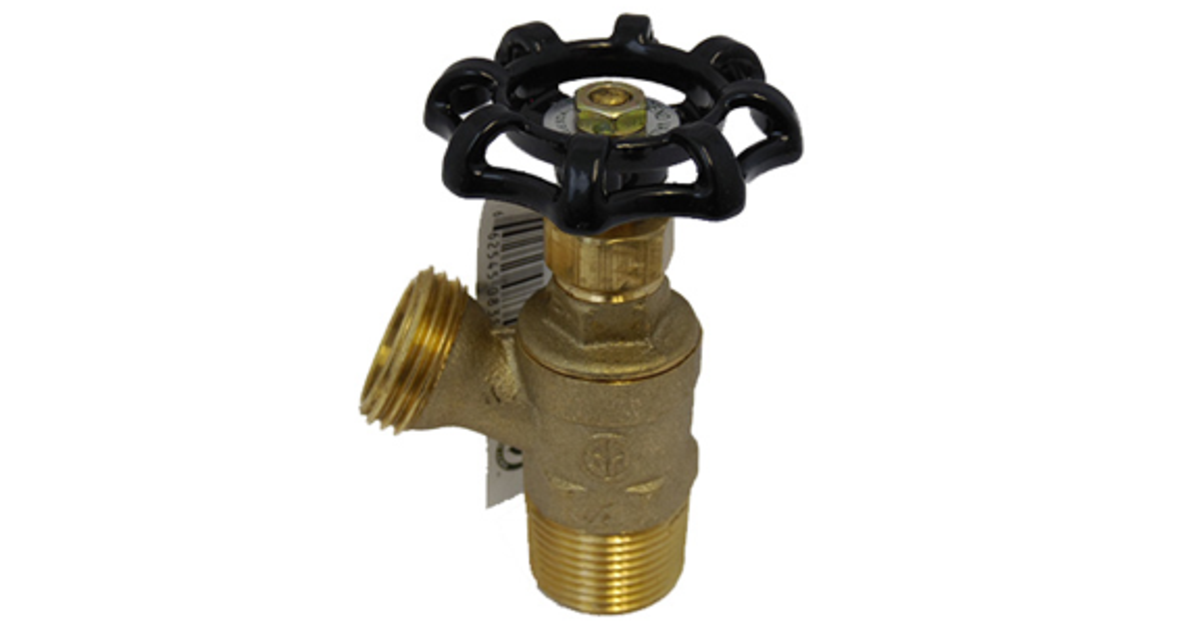

1/2" MALE BOILER DRAIN
Details
Boiler Drain Valve
Type Boiler
Actuation Type Handwheel
Nominal Size 1/2 Inch x 1/2 Inch
End Connection Male Threaded x Male Garden Hose Threaded
Overall Dimensions 2.6 Inch Width x 3.6 Inch Height
Body Material UNS Alloy C46400 Cast Brass
Seal Material NBR Rubber Stem Packing
Pressure Rating 125 PSI CWP
Inclusions/Features Cast Brass Bonnet/Stem, Cast Iron Handle, Brass Packing Nut, NBR Rubber Seat Washer, Stainless Steel Seat Retaining Screw, Cadmium Plated Steel Handle Fastener
Application Plumbing, Industrial, Commercial, Hydraulic System, Potable Water
Lead-Free
Applicable Standard ANSI/ASME B1.20.1/B1.20.7, NSF 61G, ISO 9002, CSA
Type Boiler
Actuation Type Handwheel
Nominal Size 1/2 Inch x 1/2 Inch
End Connection Male Threaded x Male Garden Hose Threaded
Overall Dimensions 2.6 Inch Width x 3.6 Inch Height
Body Material UNS Alloy C46400 Cast Brass
Seal Material NBR Rubber Stem Packing
Pressure Rating 125 PSI CWP
Inclusions/Features Cast Brass Bonnet/Stem, Cast Iron Handle, Brass Packing Nut, NBR Rubber Seat Washer, Stainless Steel Seat Retaining Screw, Cadmium Plated Steel Handle Fastener
Application Plumbing, Industrial, Commercial, Hydraulic System, Potable Water
Lead-Free
Applicable Standard ANSI/ASME B1.20.1/B1.20.7, NSF 61G, ISO 9002, CSA
