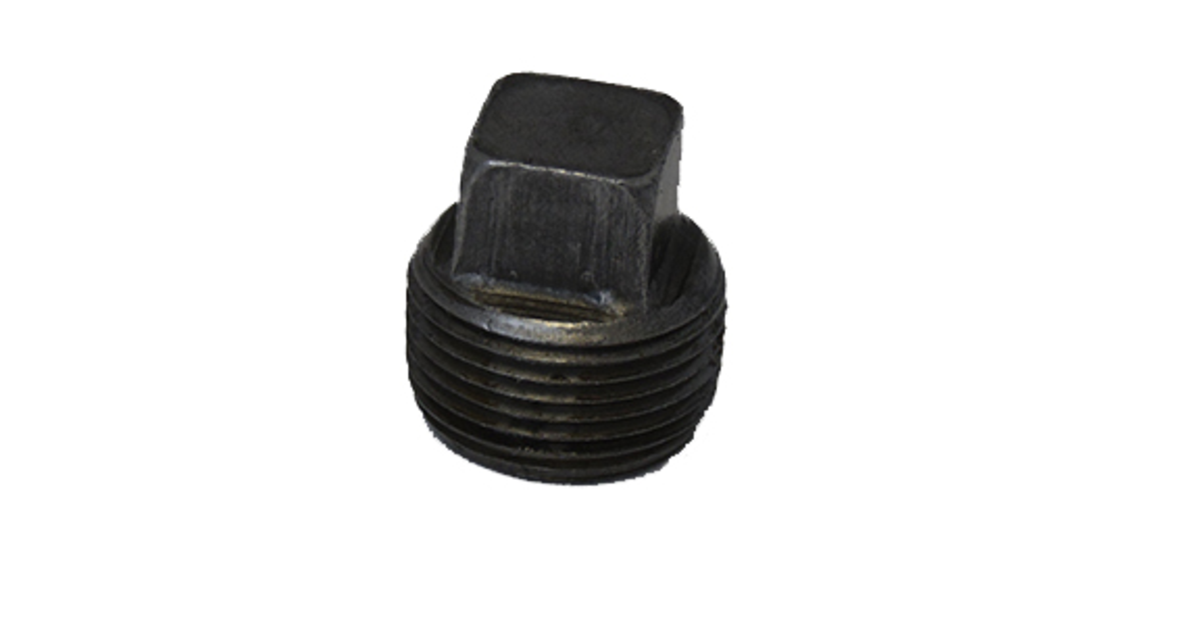

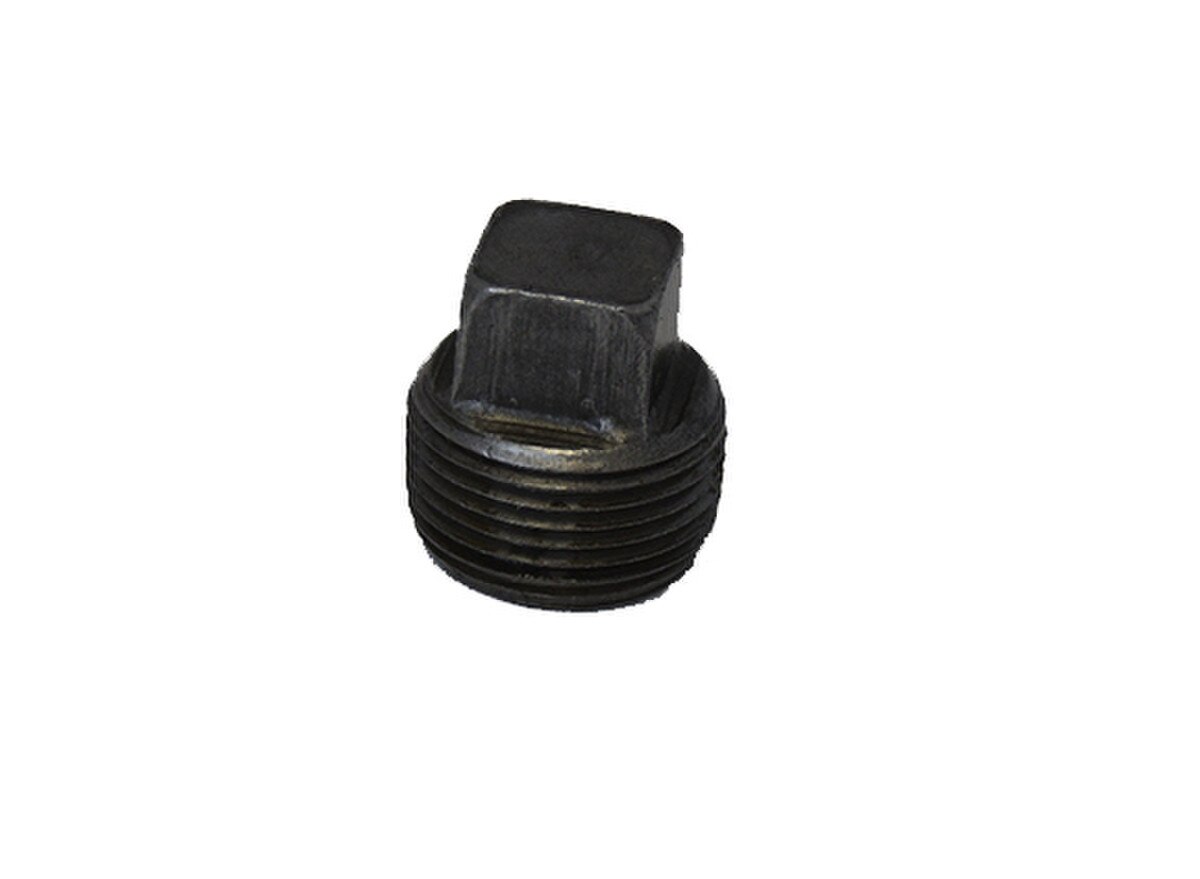

1" BLACK MALLEABLE PLUG

Plug Fitting
Type Square Head
Nominal Pipe Size 1 Inch
Overall Length 1.25 Inch
Width Across Flat 0.81 Inch
End Connection Male Threaded
Material Chinese Malleable Iron
Material Specification ASTM A197/A197M
Finish Black
Pressure Rating Class 150
Application Residential, Commercial and Industrial
Applicable Standard ANSI/ASME B16.39/B16.14/B1.201, UL/FM, ISO 9000/2000
Chinese
Lead-Free
RoHS Compliant
Service Temperature 186 Deg C
