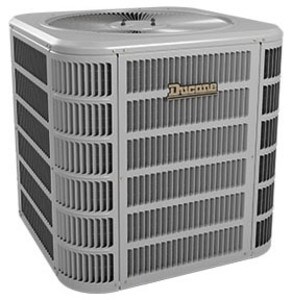

• 4HP15L18 16T64 1.5 TON 15 SEER R410 HEAT PUMP

4HP15L18 16T64 1.5 TON 15 SEER R410 HEAT PUMP

(0)No Reviews yet
Heat Pump
Type 1-Stage, High Efficiency, Heavy Duty Scroll Compressor, Outdoor, Split System, Louvered Tier
Voltage Rating 208 to 230 Volt AC
Current Rating 12.3 Amp (Minimum Circuit), 20 Amp (Maximum Device Overcurrent), 9 Amp (Rated Load), 48 Amp (Locked Rotor) Compressor, 1.1 Amp (Full Load) Fan Motor
Frequency Rating 60 Hertz
Number of Phases 1
Power Rating 1/6 HP (Fan Motor)
Cooling Capacity 18000 BTU per Hour (AHRI), 14200 BTU per Hour (Sensible)
Installation Grommet
Enclosure Material Galvanized Steel
Enclosure Finish Baked Polyester Painted
Size 28.25 Inch Width x 28.25 Inch Depth x 43.25 Inch Height
Approval ETL (Canada and US)
Refrigerant Type R-410A
Heating Capacity 17600 BTU per Hour at 47 Deg F, 10800 BTU per Hour at 17 Deg F
Energy Efficiency Ratio 14 SEER/12 EER
Sound Level 76 Decibel
Speed Rating 825 RPM (Fan Motor)
Refrigerant Line Size 3/4 Inch (Suction), 3/8 Inch (Liquid)
Applicable Standard AHRI
