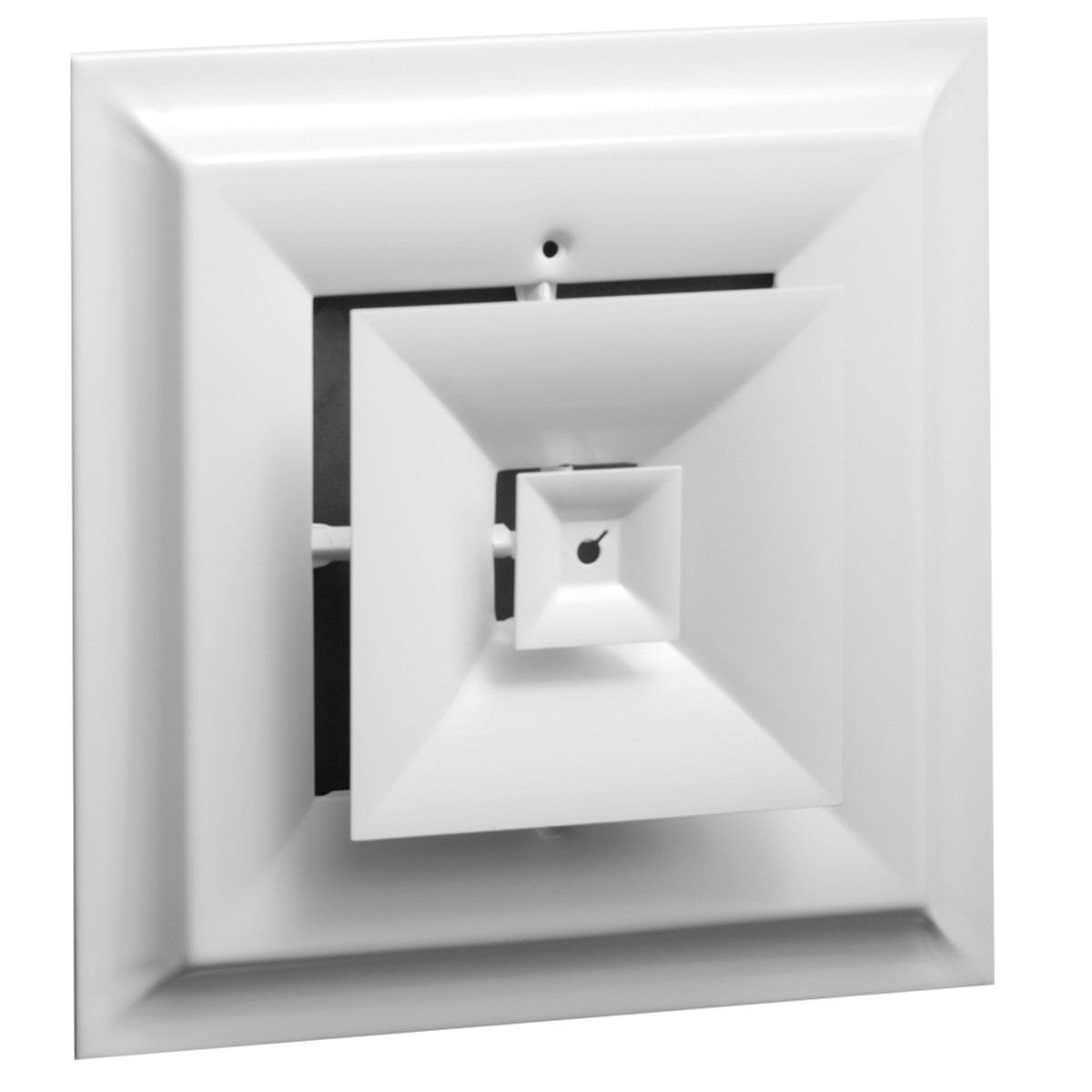

FPD10 24" X 24" X 10" SQUARE CEILING DIFFUSER
Details
Diffuser
Type Ceiling, Fixed Pattern
Deflection 4-Way, 2-Cone Fixed Core

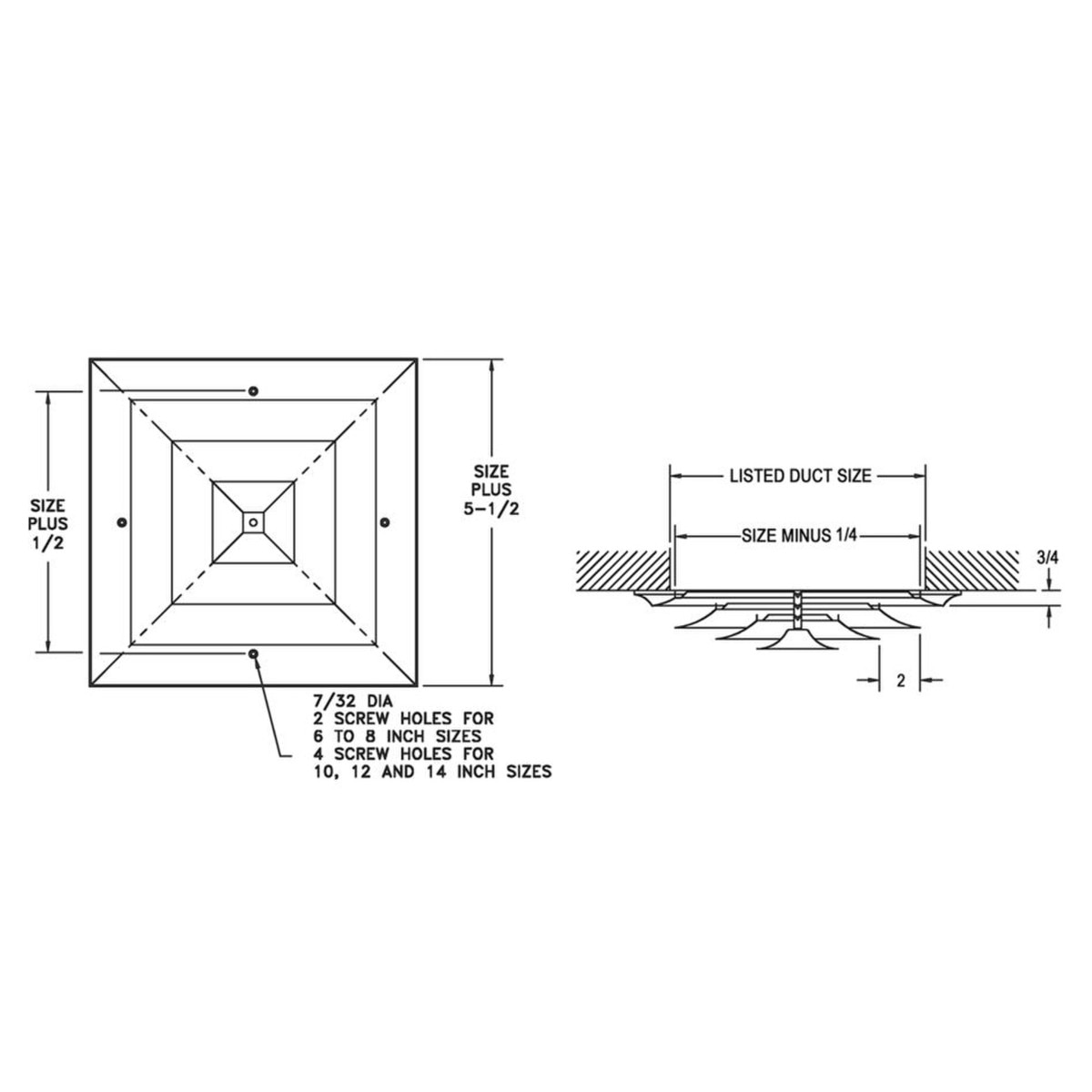

Overall Dimensions 23-3/4 Inch Width x 23-3/4 Inch Height
Fin Angle 360 Degree
Material Steel
Finish/Color Bright White Enamel
Inclusions/Features Fixed Collar, Butterfly Damper
Collar Size 10 Inch
Used On 2 Foot x 2 Foot T-Bar Ceiling System
Application Commercial
