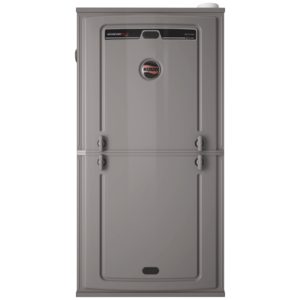

R95TC0701317 70K BTU MULTI POSITION 95% 1 STAGE CONSTANT TORQUE FURNACE
- 95% residential gas furnace CSA certified
- 4-way multi-poise design
- PlusOneTM Diagnostics 7-Segment LED all units
- PlusOneTM Ignition System – DSI for reliability and longevity
- PlusOneTM Water Management System with patented Blocked Drain Sensor
- The heat exchanger is removable for improved serviceability. Aluminized steel primary and stainless steel secondary construction provide maximum corrosion resistance and thermal fatigue reliability.
- Low profile “34-inch” cabinet ideal for space-constrained installations.
- Blower Shelf design – serviceable in all furnace orientations
- Pre-marked hoses – ensures proper system drainage
- Vent with 2" or 3" PVC
- Replaceable Collector box
- Hemmed edges on cabinet and doors
- Constant Torque electrically commutated motor
- Quarter turn fasteners for toolless access
- Integrated control boards feature dip switches for easy system setup
- Self-priming condensate trap
- Solid bottom included
- Cabinet air leakage of less than 2% at 1 inch H2O when tested in accordance with ASHRAE standard 193
| Physical Data and Specifications : | |
|---|---|
| MODEL NUMBERS | R95T(-) 0701317MSA |
| HIGH FIRE INPUT BTU/HR [kW] | 70,000 [20.51] |
| HEATING CAPACITY BTU/HR [kW] | 66,500 [19.49] |
| HIGH ALTITUDE OUTPUT 10% DERATE [kW] | 59,850 [17.54] |
| BLOWER (D x W) [mm] | 11 x 8 [279 x 203] |
| MOTOR H.P. [W]– TYPE | 1/2 [373]-5- Constant Torque ECM |
| MIN. CIRCUIT AMPACITY | 10 |
| MIN. OVERLOAD PROTECTION DEVICE | 15 |
| MAX. OVERLOAD PROTECTION DEVICE | 15 |
| MOTOR FULL LOAD AMPS | 6.8 |
| HEATING SPEED | MEDIUM |
| COOLING SPEED | HIGH |
| MINIMUM EXT. STATIC PRESSURE (IN. W.C.) [kPa] | .23 [.057] |
| MAXIMUM EXT. STATIC PRESSURE (IN. W.C.) [kPa] | .9 [0.224] |
| HEATING CFM @ .2" [.049 kPa] W.C. E.S.P. [L/s] | 1113 [525] |
| COOLING CFM @ .5" [.124 kPa] W.C. E.S.P. [L/s] | 1198 [565] |
| TEMPERATURE RISE-HIGH FIRE RANGE IN DEGREES °F [°C] | 40 - 70 [22 - 39] |
| APPROX. SHIPPING WEIGHT (LBS.) [kg] | 132 [60] |
| AFUE | 0.95 |
