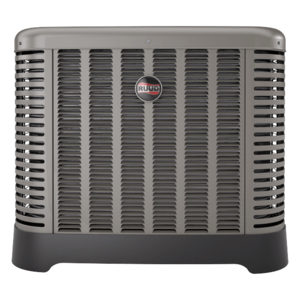

RA1324BJ1NA 2.0 TON 13 SEER 410A AIR CONDITIONER
- Composite base pan – dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
- Powder coat paint system – for a long lasting professional finish
- Scroll compressor – uses 70% fewer moving parts for higher efficiency and increased reliability
- Modern cabinet aesthetics – increased curb appeal with visually appealing design
- Curved louver panels – provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
- Optimized fan orifice – optimizes airflow and reduces unit sound
- Rust resistant screws – confirmed through 1500-hour salt spray testing
- PlusOneTM Expanded Valve Space – 3"-4"-5" service valve space – provides a minimum working area of 27-square inches for easier access
- PlusOneTM Triple Service Access – 15" wide, industry lead- ing corner service access – makes repairs easier and faster. The two fastener removable corner allows optimal access to internal unit components. Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly
- Diagnostic service window with two-fastener opening – provides access to the high and low pressure.
- External gauge port access – allows easy connection of “low-loss” gauge ports
- Single-row condenser coil – makes unit lighter and allows thorough coil cleaning to maintain “out of the box” performance
- 35% fewer cabinet fasteners and fastener-free base – allow for faster access to internal components and hassle-free panel removal
- Service trays – hold fasteners or caps during service calls
- QR code – provides technical information on demand for faster service calls
- Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire.
| Physical Data and Specifications : | |
|---|---|
| Model No. | RA1324 |
| Nominal Tonnage | 2.0 |
| Valve Connections | |
| Liquid Line O.D. – in. | 3/8 |
| Suction Line O.D. – in. | 3/4 |
| Refrigerant (R410A) furnished oz.1 | 60 |
| Compressor Type | |
| Outdoor Coil | |
| Net face area – Outer Coil | 9.1 |
| Net face area – Inner Coil | — |
| Tube diameter – in. | 3/8 |
| Number of rows | 1 |
| Fins per inch | 18 |
| Outdoor Fan | |
| Diameter – in. | 20 |
| Number of blades | 2 |
| Motor hp | 1/8 |
| CFM | 2325 |
| RPM | 1075 |
| watts | 137 |
| Shipping weight – lbs. | 142 |
| Operating weight – lbs. | 135 |
| Electrical Data | |
|---|---|
| Line Voltage Data (Volts-Phase-Hz) | 208/230-1-60 |
| Maximum overcurrent protection (amps) | 25 |
| Minimum circuit ampacity | 15 |
| Compressor | |
| Rated load amps | 11.2 |
| Locked rotor amps | 60.8 |
| Condenser Fan Motor | |
| Full load amps | 0.7 |
| Locked rotor amps | 1.3 |
| Line Voltage Data (Volts-Phase-Hz) | — |
| Maximum overcurrent protection (amps) | — |
| Minimum circuit ampacity | — |
| Compressor | |
| Rated load amps | — |
| Locked rotor amps | — |
| Condenser Fan Motor | |
| Full load amps | — |
| Locked rotor amps | — |
| Line Voltage Data (Volts-Phase-Hz) | — |
| Maximum overcurrent protection (amps) | — |
| Minimum circuit ampacity | — |
| Compressor |
