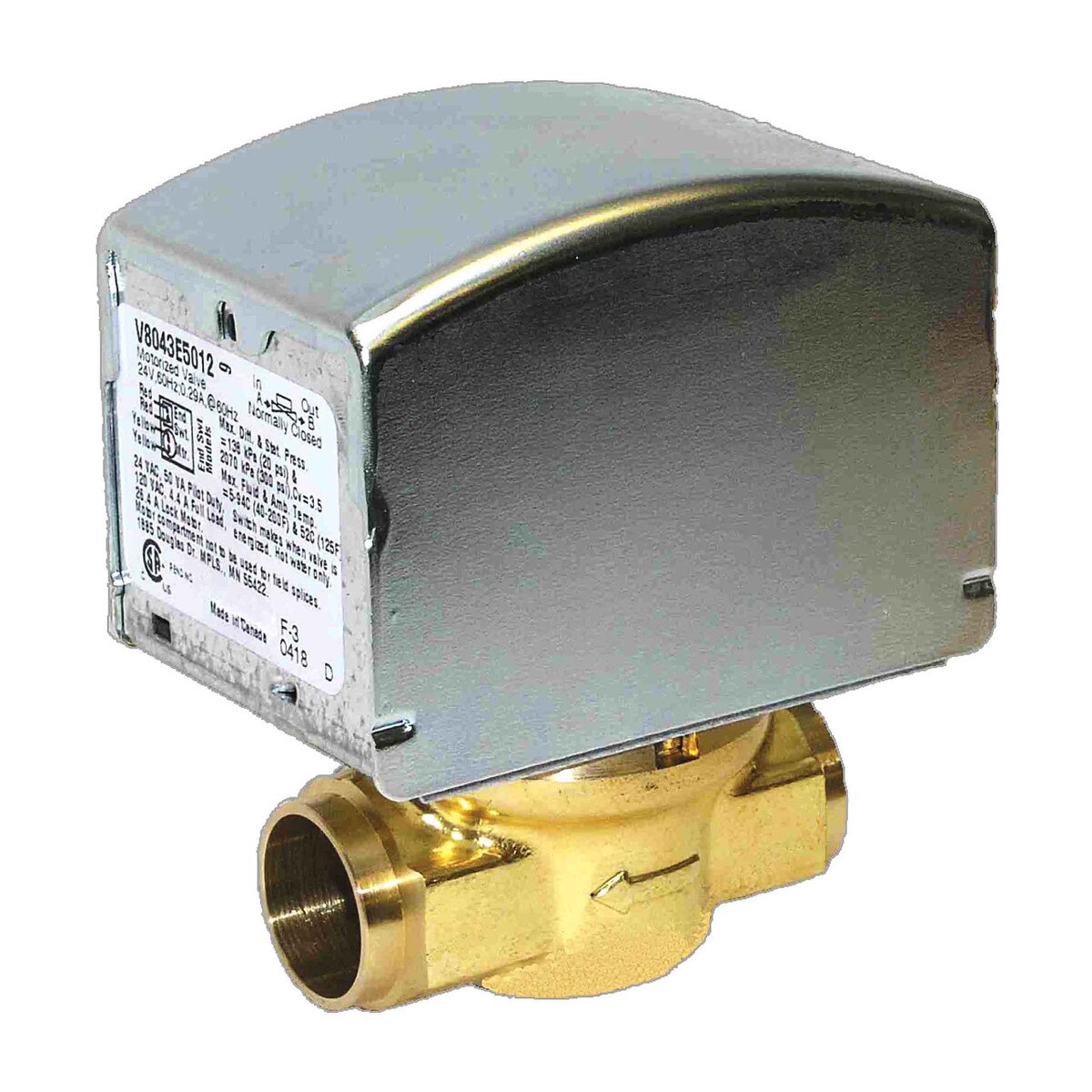

V8043F 5036 3/4" ZONE VALVE TERM BLOCK SWEAT
Details
Motorized Zone Valve
Type 2-Way, Straight Thru
Nominal Size 3/4 Inch x 3/4 Inch
End Connection Soldered x Soldered
Actuation Type 2-Position, Spring Return to Close
Valve Position NC
Body Material Brass
Valve Timing 15 Second (Open)
Input Supply Rating 24 Volt AC at 60 Hertz, 0.32 Amp, 7.2 Volt Amp
Temperature Rating 50 to 200 Deg F (Fluid)
Pressure Rating 20 PSI (Close-Off), 300 PSI (Static)
Media Handled Hot Water
Inclusions/Features Low Voltage, Manual Opener, Normally Open SPST End Switch, Brass Seat, Stainless Steel Stem, Buna-N Rubber Plug/Ball/Disc, EPDM Packing
Application Hydronic Control
Applicable Standard UL, CSA
Overall Dimension 3-1/2 Inch Width x 2-3/8 Inch Depth x 4-3/8 Inch Height
Connection Type Screw Terminal Block
Flow Capacity 3.5 Cv
Relative Humidity 5 to 95 Percent (Non-Condensing)
