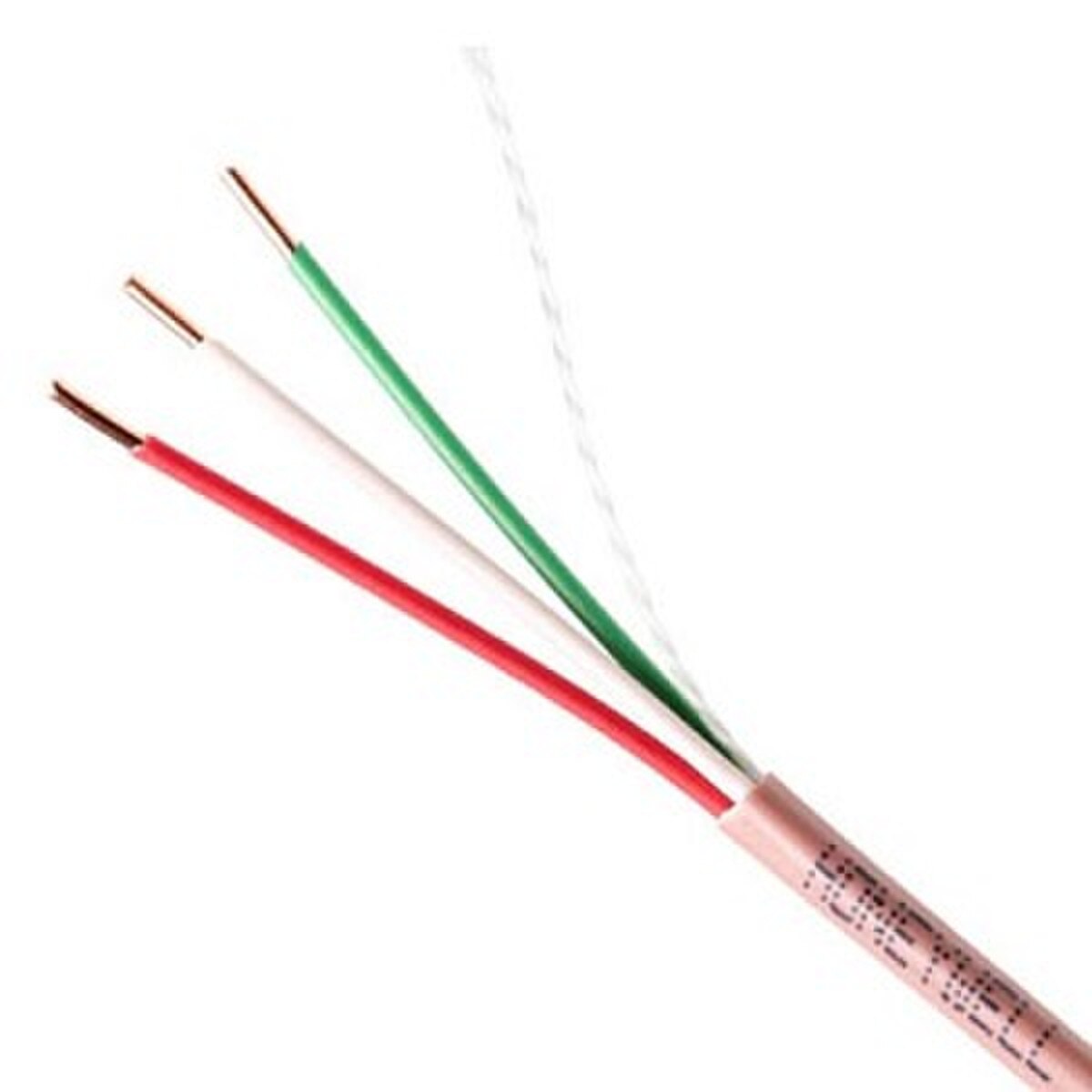

20/3 UL THERMOSTAT CABLE 500' 203TW
Details
Thermostat Cable
Type CL2, Non-Plenum, Sunlight Resistant, General Purpose
Voltage Rating 150 Volt
Conductor Material Bare Copper
Conductor Size 20 AWG
Number of Conductors 3
Jacket Color Brown
Stranding Solid
Jacket Material 0.015 Inch PVC
Insulation Material 0.006 Inch Polypropylene
Color Code Red, White, Green
Temperature Rating -20 to 60 Deg C
Length (4) 500 Foot
Outer Diameter 0.124 Inch
Package Type Reel
Approval ETL
RoHS Compliant
Lay Length 24 Inch
DC Resistance 11.1 Ohm per 1000 Foot at 20 Deg C
Capacitance 20.6 Picofarad per Foot
Impedance 74 Ohm
Flame Rating UL 1685 Vertical Tray
Type CL2, Non-Plenum, Sunlight Resistant, General Purpose
Voltage Rating 150 Volt
Conductor Material Bare Copper
Conductor Size 20 AWG
Number of Conductors 3
Jacket Color Brown
Stranding Solid
Jacket Material 0.015 Inch PVC
Insulation Material 0.006 Inch Polypropylene
Color Code Red, White, Green
Temperature Rating -20 to 60 Deg C
Length (4) 500 Foot
Outer Diameter 0.124 Inch
Package Type Reel
Approval ETL
RoHS Compliant
Lay Length 24 Inch
DC Resistance 11.1 Ohm per 1000 Foot at 20 Deg C
Capacitance 20.6 Picofarad per Foot
Impedance 74 Ohm
Flame Rating UL 1685 Vertical Tray
