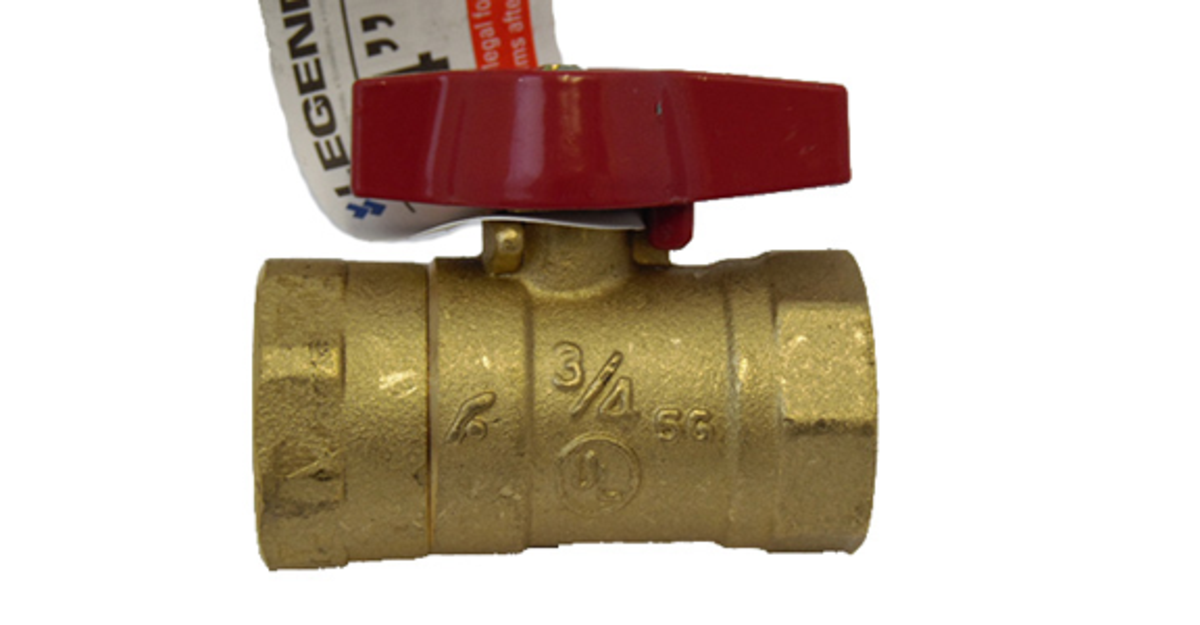

3/4 2 PC LARGE PORT GAS VALVE
Details
Gas Ball Valve
Type 2-Piece, Economy
Actuation Type 1/4 Turn Handle
Nominal Size 3/4 Inch x 3/4 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 2.44 Inch
Ball Material ASTM B16 UNS C36000 Forged Brass
Body Material ASTM B124 UNS C37700 Forged Brass
Stem Material ASTM B16 UNS C36000 Forged Brass
Seat Material PTFE
Handle Material ASTM B86 Coated Zinc-Aluminum
Pressure Rating 400 PSI
Inclusions/Features Zinc Plated Steel Handle Screw, Forged Brass Packing Nut/End Adapter, PTFE Stem Packing
Application All Residential and Commercial Gas Installation
Applicable Standard ANSI/ASME B1.20, ANSI Z21.15, CSA, CSA (Canada and US), UL, ISO
Type 2-Piece, Economy
Actuation Type 1/4 Turn Handle
Nominal Size 3/4 Inch x 3/4 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 2.44 Inch
Ball Material ASTM B16 UNS C36000 Forged Brass
Body Material ASTM B124 UNS C37700 Forged Brass
Stem Material ASTM B16 UNS C36000 Forged Brass
Seat Material PTFE
Handle Material ASTM B86 Coated Zinc-Aluminum
Pressure Rating 400 PSI
Inclusions/Features Zinc Plated Steel Handle Screw, Forged Brass Packing Nut/End Adapter, PTFE Stem Packing
Application All Residential and Commercial Gas Installation
Applicable Standard ANSI/ASME B1.20, ANSI Z21.15, CSA, CSA (Canada and US), UL, ISO
