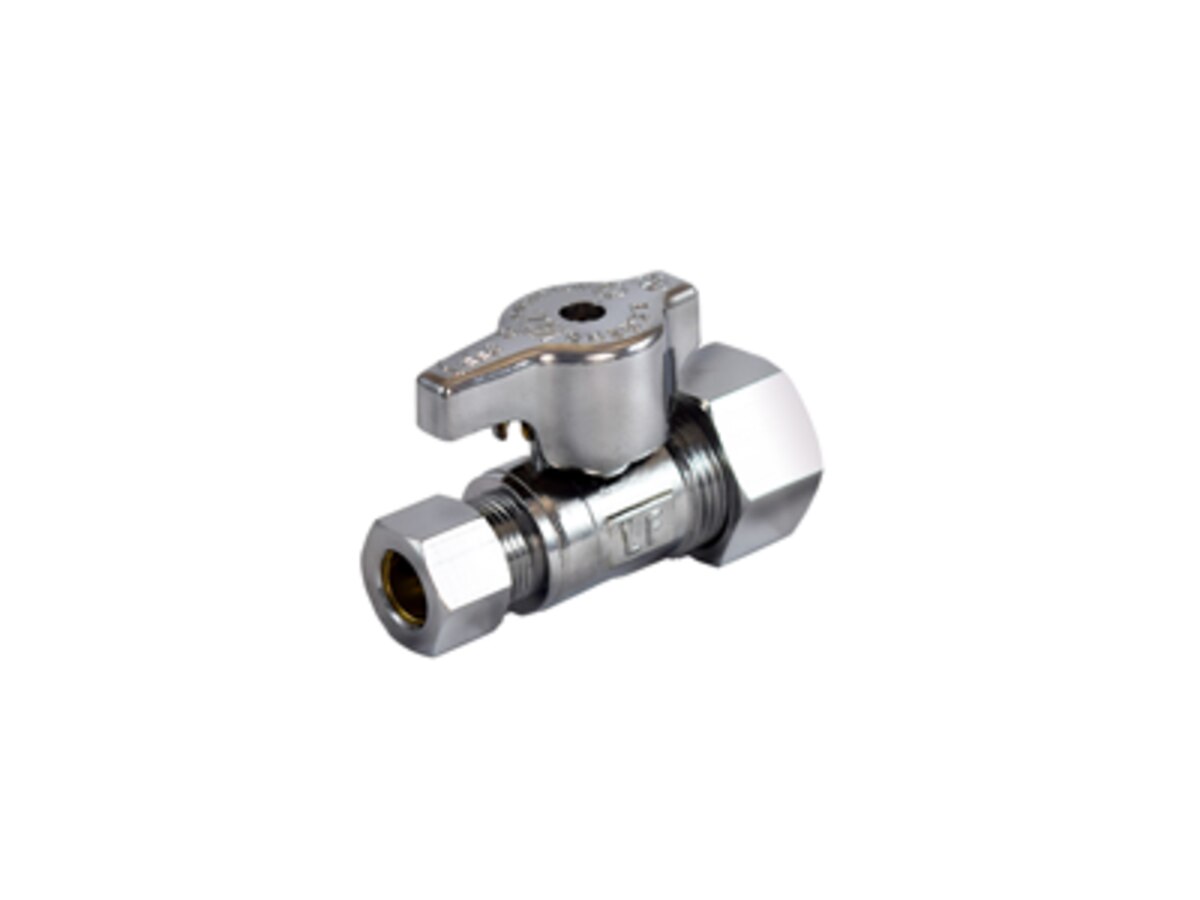

5/8" OD x 3/8" OD STRAIGHT COMPRESSION LEGEND SPEEDY STOP
Details
Stop Valve
Type Straight
Actuation Type 1/4 Turn Handle
Nominal Size 5/8 Inch x 3/8 Inch
End Connection Compression x Compression
End to End Distance 2.44 Inch
Body Material ASTM B124 UNS C46400 Chrome Plated Brass
Seat Material EPDM Rubber
Handle Material ASTM B86 Chrome Plated Zinc
Temperature Rating 120 Deg F
Pressure Rating 125 PSI CWP
Inclusions/Features AISI 1010 Plated Carbon Steel Handle Screw, UNS Alloy C46400 Brass Stem, NBR Rubber Stem O-Ring/Adapter Gasket, UNS Alloy C26000 Brass Compression Ferrule, UNS Alloy C36000 Chrome Plated Brass Compression Nut, UNS Alloy C46400 Brass Ball, UNS Alloy C46400 Brass End Adapter, UNS Alloy C26000 Brass Compression Ferrule, UNS Alloy C36000 Chrome Plated Brass Compression Nut, ASTM D1784, Class 23447 Virgin CPVC Resin Socket Adapter, PEX Barb Adapter UNS Alloy C46400 Brass
Application Plumbing, Industrial, Commercial, Hydronic System
Applicable Standard ANSI/NSF 61G, ISO 9002, US Federal Public Law 111-380
Lead-Free
Type Straight
Actuation Type 1/4 Turn Handle
Nominal Size 5/8 Inch x 3/8 Inch
End Connection Compression x Compression
End to End Distance 2.44 Inch
Body Material ASTM B124 UNS C46400 Chrome Plated Brass
Seat Material EPDM Rubber
Handle Material ASTM B86 Chrome Plated Zinc
Temperature Rating 120 Deg F
Pressure Rating 125 PSI CWP
Inclusions/Features AISI 1010 Plated Carbon Steel Handle Screw, UNS Alloy C46400 Brass Stem, NBR Rubber Stem O-Ring/Adapter Gasket, UNS Alloy C26000 Brass Compression Ferrule, UNS Alloy C36000 Chrome Plated Brass Compression Nut, UNS Alloy C46400 Brass Ball, UNS Alloy C46400 Brass End Adapter, UNS Alloy C26000 Brass Compression Ferrule, UNS Alloy C36000 Chrome Plated Brass Compression Nut, ASTM D1784, Class 23447 Virgin CPVC Resin Socket Adapter, PEX Barb Adapter UNS Alloy C46400 Brass
Application Plumbing, Industrial, Commercial, Hydronic System
Applicable Standard ANSI/NSF 61G, ISO 9002, US Federal Public Law 111-380
Lead-Free
