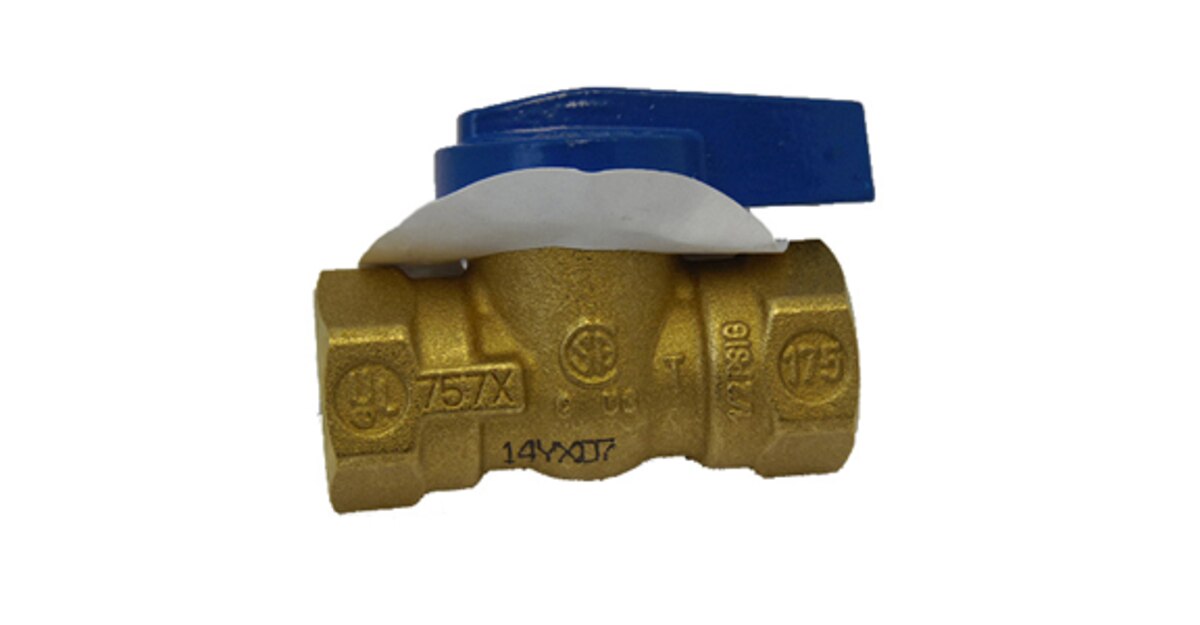

1/2" ONE PIECE BALL GASCOCK BLUE

Gas Ball Valve
Type 1- Piece
Actuation Type 1/4 Turn Handle
Nominal Size 1/2 Inch x 1/2 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 2.36 Inch
Ball Material ASTM B124 UNS C37700 Chrome Plated Brass
Body Material ASTM B124 UNS C37700 Brass
Stem Material ASTM B124 UNS C37700 Brass
Seat Material Type 7PB496 ASTM D2000 Nitrile Rubber
Seal Material Type 7PB496 ASTM D2000 Nitrile Rubber
Handle Material Commercial Grade Die-Cast Aluminum
Pressure Rating 175 PSI CWP
Inclusions/Features Quarter-turn
Application Low/Moderate Pressure Gas
Applicable Standard ANSI Z21.15, ASME B16.44, ANSI/ASME B1.20.1, CSA, ISO 9002, UL 125/842/1477
Overall Dimension 2.36 Inch Length x 1.83 Width
Material Synthetic Fiber (Thrust Washer), Zinc Plated Steel (Handle Screw)
