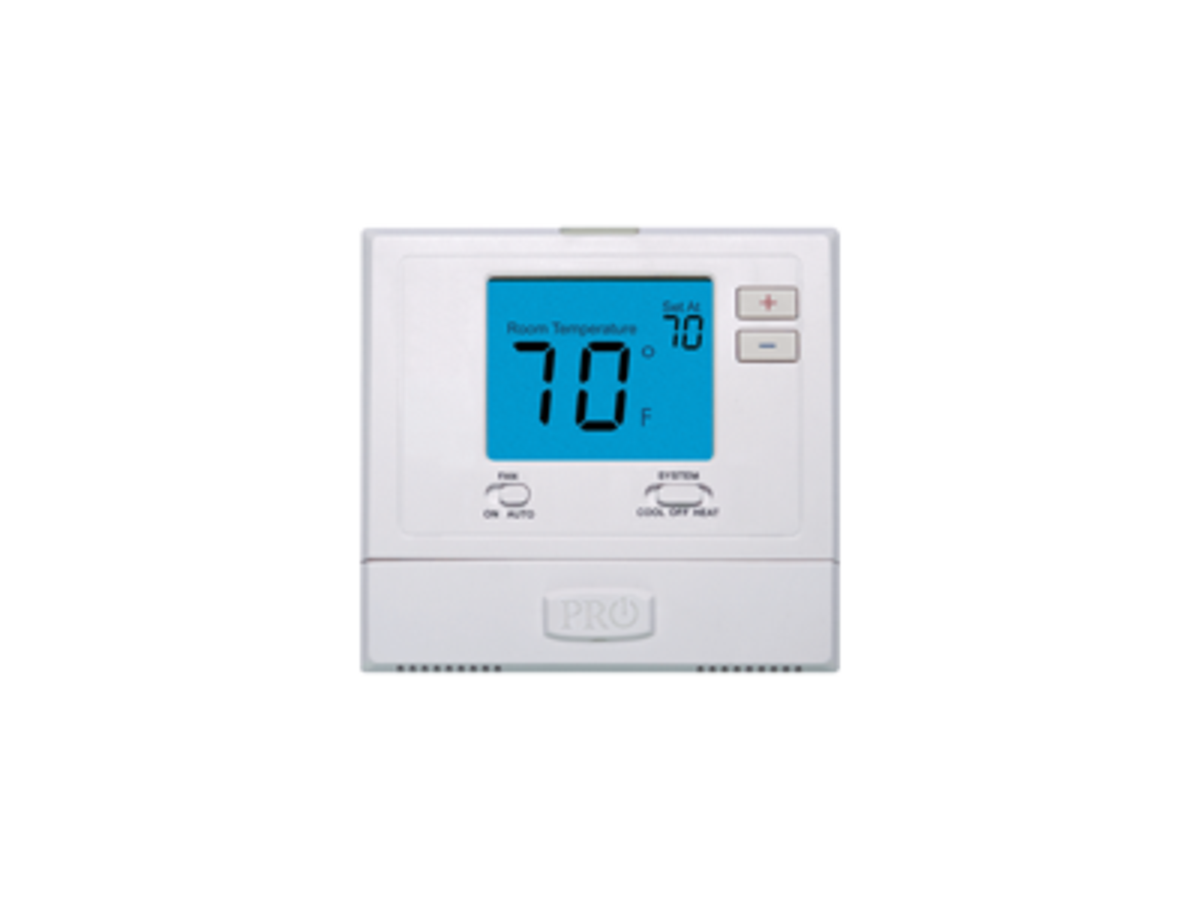

T701 NON-PROGRAMMABLE 1HEAT /1 COOL 4" THERMOSTAT
Details
Thermostat
Type Non-Programmable, 1-Heat/1-Cool, 1-Stage
Voltage Rating 18 to 30 Volt AC 50/60 Hertz
Current Rating 1.5 Amp (Load Terminal)
Temperature Rating 32 to 105 Deg F (Operating), 41 to 95 Deg F (Display), 44 to 90 Deg F (Control)
Size 4.7 Inch Width x 1.1 Inch Depth x 4.4 Inch Height
Mounting Type Wall/Junction Box
Display Size 4 Square Inch
Accuracy +/-1 Deg F
Operating Humidity 90 Percent (Non-Condensing)
Terminal Designation RC, RH, G, Y, W, C, O, B
Applicable Standard NEC Class II
