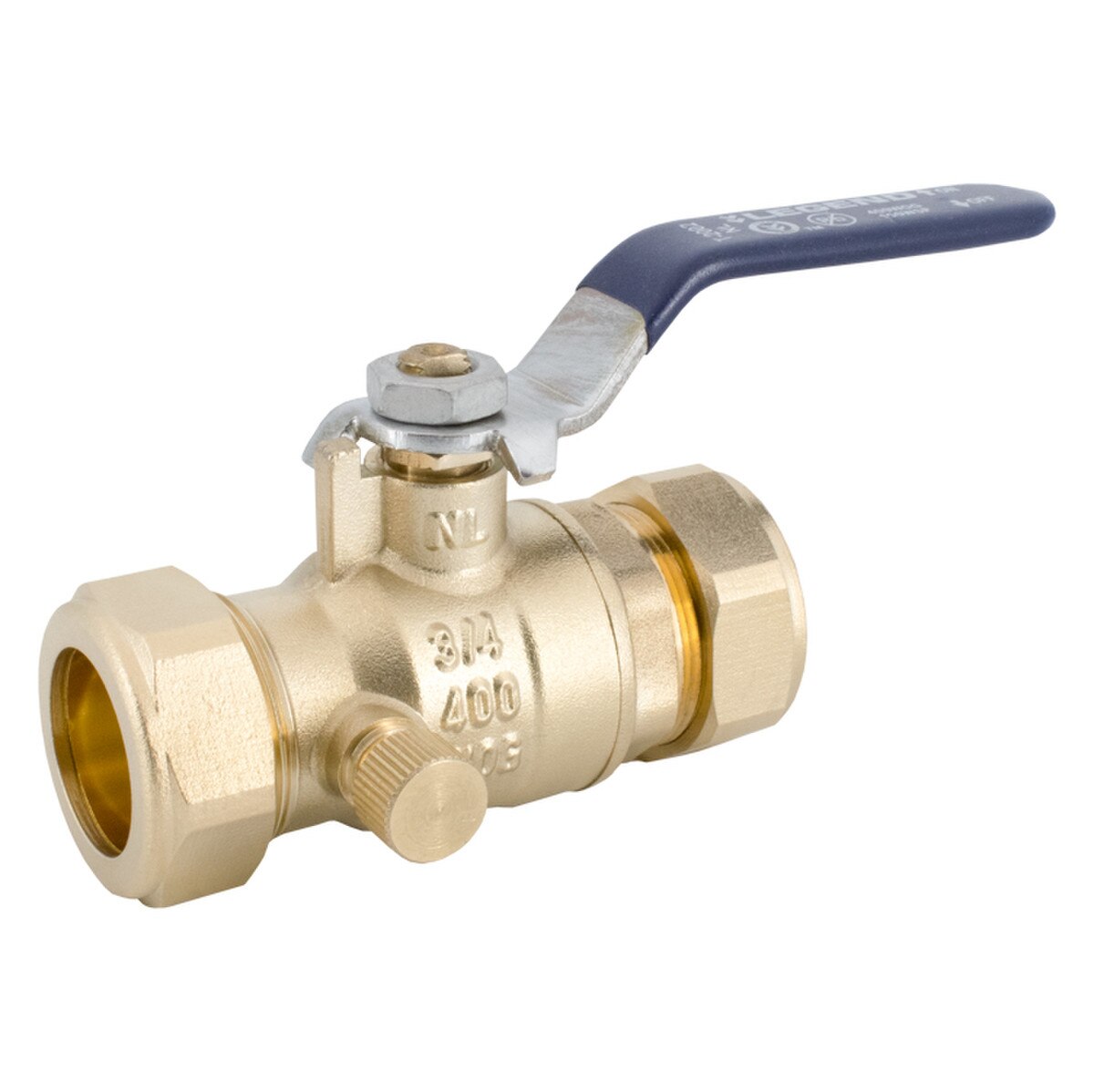

1/2" COMPRESSION BALL VALVE
Details
Ball Valve
Nominal Size 1/2 Inch x 1/2 Inch
End Connection Compression x Compression
End to End Distance 3.08 Inch
Ball Material UNS Alloy C46500 Chrome Plated Forged brass
Body Material UNS Alloy C46500 Forged Brass
Stem Material UNS Alloy C46500 Forged Brass
Seat Material Commercial Grade PTFE
Handle Material ASME SA6, SA283 Grade-C Zinc Plated Steel
Port Type Full
Pressure Rating 400 PSI CWP
Inclusions/Features Plated Steel, Forged Brass Packing Nut/End Adapter/Compression Ferrule/Compression Nut, Commercial Grade PTFE Stem Packing, Bleeder Cap, Commercial Grade NBR Rubber Cap Gasket, Drain
Application Plumbing, Industrial, Commercial, Hydronic System
Applicable Standard ANSI/ASME B1.20/B16.18, ANSI/NSF 61G, MSS SP-110, CUPC/IAPMO, ISO
Lead-Free
Nominal Size 1/2 Inch x 1/2 Inch
End Connection Compression x Compression
End to End Distance 3.08 Inch
Ball Material UNS Alloy C46500 Chrome Plated Forged brass
Body Material UNS Alloy C46500 Forged Brass
Stem Material UNS Alloy C46500 Forged Brass
Seat Material Commercial Grade PTFE
Handle Material ASME SA6, SA283 Grade-C Zinc Plated Steel
Port Type Full
Pressure Rating 400 PSI CWP
Inclusions/Features Plated Steel, Forged Brass Packing Nut/End Adapter/Compression Ferrule/Compression Nut, Commercial Grade PTFE Stem Packing, Bleeder Cap, Commercial Grade NBR Rubber Cap Gasket, Drain
Application Plumbing, Industrial, Commercial, Hydronic System
Applicable Standard ANSI/ASME B1.20/B16.18, ANSI/NSF 61G, MSS SP-110, CUPC/IAPMO, ISO
Lead-Free
