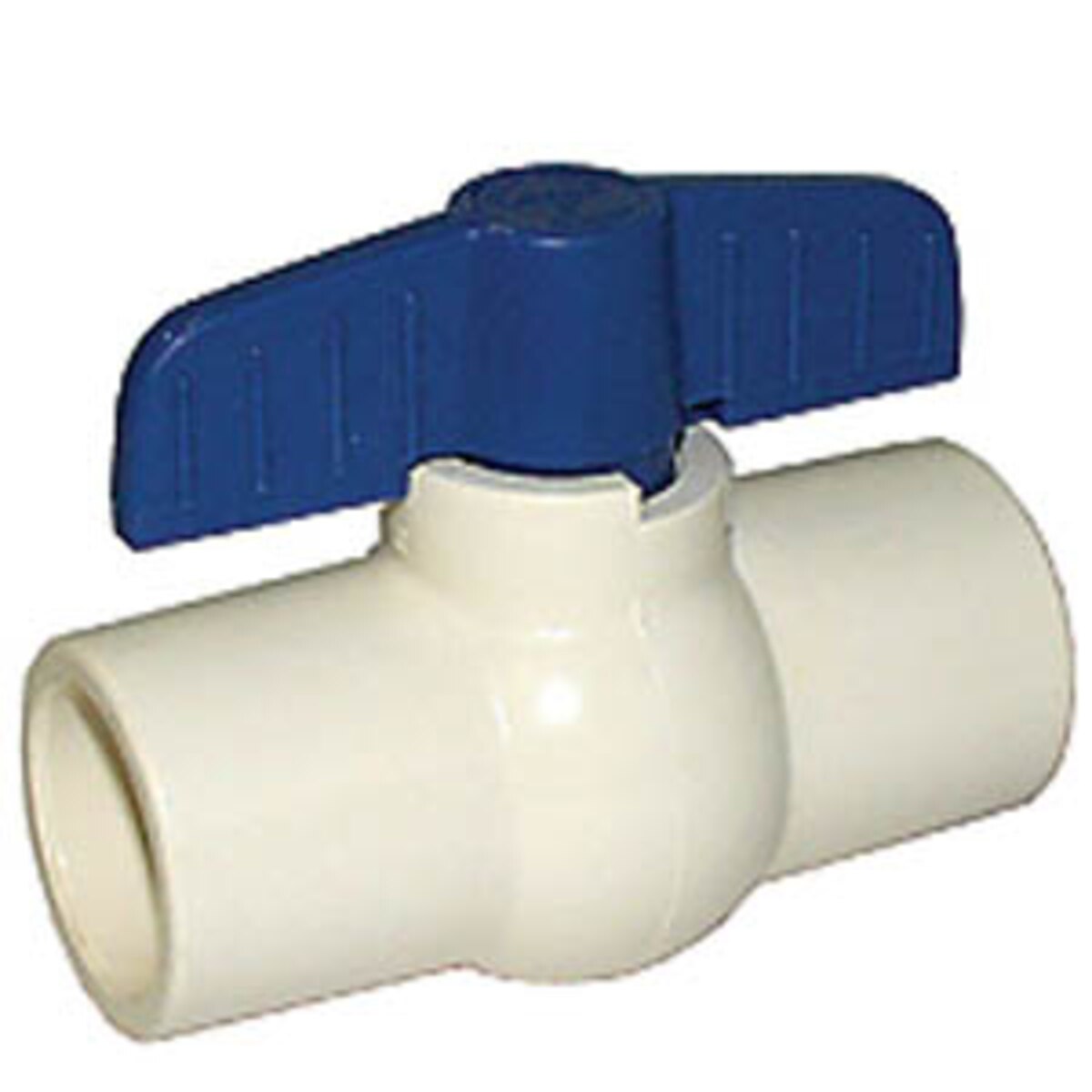

1/2" CPVC BALL VALVE

(0)No Reviews yet

Details

Ball Valve
Type Compact
Nominal Size 1/2 Inch x 1/2 Inch
End Connection Solvent x Solvent
End to End Distance 2.69 Inch
Ball Material ASTM D1784, Class 23447 CPVC
Body Material CPVC
Stem Material ASTM D1784, Class 23447 CPVC
Seat Material Dupont Non Stick COVC
Handle Material Impact Grade CPVC
Port Type Full
Temperature Rating 180 Deg F
Pressure Rating 150 PSI
Inclusions/Features Commercial Grade Stem O-Ring/Handle Retaining Screw
Application Solvent-Weld Installation onto CTS CPVC Tubing
Applicable Standard NSF/ANSI 61 Annex G, ASTM F1970/D2846, ISO
