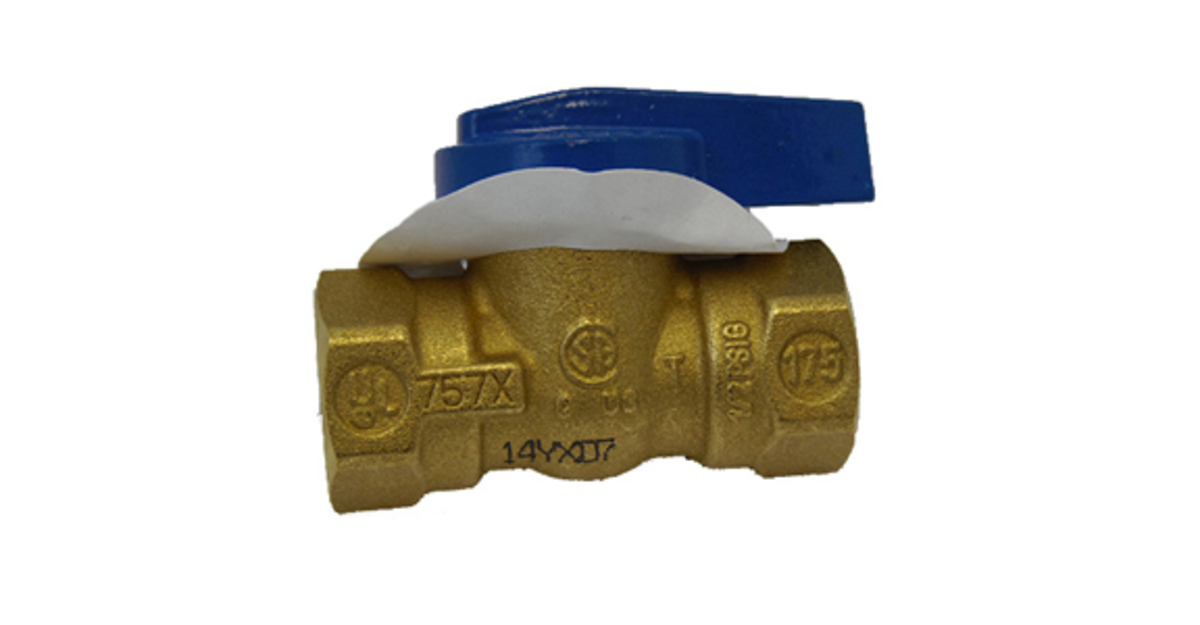

3/4 GAS BALL VALVE WITH SIDE TAP
Details
Gas Ball Valve
Type 1-Piece
Actuation Type 1/4 Turn, Lever Handle
Nominal Size 3/4 Inch x 3/4 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 2.68 Inch
Ball Material ASTM B124 UNS C37700 Chrome Plated Forged Brass
Body Material ASTM B124 UNS C37700 Forged Brass
Stem Material ASTM B124 UNS C37700 Forged Brass
Seat Material Type 7PB496 ASTM D2000 Nitrile Rubber
Seal Material Type 7PB496 ASTM D2000 Nitrile Rubber Stem O-Ring
Handle Material Die-Cast Coated Aluminum
Pressure Rating 175 PSI CWP
Inclusions/Features Grease-Seal Blowout Common to Plug-Type Gas Cock, Chrome Plated Ball and Soft Seats Resist Contamination Build-Up, Synthetic Fiber Thrust Washer, Forged Brass Stem Retainer Bushing, Phosphor-Bronze Wire Stem Retainer Clip, Sidetap
Application Residential and Commercial
Applicable Standard ANSI/ASME B1.20, ANSI Z21.15, UL, CSA (Canada and US), ISO 9002
