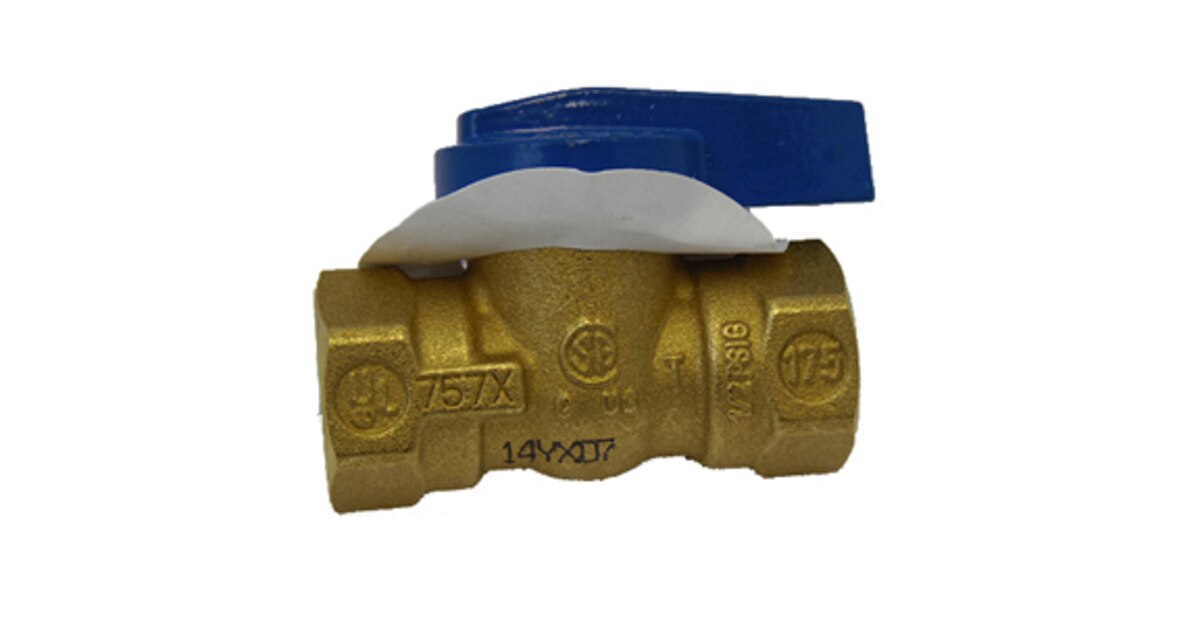

3/4" ONE-PIECE BALL GASCOCK BLUE
Details
Gas Ball Valve
Type 1-Piece
Actuation Type 1/4 Turn Handle
Nominal Size 3/4 Inch x 3/4 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 2.6 Inch
Ball Material ASTM B124 UNS C37700 Chrome Plated Forged Brass
Body Material ASTM B124 UNS C37700 Forged Brass
Stem Material ASTM B124 UNS C37700 Forged Brass
Seat Material Type 7PB496 ASTM D2000 Nitrile Rubber
Handle Material Commercial Grade, Die-Cast Coated Aluminum
Pressure Rating 175 PSI
Inclusions/Features Commercial Grade Synthetic Fiber Thrust Washer, ASTM B124 UNS C377007 7PB496 ASTM D2000 Forged Brass Stem Retainer Brushing, Stem O-Ring Nitrile (NBR) Rubber, ASTM B159 Phosphor-Bronze Wire Stem Retainer Clip, Zinc Plated Steel Handle Screw
Application Residential and Commercial Gas Installation
Applicable Standard ANSI/ASME B1.20/B16.44, NSI Z21.15, UL
Type 1-Piece
Actuation Type 1/4 Turn Handle
Nominal Size 3/4 Inch x 3/4 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 2.6 Inch
Ball Material ASTM B124 UNS C37700 Chrome Plated Forged Brass
Body Material ASTM B124 UNS C37700 Forged Brass
Stem Material ASTM B124 UNS C37700 Forged Brass
Seat Material Type 7PB496 ASTM D2000 Nitrile Rubber
Handle Material Commercial Grade, Die-Cast Coated Aluminum
Pressure Rating 175 PSI
Inclusions/Features Commercial Grade Synthetic Fiber Thrust Washer, ASTM B124 UNS C377007 7PB496 ASTM D2000 Forged Brass Stem Retainer Brushing, Stem O-Ring Nitrile (NBR) Rubber, ASTM B159 Phosphor-Bronze Wire Stem Retainer Clip, Zinc Plated Steel Handle Screw
Application Residential and Commercial Gas Installation
Applicable Standard ANSI/ASME B1.20/B16.44, NSI Z21.15, UL
