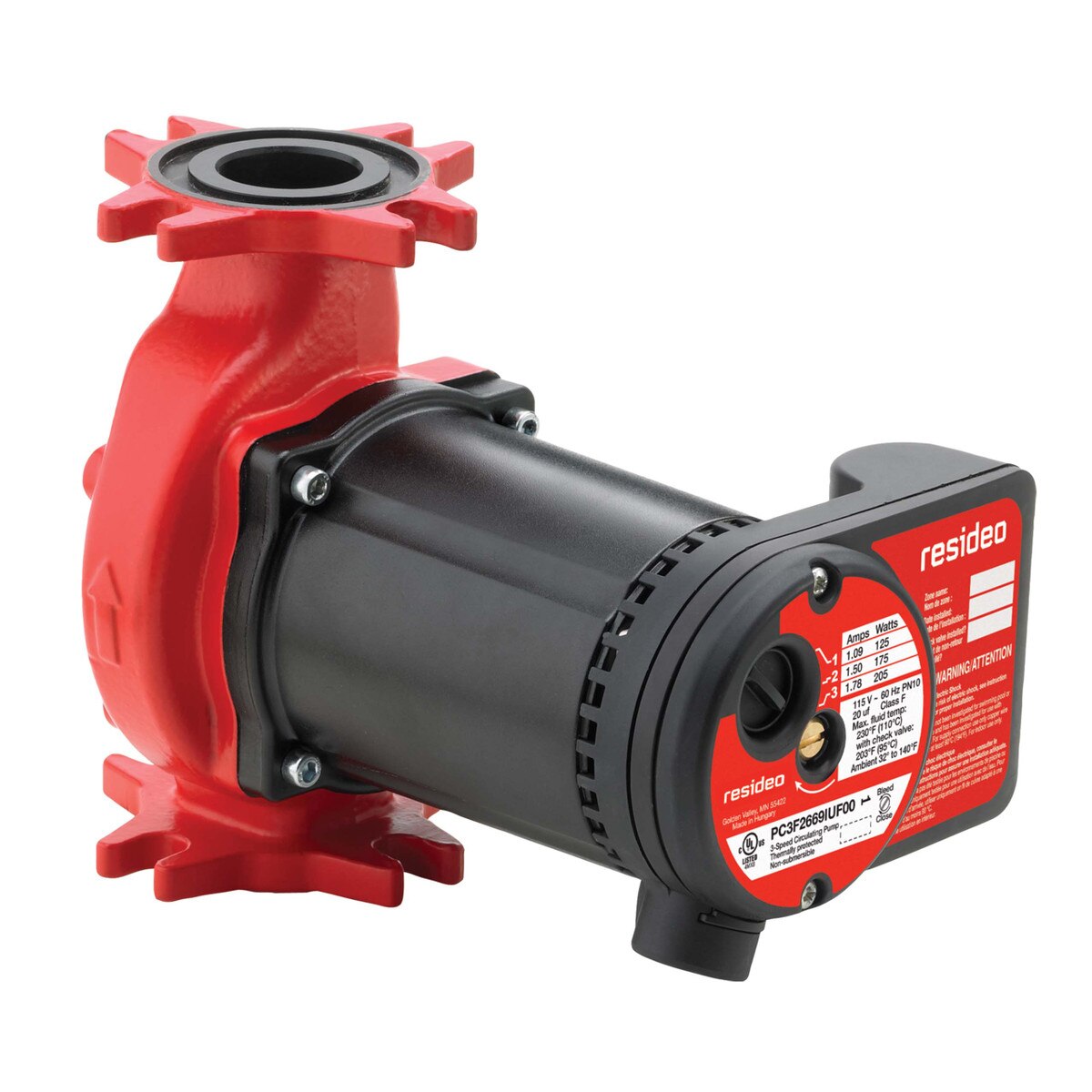

PC3F2699IUF00 3 SPEED CIRCULATING PUMP 34 GPM
Details
Hydronic Circulating Pump
Type 3-Speed, In-Line
Overall Dimensions 7.75 Inch Length x 6.1 Inch Width x 6.5 Inch Height
Flow Rate 25 GPM
Discharge Head 31 Foot
Casing Material Cast Iron
Shaft Material Ceramic
Impeller Material Polypropylene
Impeller Design Closed Loop
Power Rating 205 Watt
Input Supply Rating 115 Volt AC 60 Hertz 1.78 Amp
Temperature Rating 230 Deg F (Fluid)
Pressure Rating 145 PSI
Motor Type Internal Thermal Overload Protection
Inclusions/Features Internal Thermal Overload Protection, Aluminum Motor Housing, EPDM Rubber O-Ring/Flange Gasket, Ceramic Bearing, Stainless Steel Bearings Plate/Motor Cap
Application Hydronic Heating and Cooling System, Solar System
Applicable Standard UL (Canada and US), CUL
Sound Level 43 Decibel at 3.3 Foot
Bolt Hole Spacing 3-5/32 Inch
Bolt Hole Size 1/2 Inch
Insulation Type Class F
