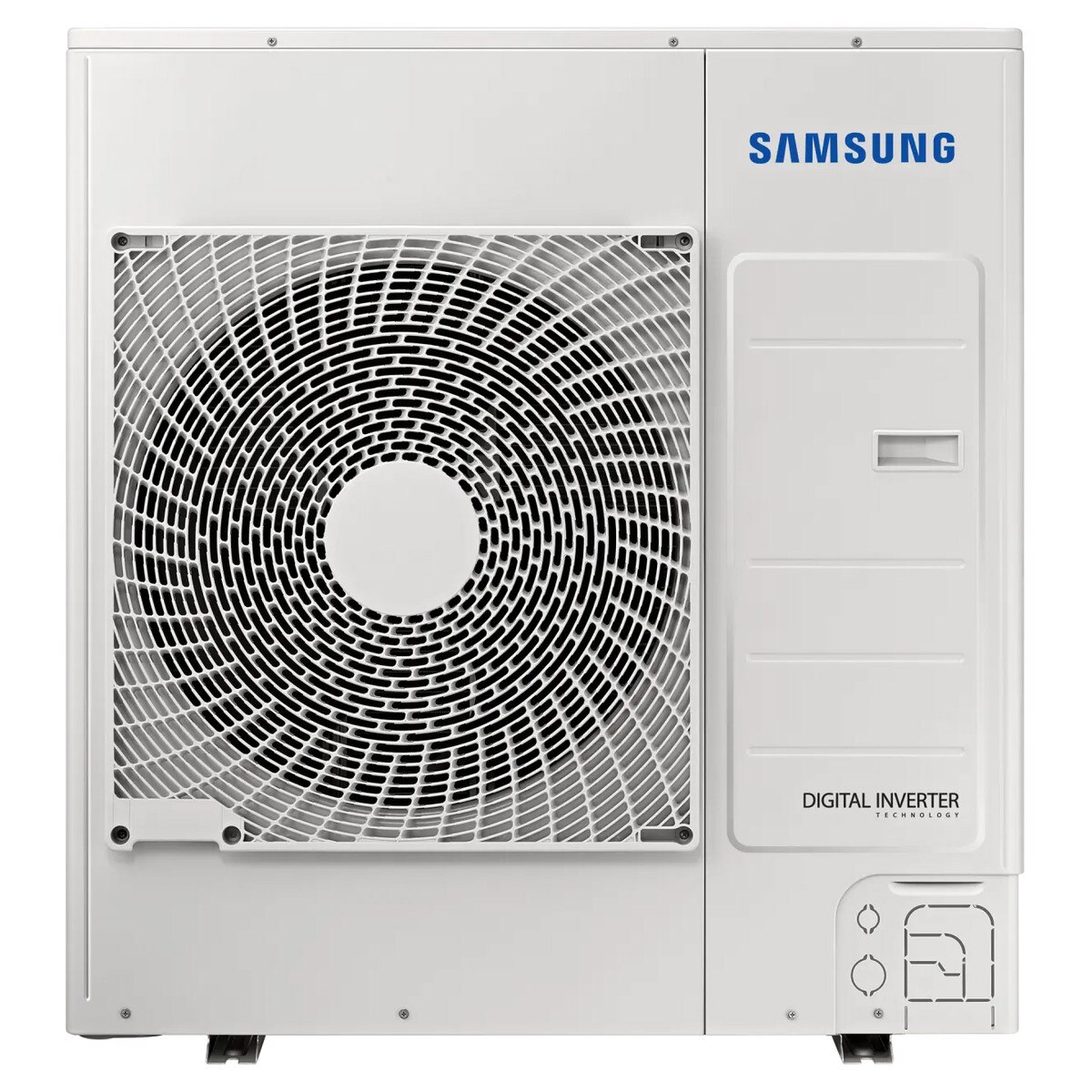

Samsung CXH24UPB Hylex Heat Pump Outdoor Unit - 24K BTU
Please Note: This unit requires the MXD-U000XN Control Kit

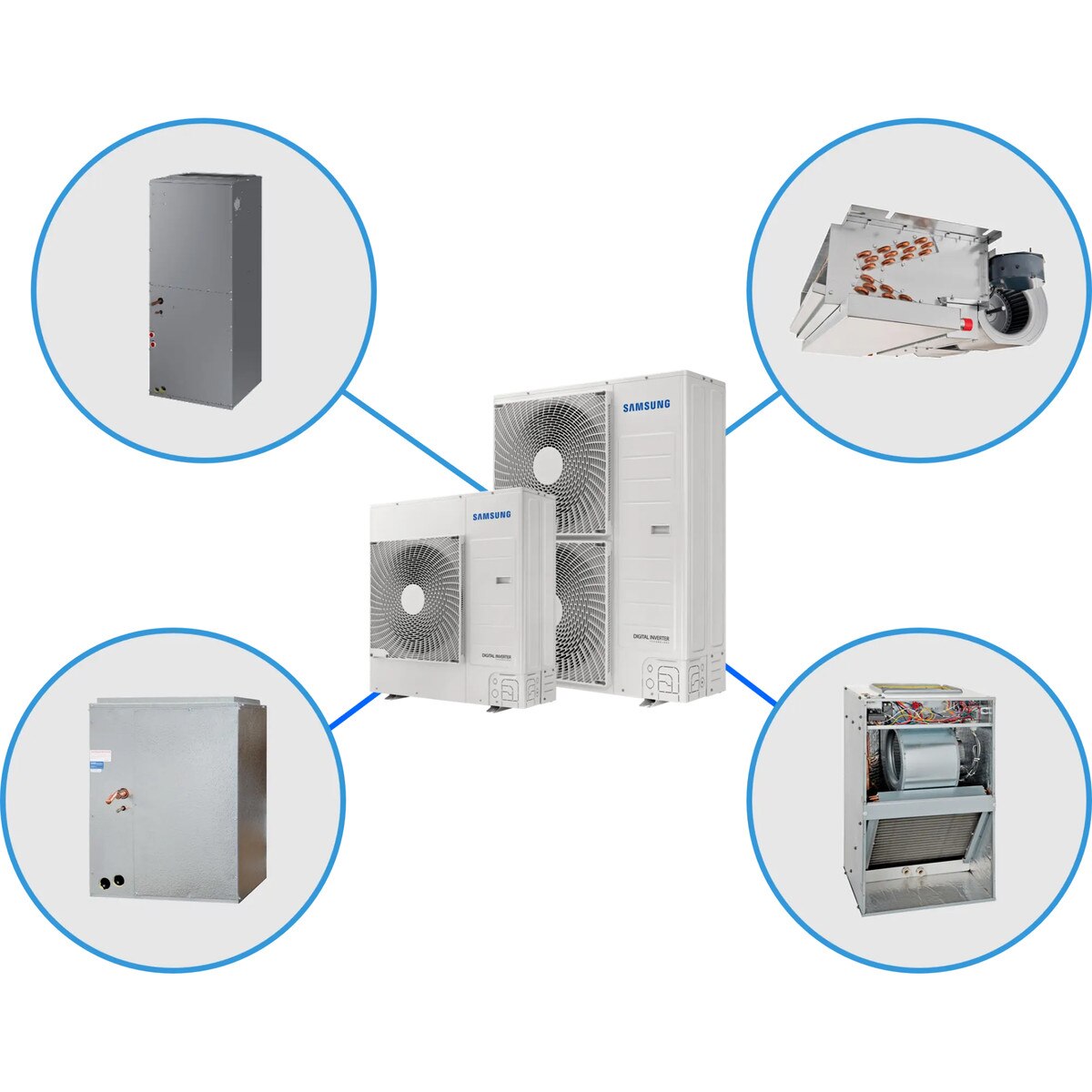

The Hylex from Samsung is compatible with virtually any existing HVAC system out there. Even better, there's practically no additional equipment needed - no new wires, lines sets or piping when replacing a traditional cooling-only or heat pump unitary outdoor unit. This also makes for much faster and easier installation.
Samsungs innovative design also provides three fan speed control of the indoor unit which increases efficiency, optimizes dehumidification, and reduces sound.
With electrification initiatives driving the consumer decision making process, Hylex units were designed for mild to the harshest climates where heat pumps are being installed in place of fossil fuel systems. To promote optimal water drainage during defrost cycles, each unit is equipped with a base pan heater as standard. To ensure the system is configured properly, Samsung has created a web-based tool that asks the installer general system questions and provides a summarized settings report. No special programming tools or computers are required to configure the system.
PRODUCT HIGHLIGHTS:
The Hylex from Samsung is compatible with virtually any existing HVAC system out there. Even better, there's practically no additional equipment needed - no new wires, lines sets or piping when replacing a traditional cooling-only or heat pump unitary outdoor unit. This also makes for much faster and easier installation.
Samsungs innovative design also provides three fan speed control of the indoor unit which increases efficiency, optimizes dehumidification, and reduces sound.
With electrification initiatives driving the consumer decision making process, Hylex units were designed for mild to the harshest climates where heat pumps are being installed in place of fossil fuel systems. To promote optimal water drainage during defrost cycles, each unit is equipped with a base pan heater as standard. To ensure the system is configured properly, Samsung has created a web-based tool that asks the installer general system questions and provides a summarized settings report. No special programming tools or computers are required to configure the system.
PRODUCT HIGHLIGHTS:
- Capacities from 2-5 tons; single and double fan options for 3 ton unit
- Single fan option when compact installations are needed, two-fan option for maximum efficiency
- SEER2 up to 18.5
- HSPF2 up to 9.0
- Connects to any coil with TXV (conditions apply)
- Can be used with a furnace or A-coil for dual fuel applications.
- Configure as heat pump or cooling-only

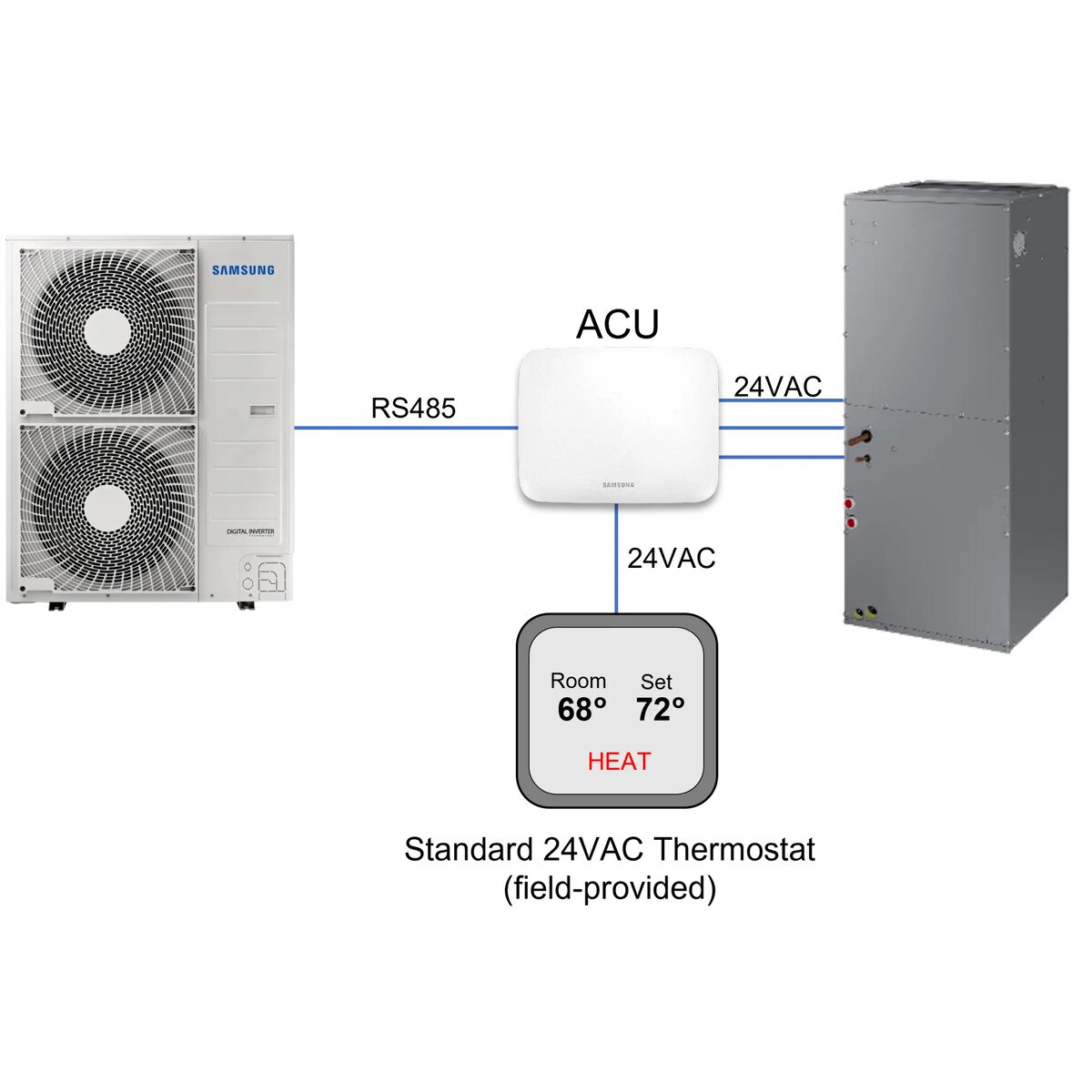

- Compatible with virtually any 24VAC thermostat
- Features full variable speed compressor with wide modulation
- Base pan heater as standard
- Operating range:
- Cooling: -4 Deg F (-20 Deg C) ~ 126 Deg F (52.2 Deg C)
- Heating: Down to -13 Deg F (-25 Deg C)
- 100% rated heating capacity at 5 Deg F (-15 Deg C) outside temperature
| HYLEX DATA | |||
|---|---|---|---|
| MODEL | US CODE | CXH24UPB | |
| MODEL NUMBER | AC024BXUPCH/AA | ||
| PERFORMANCE | CAPACITY | COOLING | 24,000 Btu/h |
| HEATING | 26,000 Btu/h | ||
| CAPACITY RANGE | COOLING | 11,000 - 30,000 Btu/h | |
| HEATING | 7,500 - 35,000 Btu/h | ||
| SEER2 | 16.5 | ||
| EER2 | 10.1 | ||
| HSPF2 (REGION IV) | 8.10 | ||
| COP2 | 3.12 | ||
| POWER | VOLTAGE | ø / V / Hz | 1 / 208-230 / 60 |
| MAX. BREAKER | 30 A | ||
| MIN. CIRCUIT AMPACITY | 24.1 A | ||
| UNIT DIMENSIONS | W X H X D | 37 X 39 5/16 X 13 in. | |
| WEIGHT | 163 lbs | ||
| SOUNDLEVEL | OUTDOOR | COOLING/HEATING (HIGH) | 50 / 52 dB(A) |
| OPERATING TEMPERATURE | OUTDOOR | COOLING | -4 - 125°F -20 - 52°C |
| HEATING | -13 - 75°F -25 - 24°C | ||
| PIPE CONNECTIONS | LIQUID(BRAZE) | 3/8 in. | |
| SUCTION (BRAZE) | MINIMUM | 3/4 in. | |
| STANDARD | 7/8 in. | ||
| MAXIMUM | 1 1/8 in. | ||
| MAX. LINESET LENGTH | 98 ft. | ||
| MAX. VERTICAL SEPARATION | 49 ft. | ||
| REFRIGERANT | TYPE | R410A | |
| FACTORY CHARGE | 7.06 lbs. | ||
| CHARGED FOR | 24.6 ft. | ||
| COMPRESSOR | TYPE | Inverter Driven, Twin BLDC Rotary | |
| CONDENSER FAN | MOTOR | BLDC With Axial Type Fan (2) | |
| CFM (MAX.) | 2,684 | ||
| ACCESSORIES | ACU (AHU CONTROL KIT) - MANDATORY | MXD-U000XN | |
| 3 SPEED INDOOR FAN RELAY KIT (FOR USE WITH PSC MOTORS) | URK-3A | ||
| WIND BAFFLE | FRONT | WBF-6M | |
| BACK | WBB-4M | ||
| HAIL GUARD | HGK-5 | ||
| EXTERNAL CONTACT CONTROL (FOR MANUAL NIGHT QUIET MODE) | MIM-B14 | ||
| WALL BRACKET (FOR OUTDOOR UNIT) | CKN-250 | ||
