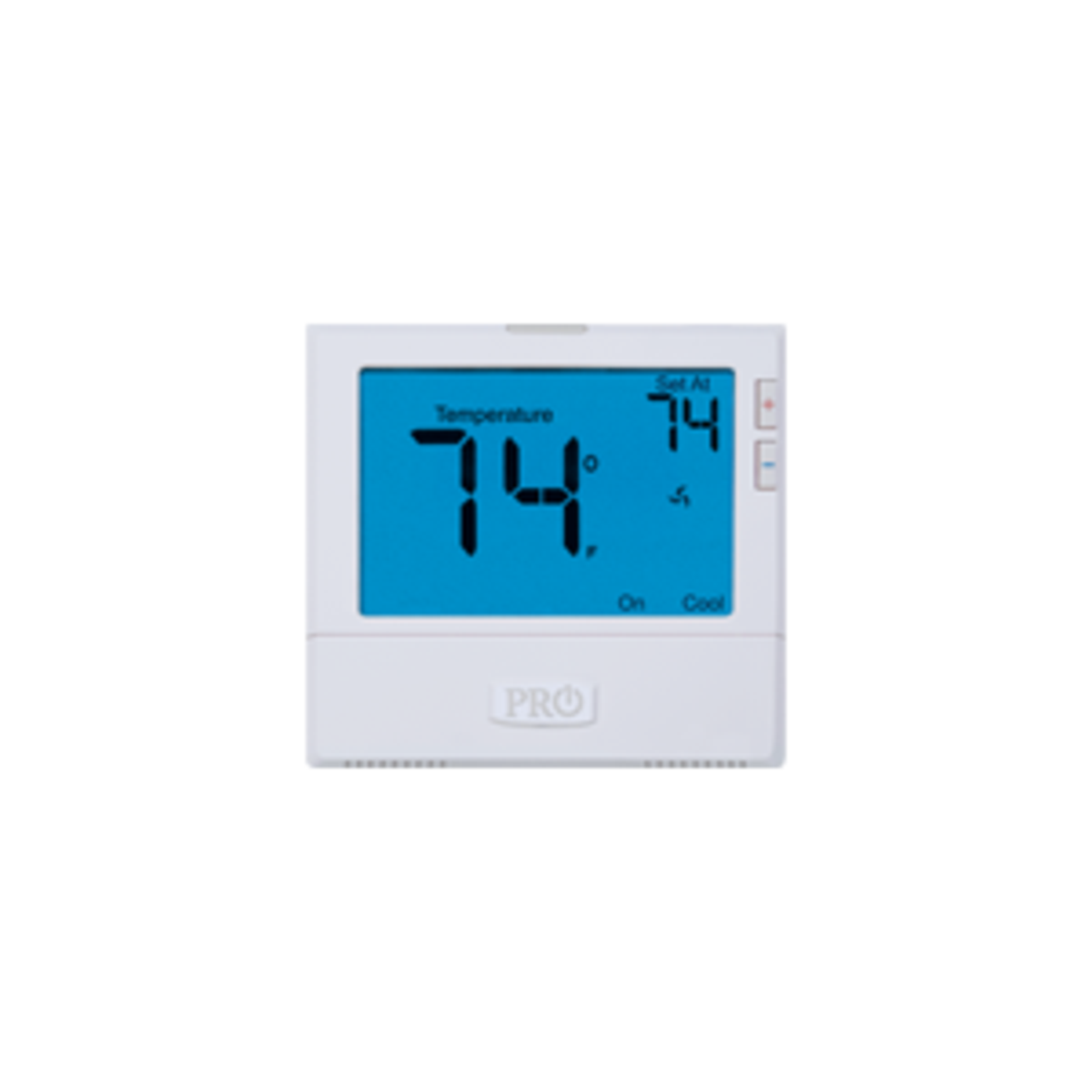

T855 5+1+1 OR 7 DAY 2 HEAT / 2 COOL 8" DISPLAY THERMOSTAT SQUARE

(0)No Reviews yet

Details

Thermostat
Type 7/5-1-1 Day Programmable or Non-Programmable, 2-Heat/2-Cool Conventional, 3-Heat/2-Cool Heat Pump, Universal
Voltage Rating 18 to 30 Volt AC 50/60 Hertz
Current Rating 1.5 Amp (Load Terminal)
Temperature Rating 32 to 105 Deg F (Operating), 41 to 95 Deg F (Display), 44 to 90 Deg F (Control)
Size 4.7 Inch Width x 1.1 Inch Depth x 4.4 Inch Height
Mounting Type Wall/Junction Box
Display Size 8 Square Inch
Accuracy +/-1 Deg F
Operating Humidity 90 Percent (Non-Condensing)
Terminal Designation RC, RH, G, Y, Y2, C, O, B, W/E, W2
Applicable Standard NEC Class II
