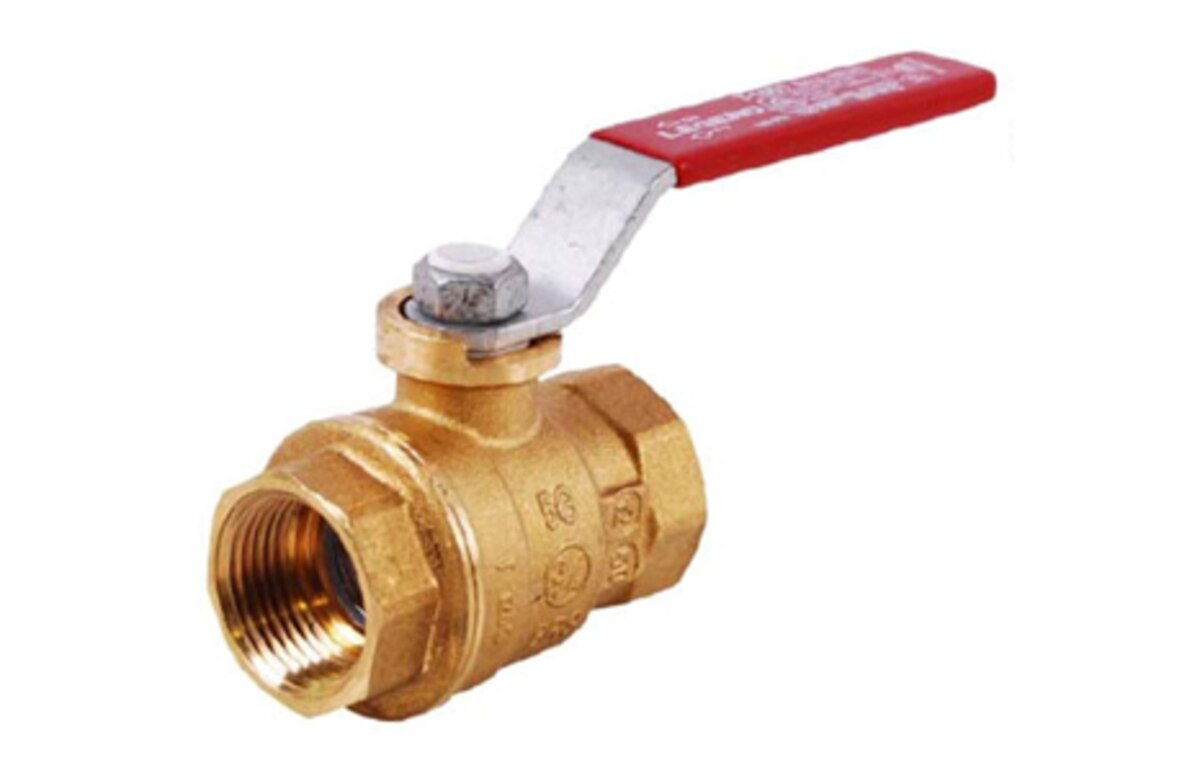

1-1/4" BRASS IRON PIPE BALL VALVE

(0)No Reviews yet
QuantityPrice
1 – 3$34.40
4 +$30.96
SKU: 02600-01060

Details

Ball Valve
Type Traditional
Nominal Size 1-1/4 Inch x 1-1/4 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 3.3 Inch
Ball Material CW510L UNS C28500 Forged Brass
Body Material CW510L UNS C28500 Forged Brass
Stem Material CW510L UNS C28500 Forged Brass
Seat Material Dyneon TFM PTFE
Seal Material Viton Fluorocarbon O-Ring
Handle Material ASTM A510 UNS G10060 Dacromet Coated Steel
Port Type Full
Pressure Rating 600 PSI CWP, 150 PSI (Saturated Steam)
Inclusions/Features TFM PTFE Thrust/Anti-Friction Washer, Forged Brass End Adapter, Tamper-Evident Dacromet Coated Steel Hand Wheel Nut/Locking Device, (2) Fluorocarbon Stem O-Ring
Application Plumbing, Industrial, Commercial, Hydronic System
Applicable Standard ANSI/ASME B1.20, NSF/ANSI 61G, UL, CSA (Canada and US), FM, MSS SP-110, ISO 9002
Lead-Free
