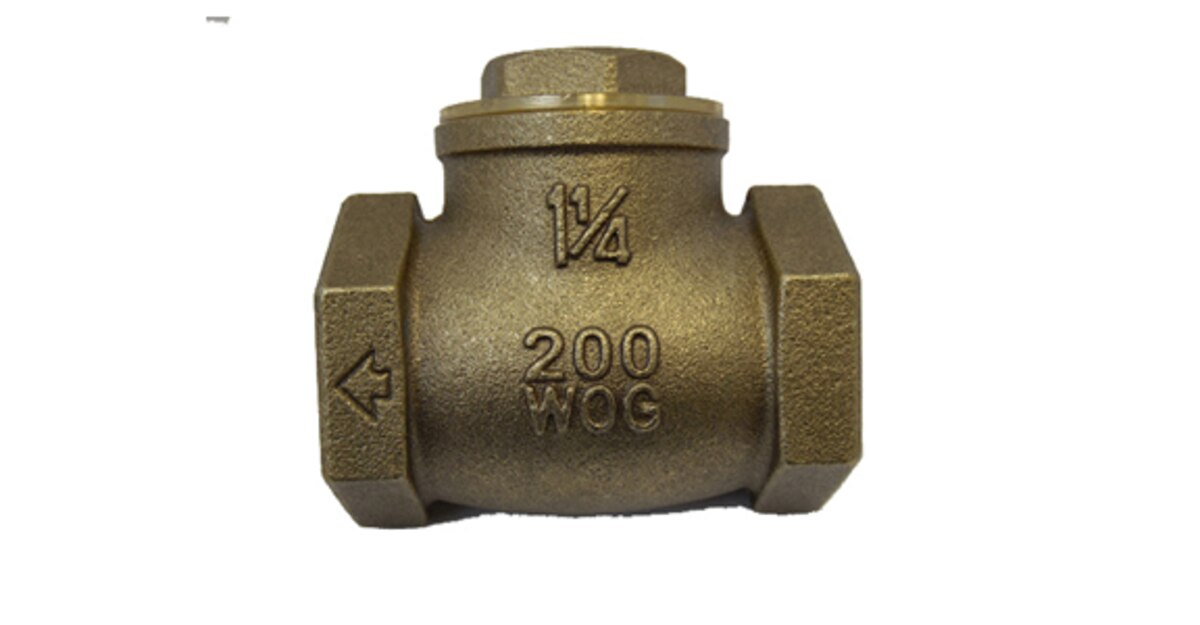

1-1/4" BRASS IRON PIPE CHECK VALVE
Details
Check Valve
Type T-Pattern, Swing
Nominal Size 1-1/4 Inch x 1-1/4 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 3.19 Inch
Body Material UNS C46500 Cast Brass
Disc Material UNS C46500 Cast Brass
Cap Material UNS C46500 Cast Brass
Pressure Rating 200 PSI CWP
Inclusions/Features Commercial Grade Fiber Gasket, UNS C46500 Forged Brass Pin Retaining Screw/Hinge Pin
Application Plumbing, Industrial, Commercial, Hydronic System
Applicable Standard ANSI/ASME B1.20/B16.18, NSF/ANSI 372/61
Lead-Free
Type T-Pattern, Swing
Nominal Size 1-1/4 Inch x 1-1/4 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 3.19 Inch
Body Material UNS C46500 Cast Brass
Disc Material UNS C46500 Cast Brass
Cap Material UNS C46500 Cast Brass
Pressure Rating 200 PSI CWP
Inclusions/Features Commercial Grade Fiber Gasket, UNS C46500 Forged Brass Pin Retaining Screw/Hinge Pin
Application Plumbing, Industrial, Commercial, Hydronic System
Applicable Standard ANSI/ASME B1.20/B16.18, NSF/ANSI 372/61
Lead-Free
