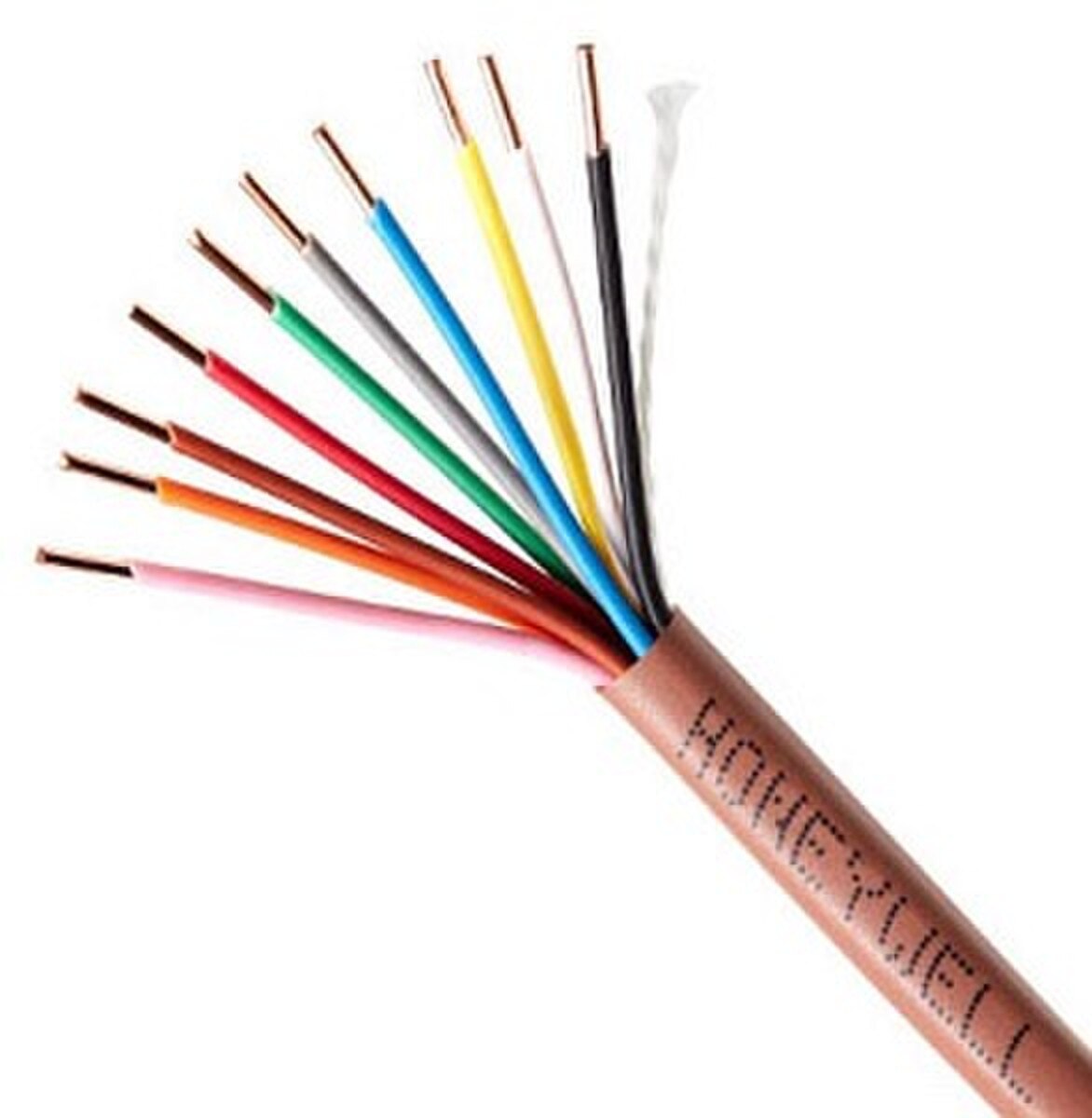

18/10 UL THERMOSTAT CABLE 1810TW
Details
Thermostat Cable
Type CL2, Non-Plenum, Sunlight Resistant
Voltage Rating 150 Volt
Conductor Material Bare Copper
Conductor Size 18 AWG
Number of Conductors 10
Jacket Color Brown
Stranding Solid
Jacket Material PVC
Insulation Material Polypropylene
Color Code Black, Red, White, Green, Brown, Blue, Yellow, Orange, Pink, Gray
Temperature Rating -20 to 60 Deg C
Length (4) 250 Foot
Outer Diameter 0.24 Inch
Package Type Reel
Approval UL 1685, ETL
RoHS Compliant
Insulation Thickness 0.006 Inch
Jacket Thickness 0.015 Inch
Capacitance 22.8 Picofarad per Foot
Impedance 67 Ohm
DC Resistance 6.52 Ohm per 1000 Foot at 20 Deg C
Lay Length 24 Inch
