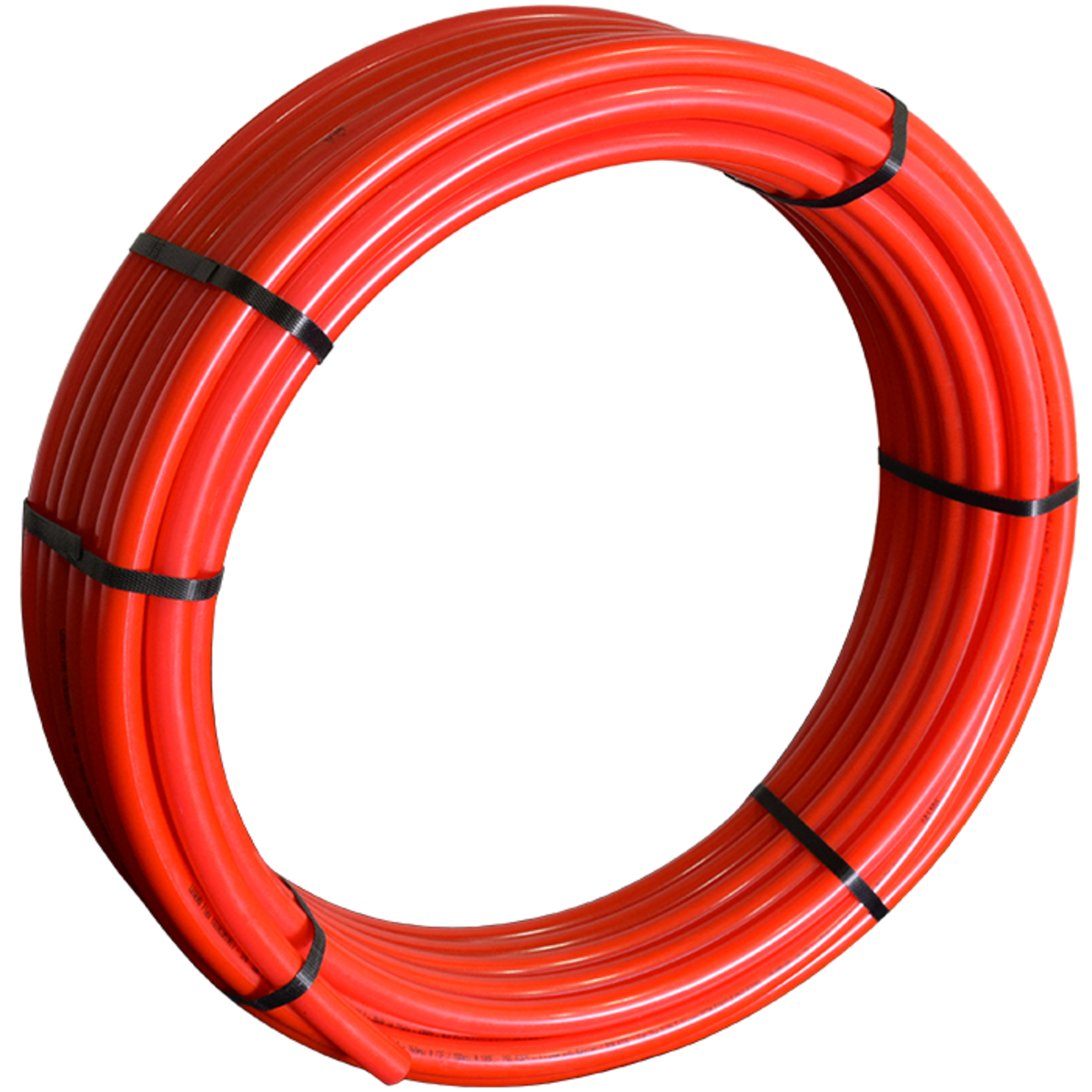

3/4 X 100 PEX-B/OXYGEN 850-151
Details
Tubing
Outside Diameter 3/4 Inch
Wall Thickness 0.097 Inch
Length 100 Foot
End Connection PEX x PEX
Material Cross-Linked Polyethylene
Material Specification ASTM F876/F877
Process Extruded
Pressure Rating 160 PSI at 73 Deg F, 100 PSI at 180 Deg F, 80 PSI at 200 Deg F
Weight 10 Pound
Application Radiant Heating and Cooling, Geothermal, Snow/Ice Melt System
Applicable Standard ASTM F1807/F1960/F2080/F2098, CSA B137.5, ISO 15875, DIN 4726/16892
Capacity 0.0189 GPF
Schedule SDR9
Includes EVOH Oxygen Barrier
Outside Diameter 3/4 Inch
Wall Thickness 0.097 Inch
Length 100 Foot
End Connection PEX x PEX
Material Cross-Linked Polyethylene
Material Specification ASTM F876/F877
Process Extruded
Pressure Rating 160 PSI at 73 Deg F, 100 PSI at 180 Deg F, 80 PSI at 200 Deg F
Weight 10 Pound
Application Radiant Heating and Cooling, Geothermal, Snow/Ice Melt System
Applicable Standard ASTM F1807/F1960/F2080/F2098, CSA B137.5, ISO 15875, DIN 4726/16892
Capacity 0.0189 GPF
Schedule SDR9
Includes EVOH Oxygen Barrier
