3/4 X 500 PEX-B/OXYGEN 850-155
Details

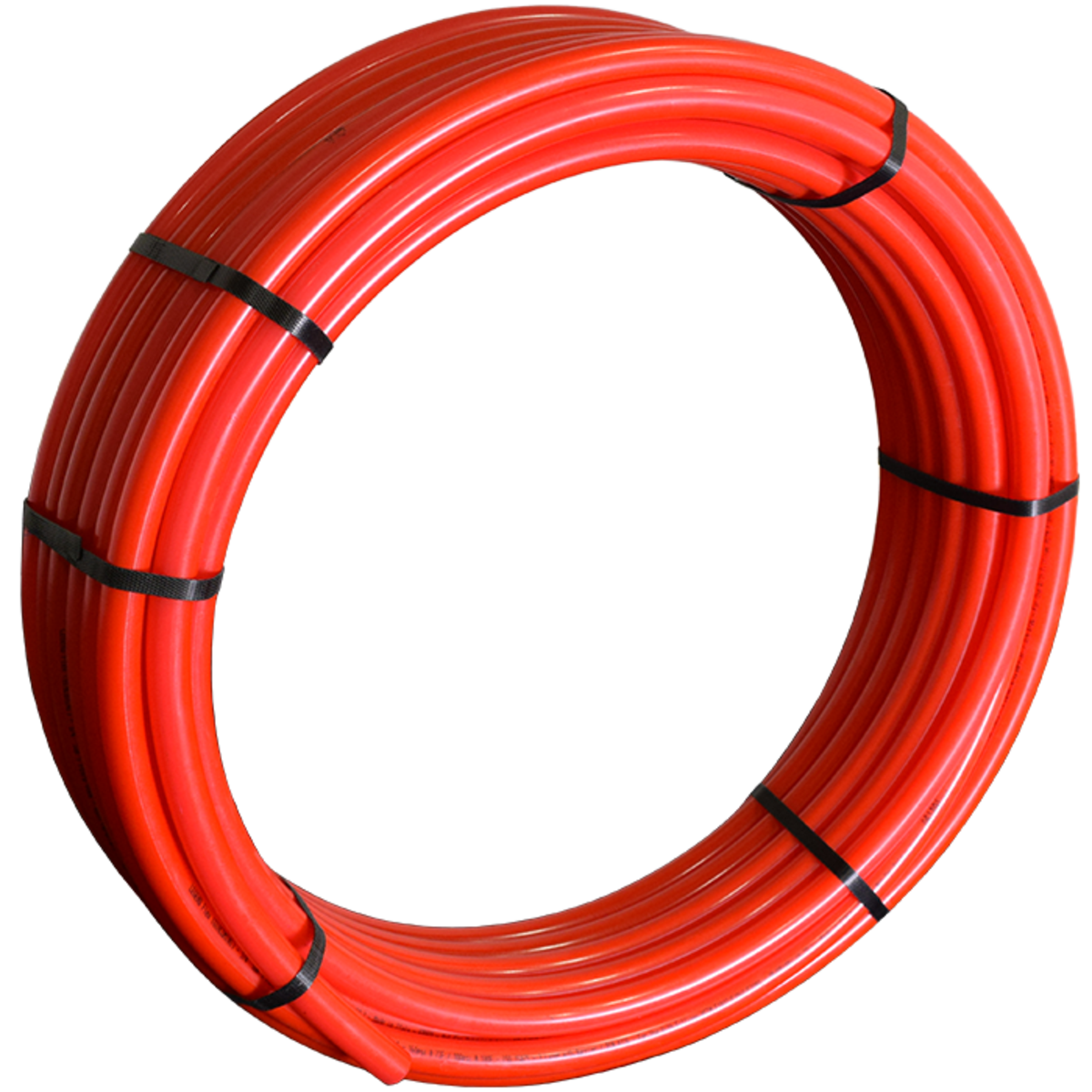

PEX Heating Tube
Outside Diameter 0.875 Inch
Wall Thickness 0.097 Inch
Length 500 Foot
Material Cross Linked Polyethylene
Material Specification ASTM F876/F877
Process Extruded
Pressure Rating 160 PSI at 73 Deg F
Weight 50 Pound
Application Radiant Heating and Cooling, Snow and Ice Melt, Geothermal, Turf Conditioning
Applicable Standard ASTM F2080/F1960
Nominal Tubing Size 3/4 Inch
Type Highly Flexible
Includes Oxygen Barrier
Density 58.6 Pound per Cubic Foot
Thermal Conductivity 0.22 BTU Foot per Hour Square Foot Deg F
Coefficient of Liner Expansion 1.2 Inch per 100 Foot
Modules of Elasticity 78300 PSI
Bend Radius Less than 5x Tubing Outside Diameter
Outside Diameter 0.875 Inch
Wall Thickness 0.097 Inch
Length 500 Foot
Material Cross Linked Polyethylene
Material Specification ASTM F876/F877
Process Extruded
Pressure Rating 160 PSI at 73 Deg F
Weight 50 Pound
Application Radiant Heating and Cooling, Snow and Ice Melt, Geothermal, Turf Conditioning
Applicable Standard ASTM F2080/F1960
Nominal Tubing Size 3/4 Inch
Type Highly Flexible
Includes Oxygen Barrier
Density 58.6 Pound per Cubic Foot
Thermal Conductivity 0.22 BTU Foot per Hour Square Foot Deg F
Coefficient of Liner Expansion 1.2 Inch per 100 Foot
Modules of Elasticity 78300 PSI
Bend Radius Less than 5x Tubing Outside Diameter
