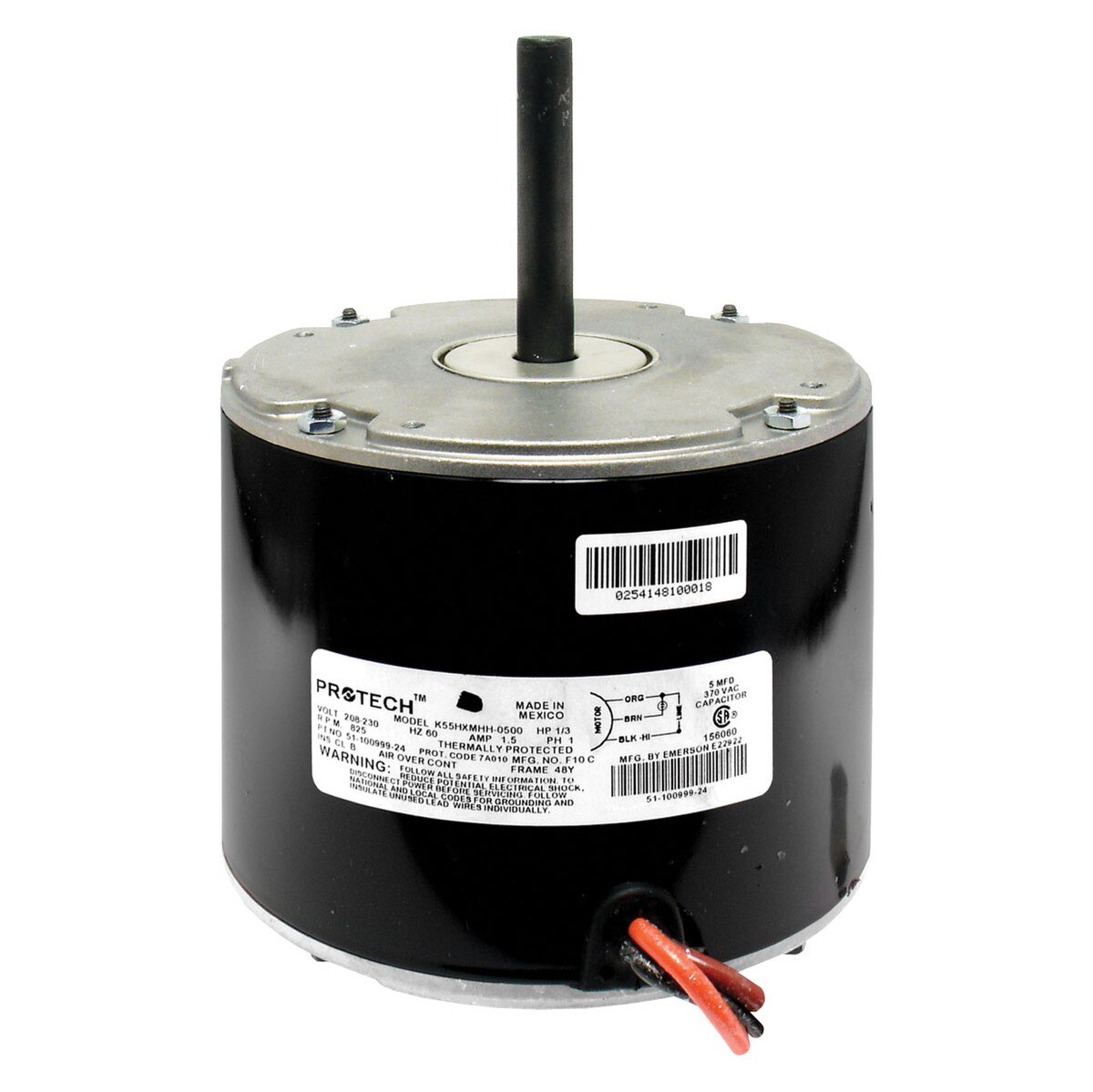

51-102500-10 CONDENSER MOTOR - 1/3 HP 208-230/1/60 (825 RPM/1 SPEED)
Details
Package Air Conditioner Condenser Fan Motor
Item Condenser Fan Motor, 1-Speed, Counter Clockwise, Direct Drive, Outdoor
Size 5-5/8 Inch Diameter x 7-9/16 Inch Length
Mounting Type Shell-Band/End-Boss
Used On Item Package Air Conditioner
Used On Model/Brand RACA13/RACA14/RACA15/RGEA13/RGEA14/RGEA15(AT)/RGEA16/
Voltage Rating 208/230 Volt AC 60 Hertz 1-Phase
Current Rating 1.5 Amp (Full Load)
Power Rating 1/3 HP
Speed Rating 825 RPM
Shaft Dimension 1/2 Inch Diameter x 3 Inch Length
Bearing Type Sleeve
Includes 5 Microfarad 370 Volt Run Capacitor
Application Condenser
Item Condenser Fan Motor, 1-Speed, Counter Clockwise, Direct Drive, Outdoor
Size 5-5/8 Inch Diameter x 7-9/16 Inch Length
Mounting Type Shell-Band/End-Boss
Used On Item Package Air Conditioner
Used On Model/Brand RACA13/RACA14/RACA15/RGEA13/RGEA14/RGEA15(AT)/RGEA16/
Voltage Rating 208/230 Volt AC 60 Hertz 1-Phase
Current Rating 1.5 Amp (Full Load)
Power Rating 1/3 HP
Speed Rating 825 RPM
Shaft Dimension 1/2 Inch Diameter x 3 Inch Length
Bearing Type Sleeve
Includes 5 Microfarad 370 Volt Run Capacitor
Application Condenser
