8A04-1 SINGLE POLE DOUBLE FAN WHITE RODGERS RELAY THROW
Details

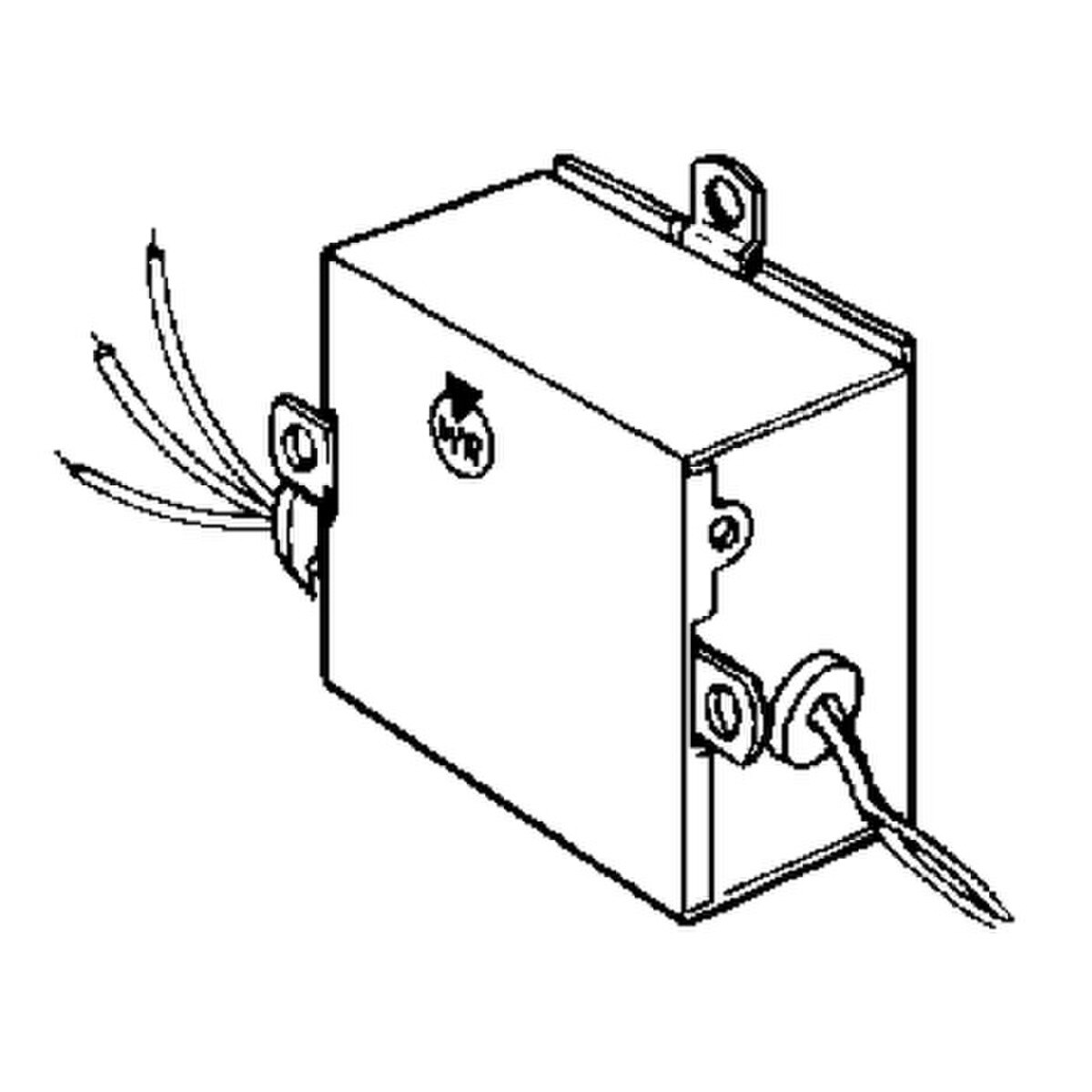

TYPE 8A04-1, FAN RELAY, 24V Coil, SPDT Switch Action
The Type 8A04-1 Fan Relay is for use with low voltage thermostat to provide a 24 volt control circuit for operating a line voltage fan motor or other load. The relay has SPDT switch action to permit use with either single or two-speed motor. Diagrams presented on back of this sheet show various systems that provide the required 24 volt power supply for operating the coil of the Fan Relay.
