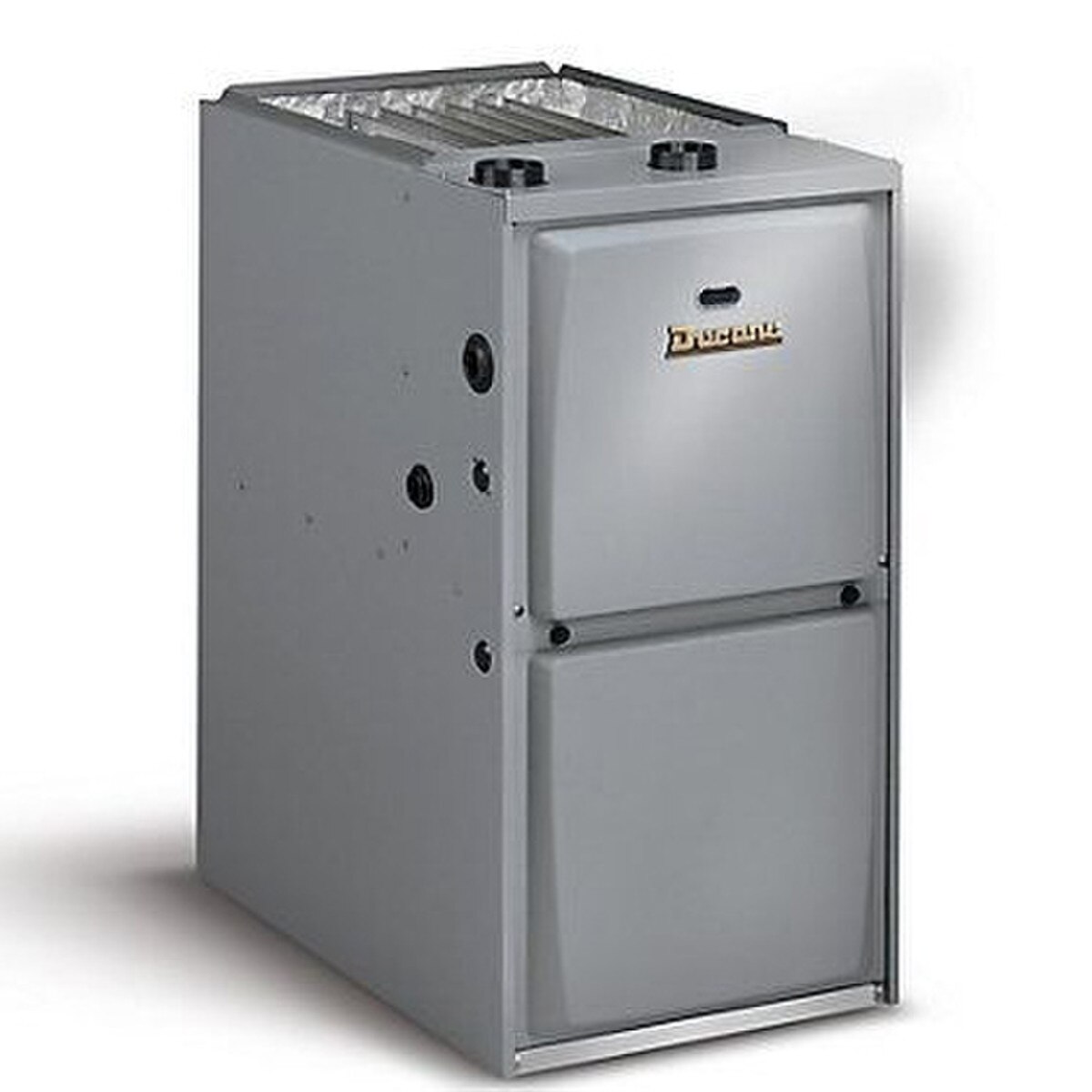

95G1DF070BE16 85W63 95% 70K BTU CONSTANT TORQUE 1 STAGE DOWNFLOW FURNACE
Gas Furnace
Type 1-Stage, Multi-Speed, Downflow
Btu per Hour 70000 (Input), 64000 (Output)
Capacity 895 CFM (Low), 1165 CFM (Medium/Low), 1265 CFM (Medium), 1470 CFM (Medium/High), 1705 CFM (High)
Control Type 40 Volt Amp Transformer
Size 17.5 Inch Width x 28-1/2 Inch Depth x 33 Inch Height
Gas Inlet Size 1/2 Inch
Inclusion/Features Multi-Speed High Efficiency Constant Torque Blower Motor, Easily Removable Slide-Out Blower, Aluminized Steel Heat Exchanger/Inshot Burner, Silicon Nitride Igniter, Enhanced Cooling SEER Rating
AFUE Rating 95 Percent
Cooling Capacity 4 Ton
Input Supply Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 8.4 Amp
Blower Motor Power 3/4 HP
Blower Size 11-1/2 Inch x 10 Inch
Rising Temperature Rating 25 to 55 Deg F
Applicable Standard AHRI, CSA
Type 1-Stage, Multi-Speed, Downflow
Btu per Hour 70000 (Input), 64000 (Output)
Capacity 895 CFM (Low), 1165 CFM (Medium/Low), 1265 CFM (Medium), 1470 CFM (Medium/High), 1705 CFM (High)
Control Type 40 Volt Amp Transformer
Size 17.5 Inch Width x 28-1/2 Inch Depth x 33 Inch Height
Gas Inlet Size 1/2 Inch
Inclusion/Features Multi-Speed High Efficiency Constant Torque Blower Motor, Easily Removable Slide-Out Blower, Aluminized Steel Heat Exchanger/Inshot Burner, Silicon Nitride Igniter, Enhanced Cooling SEER Rating
AFUE Rating 95 Percent
Cooling Capacity 4 Ton
Input Supply Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 8.4 Amp
Blower Motor Power 3/4 HP
Blower Size 11-1/2 Inch x 10 Inch
Rising Temperature Rating 25 to 55 Deg F
Applicable Standard AHRI, CSA
