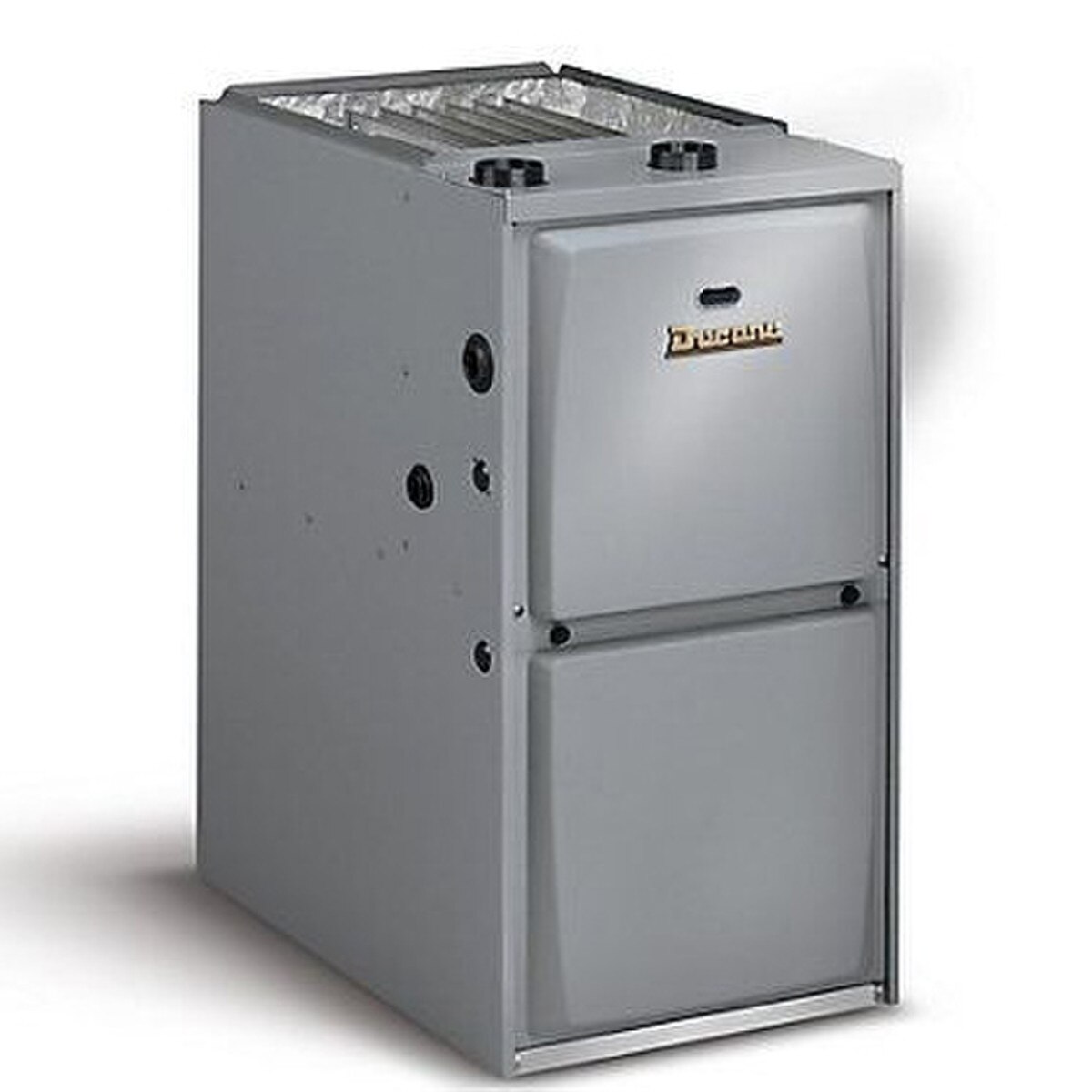

96G2UH090CV12 18L94 96% 90K BTU VARIABLE ECM 2 STAGE UPFLOW / HORIZONTAL FURNACE
Gas Furnace
Type 2-Stage, Upflow/Horizontal
Btu per Hour 90000 (Input), 84000 (Output)
Capacity 1430 CFM (Heating) at 10 to 80 Inch WC, 1360 CFM (Cooling) at 10 to 80 Inch WC
Control Type 40 Volt Amp Transformer
Size 21 Inch Width x 28-1/2 Inch Depth x 33 Inch Height
Gas Inlet Size 1/2 Inch
Inclusion/Features Efficient ECM Variable Speed Blower Motor, Easily Removable Slide-Out Blower, Aluminized Steel Primary/Stainless Steel Secondary Heat Exchanger, Aluminized Steel Shot Burner
AFUE Rating 95 Percent
Cooling Capacity 3 Ton
Input Supply Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 7.7 Amp
Motor Type Variable Speed
Blower Motor Power 1/2 HP
Blower Size 10 Inch x 9 Inch
Rising Temperature Rating 60 to 90 Deg F (High Fire)
Applicable Standard AHRI, CSA
