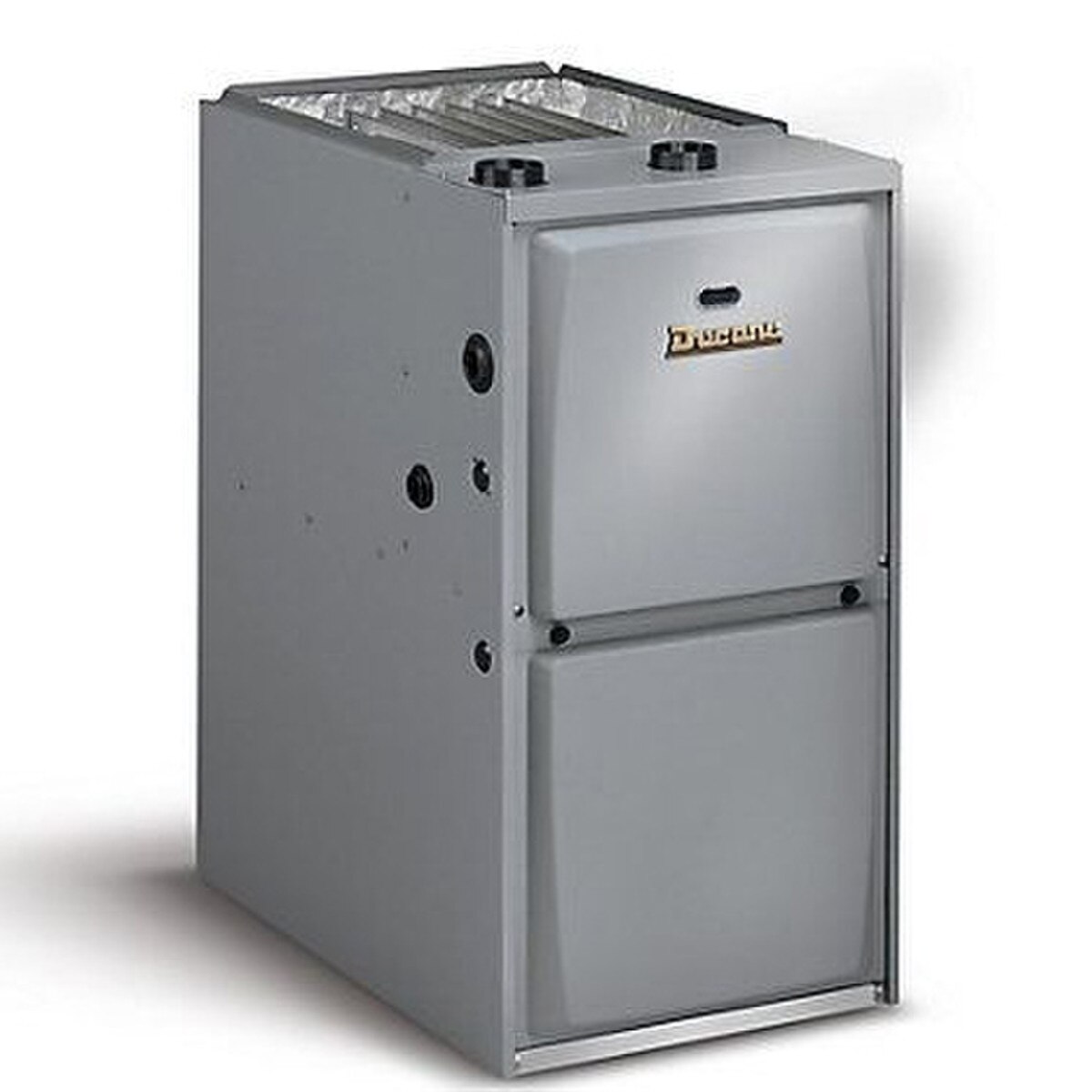

96G2UH135DV20 18L98 96% 135K BTU VARIABLE ECM 2 STAGE UPFLOW / HORIZONTAL FURNACE
Gas Furnace
Type 2-Stage, Upflow/Horizontal
Btu per Hour 135000 (Input), 126000 (Output)
Capacity 2080 CFM (Heating) at 10 to 80 Inch WC, 1955 CFM (Cooling) at 10 to 80 Inch WC
Control Type 40 Volt Amp Transformer
Size 24.5 Inch Width x 28-1/2 Inch Depth x 33 Inch Height
Gas Inlet Size 1/2 Inch
Inclusion/Features Efficient ECM Variable Speed Blower Motor, Easily Removable Slide-Out Blower, Aluminized Steel Primary/Stainless Steel Secondary Heat Exchanger, Aluminized Steel Shot Burner
AFUE Rating 95 Percent
Cooling Capacity 5 Ton
Input Supply Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 12.8 Amp
Blower Motor Power 1 HP
Blower Size 11 Inch x 11 Inch
Rising Temperature Rating 45 to 75 Deg F (High Fire)
Applicable Standard AHRI, CSA
