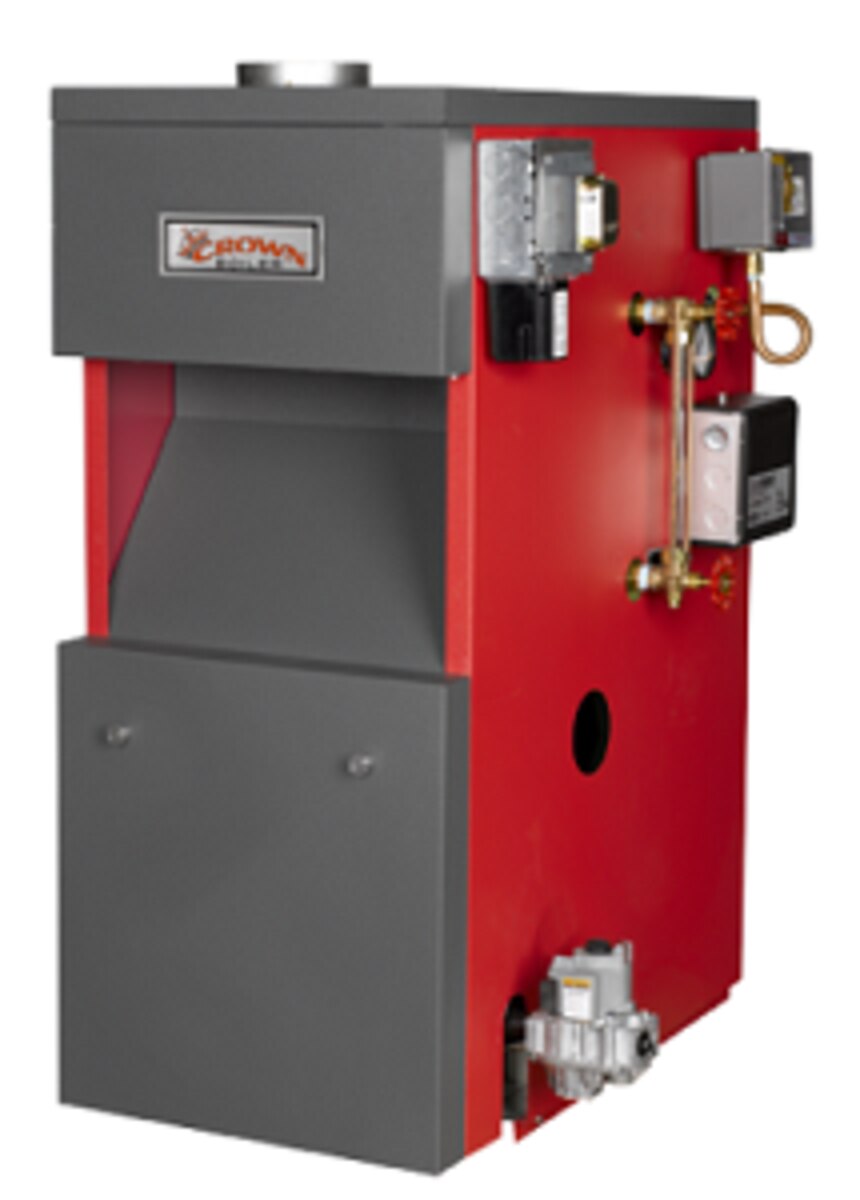

BSI-138E CROWN STEAM BOILER SPARK BERMUDA
The Bermuda Series (BSI) residential/light commercial, cast iron, steam boiler is a fully-packaged, installer-ready product. The integral draft diverter provides a low-profile design allowing the boiler to be installed in areas requiring a low clearance. This atmospheric, gas-fired boiler is for use with a conventional chimney. The Bermuda Series also comes standard with a probe-type low-water cut-off safety control. The Bermuda Series is packaged with natural gas as well as an electronic ignition system.
The heat exchangers are built with steel push nipples below the water line where superior strength and resistance to expansion and contraction are important. Cast iron push nipples above the water line are larger than often found on similar units to provide optimum steam quality.
| AWR SPACE HEATING RATINGS - NATURAL GAS | |
|---|---|
| Crown Model Number | BSI138 |
| Input (MBH) | 138 |
| Heating Capacity (MBH) | 113 |
| AHRI Net Rating Steam (MBH) | |
| Sq. Ft | 354 |
| MBH | 85 |
| AFUE (%) | 82 |
| Number of Sections | 5 |
