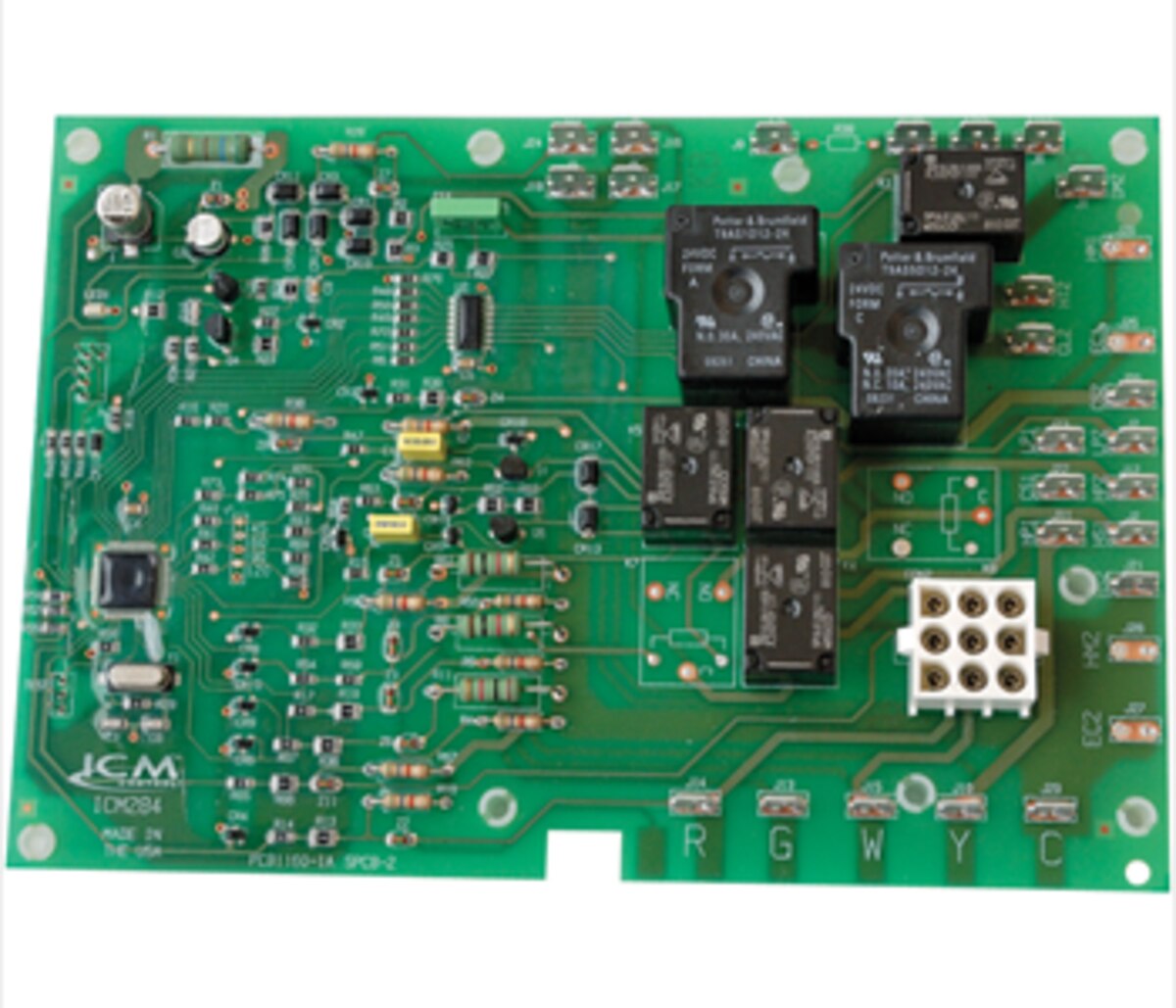

ICM284 REPLACEMENT FURNACE BOARD FITS YORK
Details
Furnace Control Board
Type Control Board, Microprocessor Based
Used On Gas Furnace
Voltage Rating 208 Volt AC 60 Hertz (Line)
Current Rating 5 Amp (Resistive) at 208 Volt AC (Igniter), 30 Amp at 240 Volt AC (Cool Blower), 10 Amp at 250 Volt AC (Heat Blower), 4 Amp at 208 Volt AC (Inducer Motor), 4 Amp at 24 Volt AC (Gas Valve), 5 Amp at 24 Volt AC (Compressor)
Power Rating 2 HP (Cooler Blower), 1/2 HP (Heat Blower)
Size 5.5 Inch Length x 8 Inch Width x 1.5 Inch Height
Temperature Rating -40 to 80 Deg C (Operating), -40 to 85 Deg C (Storage)
Humidity Rating 5 to 95 Percent RH (Non-Condensing) at 55 Deg C
Type Control Board, Microprocessor Based
Used On Gas Furnace
Voltage Rating 208 Volt AC 60 Hertz (Line)
Current Rating 5 Amp (Resistive) at 208 Volt AC (Igniter), 30 Amp at 240 Volt AC (Cool Blower), 10 Amp at 250 Volt AC (Heat Blower), 4 Amp at 208 Volt AC (Inducer Motor), 4 Amp at 24 Volt AC (Gas Valve), 5 Amp at 24 Volt AC (Compressor)
Power Rating 2 HP (Cooler Blower), 1/2 HP (Heat Blower)
Size 5.5 Inch Length x 8 Inch Width x 1.5 Inch Height
Temperature Rating -40 to 80 Deg C (Operating), -40 to 85 Deg C (Storage)
Humidity Rating 5 to 95 Percent RH (Non-Condensing) at 55 Deg C
