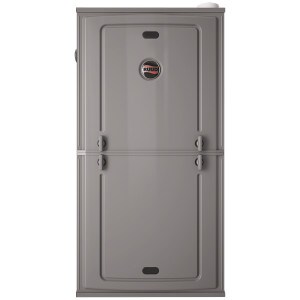

RUUD Endeavor R951T0603A17M4 56K 95% 1-STAGE CT MULTI POS FURNACE
Features and Benefits
- PlusOne Energy Efficiency: ENERGY STAR certified, featuring 95% AFUE across all model sizes
- PlusOne Diagnostics: Industry-first, 7-Segment LED for quick and easy service
- PlusOne Ignition System: Proven Direct Spart Ignition (DSI) for reliability and longevity
- PlusOne Water Management System: Ruud-exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code
| Physical Data and Specifications : | |
|---|---|
| MODEL NUMBERS | R951T 0603A17M4SCAP |
| HIGH FIRE INPUT BTU/HR [kW] | 56,000 [16.41] |
| HEATING CAPACITY BTU/HR [kW] | 53,200 [15.59] |
| HIGH ALTITUDE OUTPUT 10% DERATE [kW] | 47,880 [14.03] |
| BLOWER (D x W) [mm] | 11 x 8 [279 x 203] |
| MOTOR H.P. [W] TYPE | 1/2 [373] 5 Spd Constant Torque |
| MIN. CIRCUIT AMPACITY | 9 |
| MIN. OVERLOAD PROTECTION DEVICE | 15 |
| MAX. OVERLOAD PROTECTION DEVICE | 15 |
| MINIMUM EXT. STATIC PRESSURE (IN. W.C.) [kPa] | .20 [.050] |
| MAXIMUM EXT. STATIC PRESSURE (IN. W.C.) [kPa] | .9 [0.224] |
| HEATING SPEED | MED-LOW |
| COOLING SPEED | HIGH |
| TEMPERATURE RISE HIGH FIRE RANGE IN DEGREES °F [°C] | 35 - 65 [19 - 36] |
| APPROX. SHIPPING WEIGHT (LBS.) [kg] | 128 [58] |
| AFUE | 0.95 |
