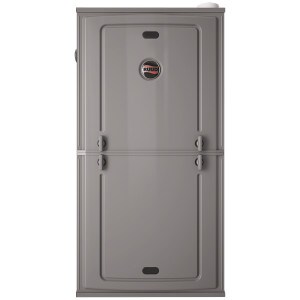

RUUD Endeavor R951V0703A17M4 70K 95% 1-STAGE CCFM MULTI POS FURNACE
Features and Benefits
- PlusOne Energy Efficiency: ENERGY STAR certified, featuring 95% AFUE across all model sizes
- PlusOne Diagnostics: With the Ruud Contractor & EcoNet Apps, built-in EcoNet & Bluetooth technology makes monitoring, troubleshooting and repairing the product easier than ever before
- Dip Switch Free Installation Commissioning via Bluetooth Technology: Seamless final install step without DIP switch configuration using the Ruud Contractor App
- PlusOne Ignition System: Proven Direct Spark Ignition (DSI) for reliability and longevity
- PlusOne Water Management System: Ruud-exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked, and also alerts the contractor via diagnostic code
- Constant CFM Motor: Truly variable speed technology allows for ultimate humidity control, quieter sound levels and year-round energy savings
- Quieter Operation1: A fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace one of the quieter options available
- EcoNet Enabled Furnace: The latest in sensor technology and the EcoNet monitoring system provides a new level of protection, control and energy savings
- Allows on-the-go control and receipt of system alerts by the homeowner via the EcoNet Smart Thermostat and Econet App
| Physical Data and Specifications : | |
|---|---|
| MODEL NUMBERS | R951V0703 A17M4SCAP |
| High Fire Input BTU/HR [kW] | 70,000 [20.51] |
| Heating Capacity BTU/HR [kW] | 66,500 [19.49] |
| High Altitude Output 10% Derate [kW] | 59,850 [17.54] |
| Blower (D x W) [mm] | 11 x 8 [279 x 203] |
| Motor H.P. [W]–Type | 1/2 [373] VS-CT (ECM) |
| Min. Circuit Ampacity | 10 |
| Min. Overload Protection Device | 15 |
| Max. Overload Protection Device | 15 |
| Motor Full Load Amps | 5.8 |
| Minimum Ext. Static Pressure (In. W.C.) [kPa] | .23 [.057] |
| Maximum Ext. Static Pressure (In. W.C.) [kPa] | 1.0 [0.25] |
| Heating CFM [L/s] | 1000 [472] |
| Max. Cooling CFM [L/s] | 1240 [585] |
| Min. Cooling CFM [L/s] | 300 [142] |
| Fan CFM [L/s] | 600 [283] |
| Temperature Rise-High Fire Range In Degrees °F [°C] | 40 - 70 [22 - 39] |
| Approx. Shipping Weight (Lbs.) [kg] | 132 [60] |
| AFUE | 0.95 |
