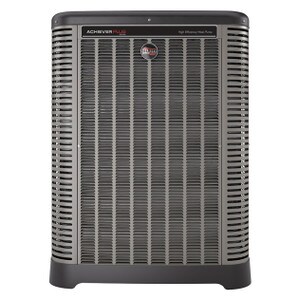

RUUD Endeavor RP15AZ60AJ2NA 5.0 TON 15 SEER2 HP HEAT PUMP 2-STAGE 208/230V
Features and Benefits
- Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity, and greater efficiency when compared to single-stage compressors
- 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
- Inverted Reversing Valve: Allows for faster heat transfer with gravity-assist shifting and reduced joint stress for increased reliability
- PlusOne® Expanded Valve Space: 3 in. – 4 in. – 5 in. service valve space — provides a minimum working area of 27-square inches for easier access
- PlusOne® Triple Service Access: 15" wide, industry-leading corner service access, two fastener, removable corner, and individual louver panels — makes repairs easier and faster
| Physical Data and Specifications : | |
|---|---|
| MODEL NO. | (-)P15AZ 60AJ2NA |
| Nominal Tonnage | |
| Valve Connections | |
| Liquid Line O.D. – in. | 0.375 |
| Suction Line O.D. – in. | 0.875 |
| Refrigerant (R410A) furnished oz. | 220 |
| Compressor Type | 2-stage Scroll |
| Outdoor Coil | |
| Net face area – Outer Coil | 32.5 |
| Net face area – Inner Coil | |
| Tube diameter – in. | 0.375 |
| Number of rows | 1 |
| Fins per inch | 20 |
| Outdoor Fan | |
| Diameter – in. | 26 |
| Number of blades | 3 |
| Motor hp | 1/5 |
| CFM | 5106 |
| RPM | 850 |
| watts | 294 |
| Shipping weight – lbs. | 298 |
| Operating weight – lbs. | 291 |
| Electrical Data | |
|---|---|
| Line Voltage Data (Volts-Phase-Hz) | 208/230-1-60 |
| Maximum overcurrent protection (amps) | 50 |
| Minimum circuit ampacity | 31 |
| Compressor | |
| Rated load amps | 24 |
| Locked rotor amps | 151 |
| Condenser Fan Motor | |
| Full load amps | 1 |
| Locked rotor amps | 2.56 |
| Performance Data @ AHRI Standard Conditions – Cooling | |
|---|---|
| OUTDOOR UNIT | (-)P15AZ60AJ2N |
| AIR HANDLER | RH2TZ6024STANN |
| TOTAL CAPACITY BTU/H [kW] | 57,000 [16.7] |
| NET SENSIBLE BTU/H [kW] | 43,500 [12.7] |
| NET LATENT BTU/H [kW] | 13,500 [4.0] |
| SEER2 | 15.2 |
| EER2 | 11.7 |
| INDOOR CFM [L/S] | 1,800 [849.5] |
| 47 DEGREE HEATING CAPACITY BTU/H [KW] | 57,000 [16.7] |
| 47 DEGREE COP | 4.04 |
| 17 DEGREE HEATING CAPACITY BTU/H [KW] | 42,500 [12.5] |
| 17 DEGREE COP | 3.0 |
| REGION IV HSPF2 | 7.8 |
