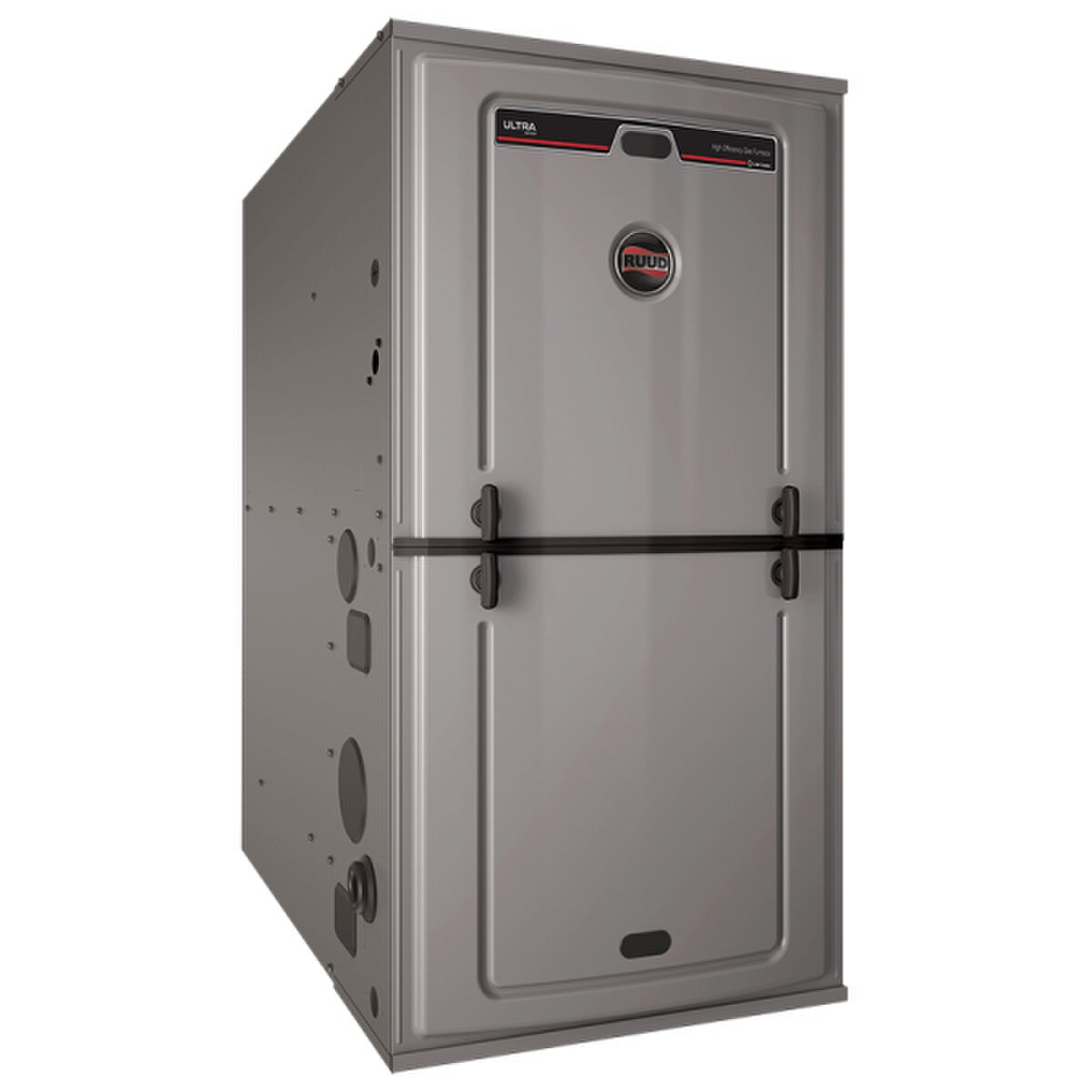

RUUD Endeavor U98MV0703A17UP 70K 98% 2-STAGE ECM MOD UP FURNACE
Features and Benefits
- PlusOne Energy Efficiency: ENERGY STAR certified, featuring 98% AFUE across all model sizes
- PlusOne Diagnostics: Industry first, 7-Segment LED Display makes service calls quick and easy
- PlusOne Ignition System: Proven Direct Spart Ignition (DSI) for reliability and longevity
- PlusOne Water Management System: Exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code
- Modulating Heating Stage: Gradual auto-adjustment from low to 100% of capacity to meet precise comfort requirements
- Constant CFM Motor: Truly variable speed technology allows for ultimate humidity control, quieter sounds levels and year-round energy savings
- Quietest Operation1: A fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace of the quietest available
- EcoNet Enabled Furnace: The latest in sensor technology and the EcoNet monitoring system provides a new level of protection, control and energy savings
- Allows on-the-go control and receipt of system alerts by the homeowner via the EcoNet Smart Thermostat and EcoNet App
| Physical Data and Specifications : | |
|---|---|
| MODEL NUMBER | (-)98V(-)085A521U(-) |
| HIGH FIRE INPUT BTU/HR [kW] | 84,000 [24.61] |
| LOW FIRE INPUT | 33,600 [9.85] |
| HEATING CAPACITY BTU/HR [kW] | 83,000 [24.32] |
| BLOWER (D x W) [mm] | 11 x 10 [279 x 254] |
| MOTOR H. P. [W]-TYPE | 3/4 [559] E. C. M. |
| MIN. CIRCUIT AMPACITY | 12.00 |
| MIN. OVERLOAD PROTECTION DEVICE | 15.00 |
| MAX. OVERLOAD PROTECTION DEVICE | 20.00 |
| MINIMUM EXT. STATIC PRESSURE IN. W.C. [kPa] | .28 [.070] |
| MAXIMUM EXT. STATIC PRESSURE IN. W.C. [kPa] | 1.0 [0.249] |
| MAXIMUM HEATING CFM [L/s] | 1294 [611] |
| COOLING CFM @ .50" W.C. [.124 kPa] E.S.P. [L/s] | 1750 [825] |
| TEMPERATURE RISE- HIGH FIRE °F [°C] | 40 - 70 [22 - 39] |
| TEMPERATURE RISE- LOW FIRE °F [°C] | 20 - 50 [11 - 28] |
| APPROX. SHIPPING WEIGHT (LBS) [kg] | 147.5 [67] |
| AFUE | 0.981 |
