TH6220WF2006 T6 WI-FI 2 HEAT/2 COOL THERMOSTAT
Details
Thermostat
Type 5-1-1/5-2/7 Day/1 Week Programmable, Geolocation/Non-Programmable, Wi-Fi, Auto/Manual Changeover
Color White
Voltage Rating 20 to 30 Volt AC
Current Rating 0.02 to 1 Amp (Heating), 0.02 to 0.5 Amp (Fan)
Switch Type Relay
Temperature Rating 37 to 102 Deg F
Size 4-1/16 Inch Length x 4-1/16 Inch Width x 1-3/32 Inch Depth
Display Type 6.89 Square Inch Touchscreen
Humidity Rating 5 to 90 Percent RH (Non-Condensing)
Power Method Hardwired
Switch Position Heat-Off-Cool-Auto-EM.Heat (System), Auto-On-Circ-Follow Schedule (Fan)
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)

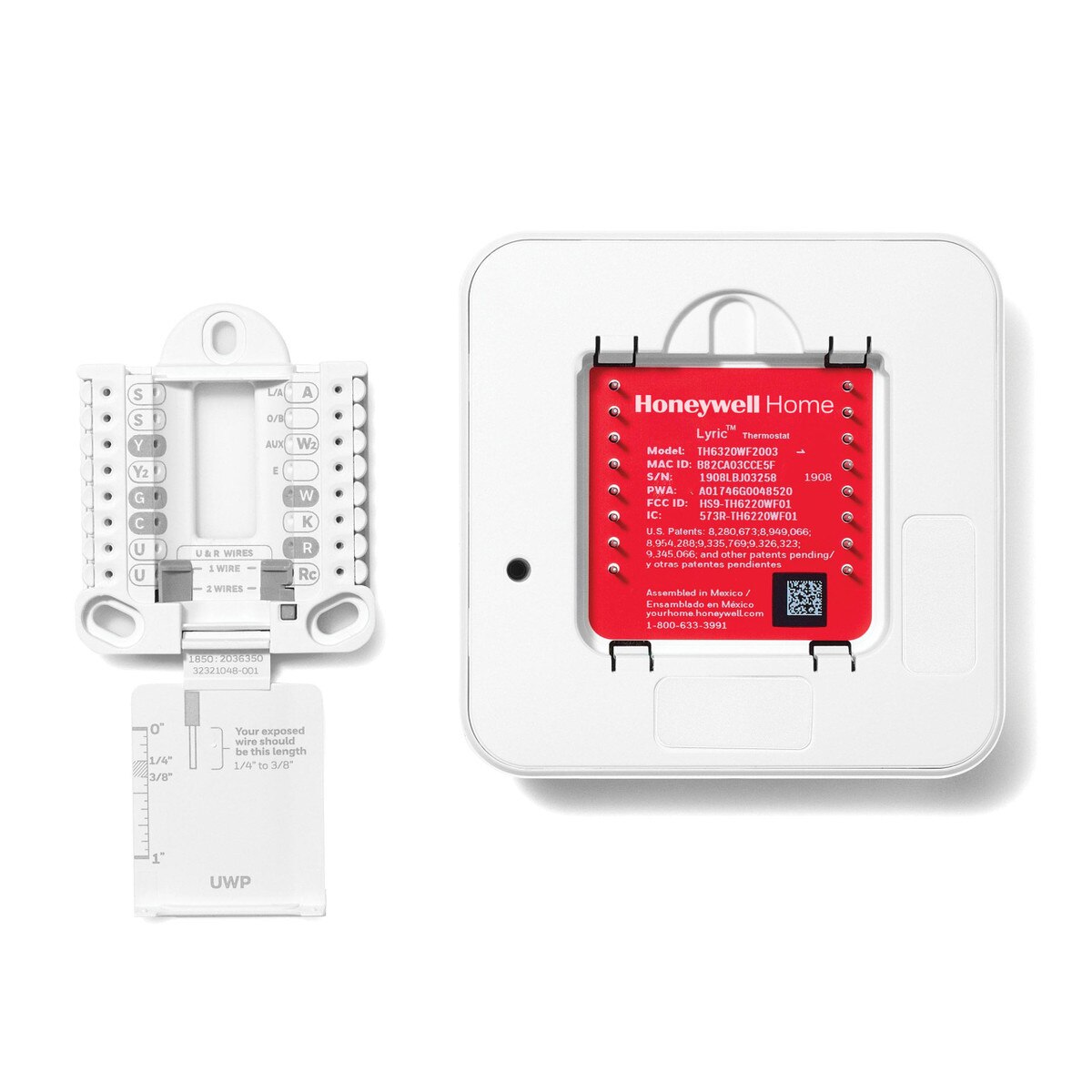

Includes UWP Mounting System, Installation (J-box) Adapter, Small Decorative Cover Plate, Screw and Anchor, Installation Guide, User Guide
Application 24 Volt AC System, Gas, Oil, Electric, Warm Air, Hot Water Coil, Gas Oil, Electric Hydronic/Steam/Gravity System
Type 5-1-1/5-2/7 Day/1 Week Programmable, Geolocation/Non-Programmable, Wi-Fi, Auto/Manual Changeover
Color White
Voltage Rating 20 to 30 Volt AC
Current Rating 0.02 to 1 Amp (Heating), 0.02 to 0.5 Amp (Fan)
Switch Type Relay
Temperature Rating 37 to 102 Deg F
Size 4-1/16 Inch Length x 4-1/16 Inch Width x 1-3/32 Inch Depth
Display Type 6.89 Square Inch Touchscreen
Humidity Rating 5 to 90 Percent RH (Non-Condensing)
Power Method Hardwired
Switch Position Heat-Off-Cool-Auto-EM.Heat (System), Auto-On-Circ-Follow Schedule (Fan)
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Includes UWP Mounting System, Installation (J-box) Adapter, Small Decorative Cover Plate, Screw and Anchor, Installation Guide, User Guide
Application 24 Volt AC System, Gas, Oil, Electric, Warm Air, Hot Water Coil, Gas Oil, Electric Hydronic/Steam/Gravity System
