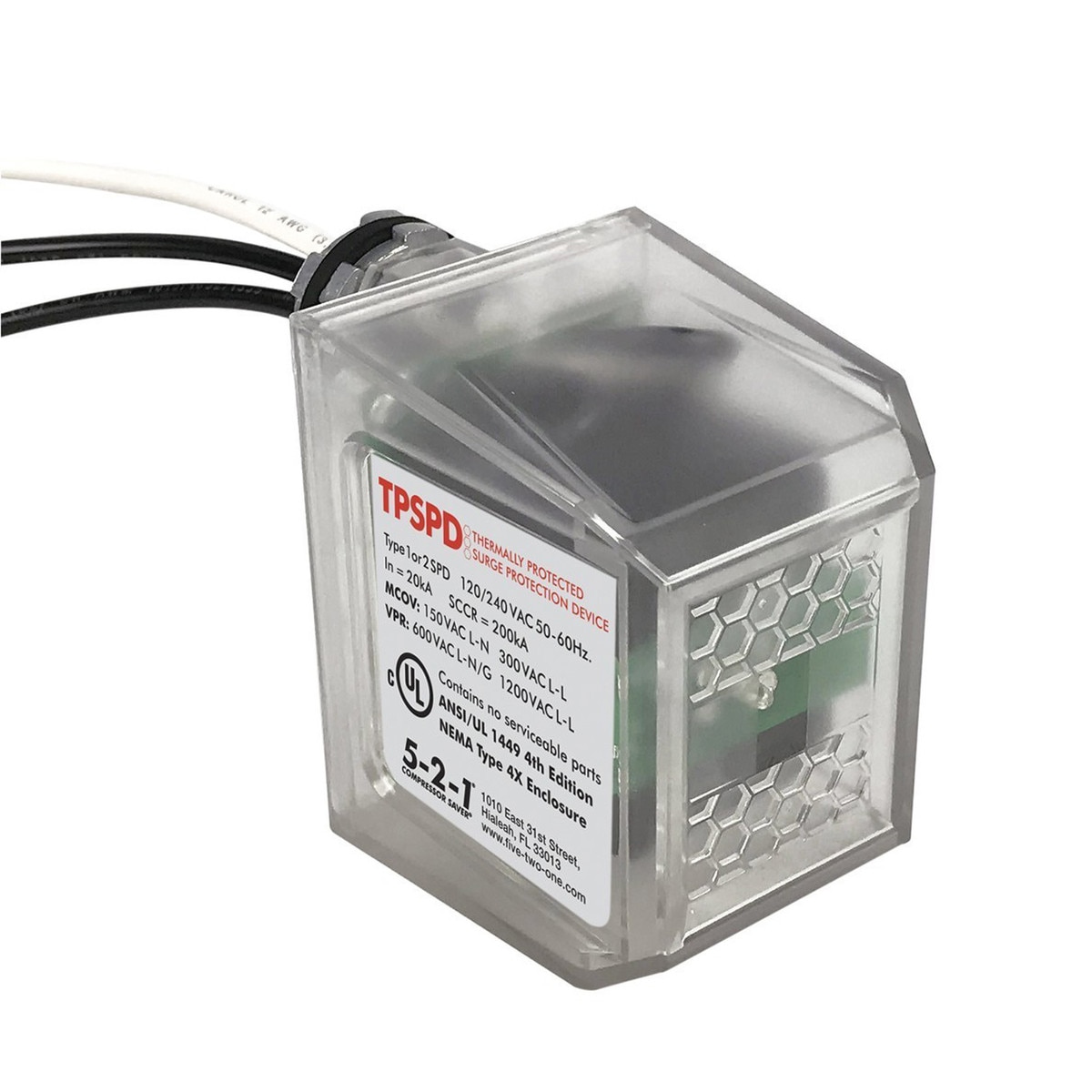

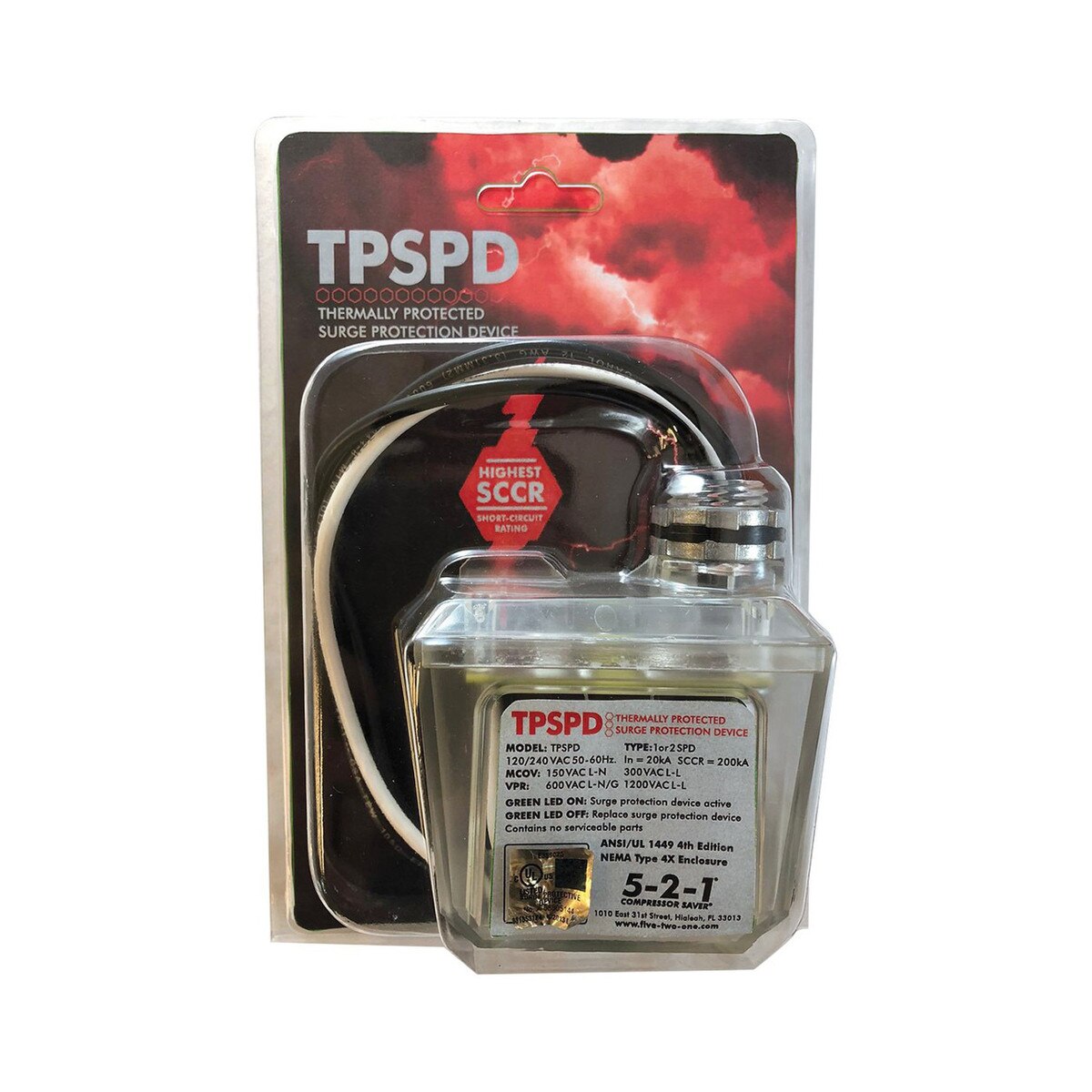

TPSPD 100000 AMPS SURGE PROTECTOR
Details
Surge Protector
Voltage Rating 120/240 Volt AC
Input Current 20 Kiloamp (Nominal Discharge), 200 Kiloamp (Short Circuit Rating)
Frequency Rating 50/60 Hertz
Circuit Configuration Single-Split Phase
Surge Current per Phase 100000 Amp
Operating Temperature 14 to 122 Deg F
Enclosure NEMA 4X
Approval UL 1449 4th Edition, ANSI, UL (Canada and US)
Used On Air Conditioner, Mini-Split, Furnace, Heat Pump, Appliance, Circuit Board, Motor
Voltage Protection Rating 800 Volt AC (L-N/G), 1200 Volt AC (L-L), Maximum Continuous Operating Voltage 150 Volt AC (L-N), 300 Volt AC (L-L)
Voltage Rating 120/240 Volt AC
Input Current 20 Kiloamp (Nominal Discharge), 200 Kiloamp (Short Circuit Rating)
Frequency Rating 50/60 Hertz
Circuit Configuration Single-Split Phase
Surge Current per Phase 100000 Amp
Operating Temperature 14 to 122 Deg F
Enclosure NEMA 4X
Approval UL 1449 4th Edition, ANSI, UL (Canada and US)
Used On Air Conditioner, Mini-Split, Furnace, Heat Pump, Appliance, Circuit Board, Motor
Voltage Protection Rating 800 Volt AC (L-N/G), 1200 Volt AC (L-L), Maximum Continuous Operating Voltage 150 Volt AC (L-N), 300 Volt AC (L-L)
