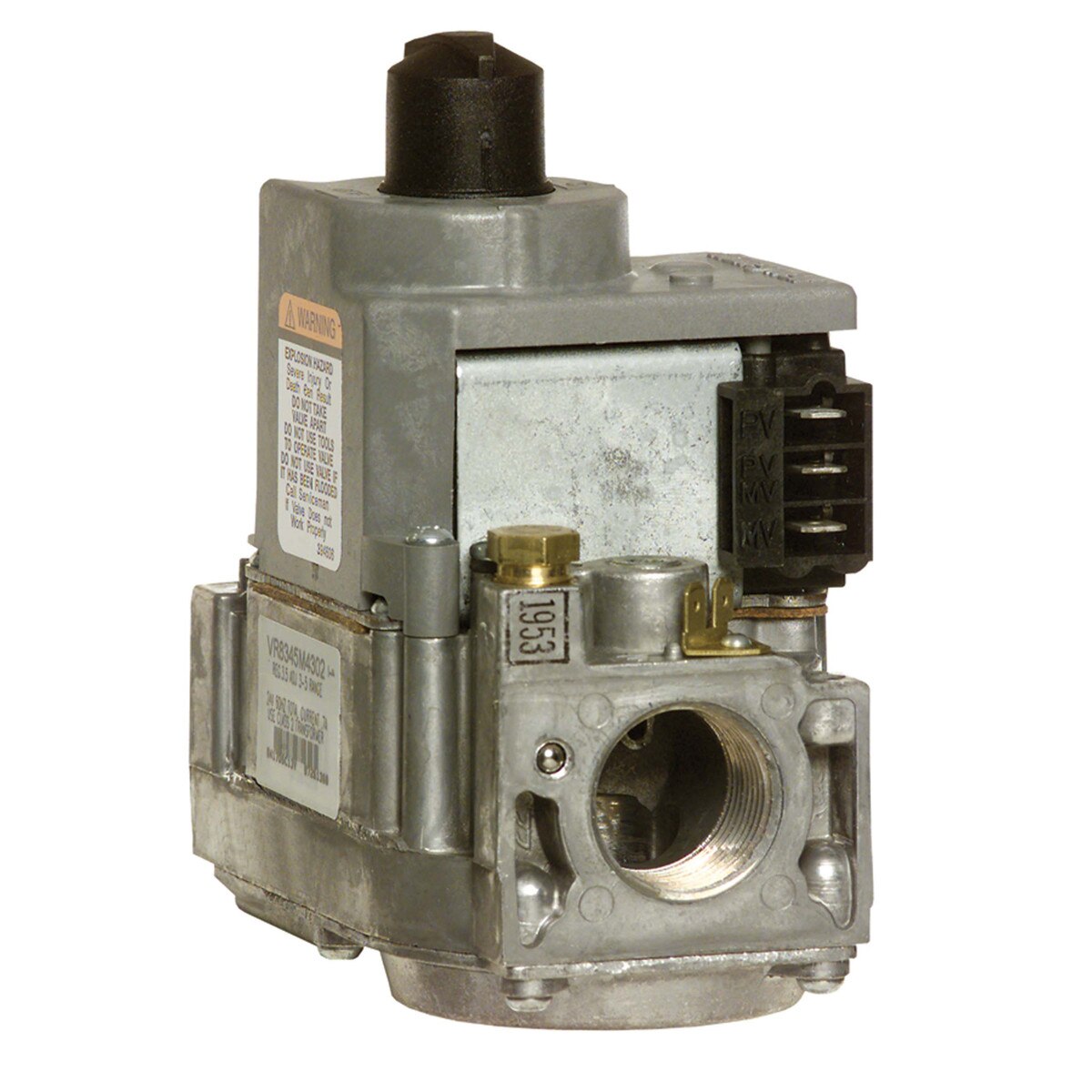

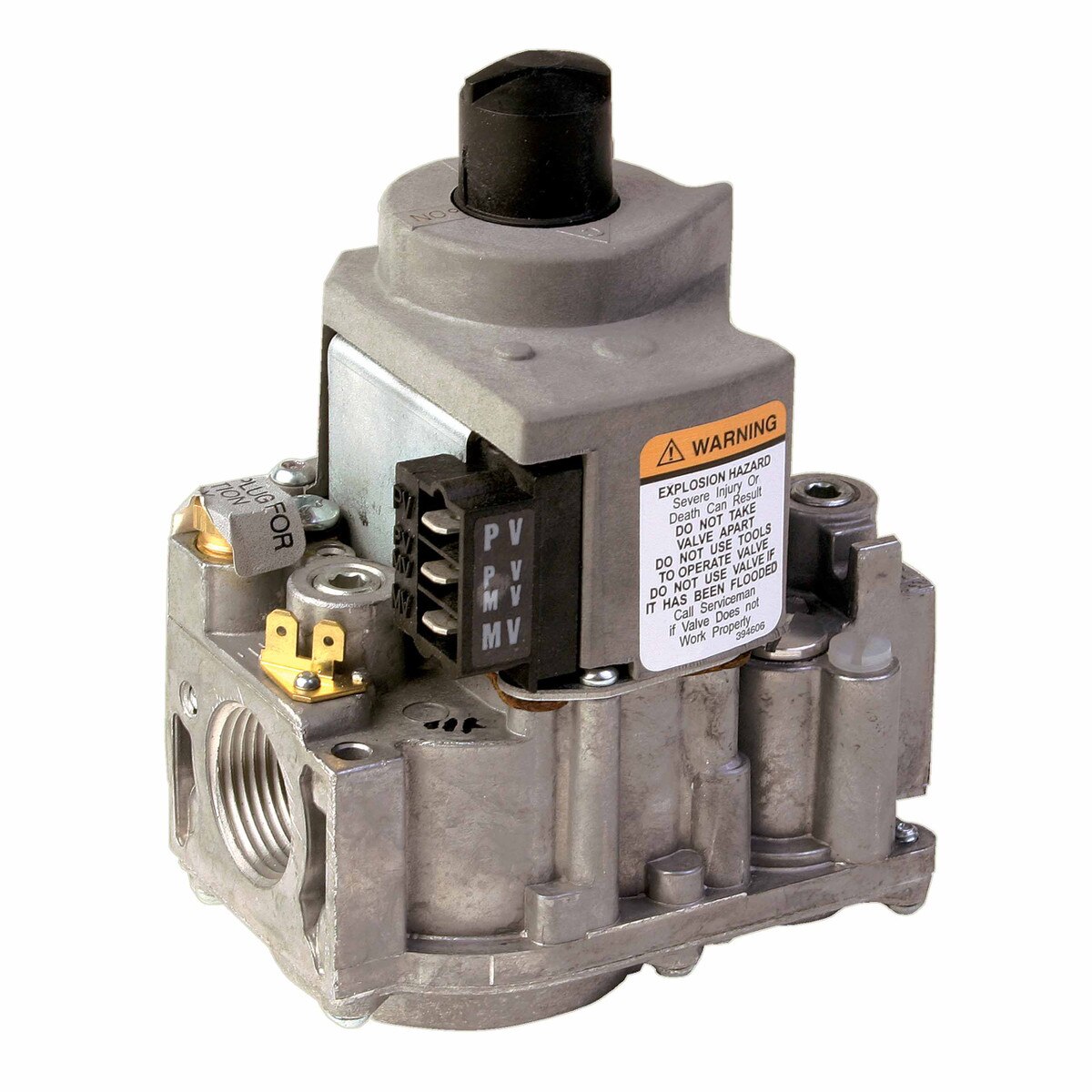

VR8345K4809 3/4" INTERMITTENT DIRECT IGNITION GAS VALVE SLOW OPENING
Details
Ignition Gas Valve
Type Slow Opening, Intermittent/Direct, Universal, 1-Stage
Port Connection 1/4 Inch Quick Connect Male Terminal
Input Supply Rating 24 Volt AC 50/60 Hertz
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Mounting Details 0 to 90 Degree in any Direction from the Upright Position of the Gas Control Knob, Including Vertical
Inclusions/Features (2) 3/4 Inch x 1/2 Inch Reducer Bushings, Natural to LP Conversion Kit
Applicable Standard UL MCCZ2.MH5323, CSA 112395
Overall Dimension 4-1/16 Inch Width x 2-11/16 Inch Depth x 5-3/8 Inch Height
Body Pattern Straight-Through
Inlet/Outlet Size 3/4 Inch x 3/4 Inch
Pilot Gas Outlet Compression Fitting for 1/4 Inch Outer Diameter Tubing
Pressure Tapping 1/8 Inch Threaded with Plug
Fuel Type Natural
Capacity 30000 to 415000 BTU/Hour Maximum Natural Gas
Pressure Regulator Type Slow
Pressure Regulator Set Point 3.5 Inch WC
