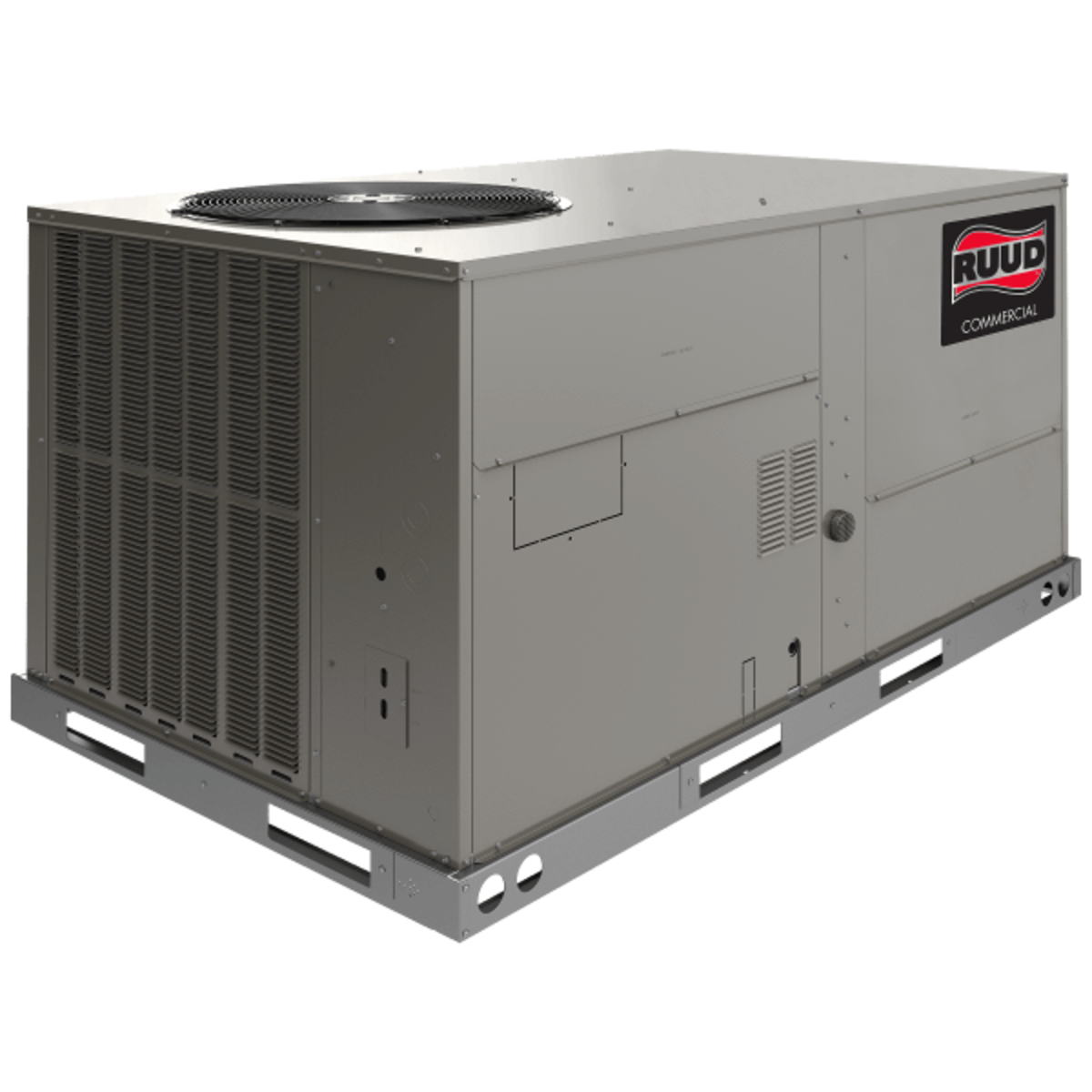

RUUD RGECZT072ACT122AAAA0 6 TON 125K BTU RUUD RTU 208/230V 3 PHASE DIRECT DRIVE CONSTANT TORQUE 2 STG M1

Ruud RGECZT072ACT122AAAA0 six ton packaged gas electric small commercial unit. Features 2 stage cooling, 3 phase/208-230V/60Hz, standard torque drive. Heat capacity of 125K BTU with 2 stage configuration. Non-communicating core command.

FEATURES:


• Factory charged with R-410A HFC refrigerant
• Wired and run tested
• Scroll compressors with internal line break overload and high pressure protection
• Convertible airflow – vertical down flow or horizontal side flow
• Forkable base rails for easy handling and lifting
• Cooling operation up to 125°F ambient
• Two-stage gas heat input with direct spark ignition system, solid state furnace controls, and optimized induced draft combustion
• MicroChannel evaporator and condenser coil
• PlusOne® ServiceSmart package includes: Qwik-Change Flex-Fit Rack™, Qwik-Slide Blower Assembly™, and Qwik-Clean Drain Pan™
• Overflow condensate sensor
• PlusOne® Diagnostics with Dual 7-Segment LED Display to meet code compliance
• One-piece top cover and base pan with drawn supply and return opening
• Two-piece control door
• ¼ turn fasteners on filter access door
• Color-coded and labeled wiring
• External lockable gauge ports
• TXV refrigerant metering system
• Solid-core liquid line filter drier
• High pressure and low pressure/loss of charge protection with built-in Smart Logic
• Insulation encapsulated throughout entire unit
• New product footprint with matching connections
• 3-6 ton ZT models include one two-stage compressor
• 3-5 ton ZR models include one single-stage compressor
• MERV 8 & MERV 13 filters are available as an accessory
• Standard Modbus interface
