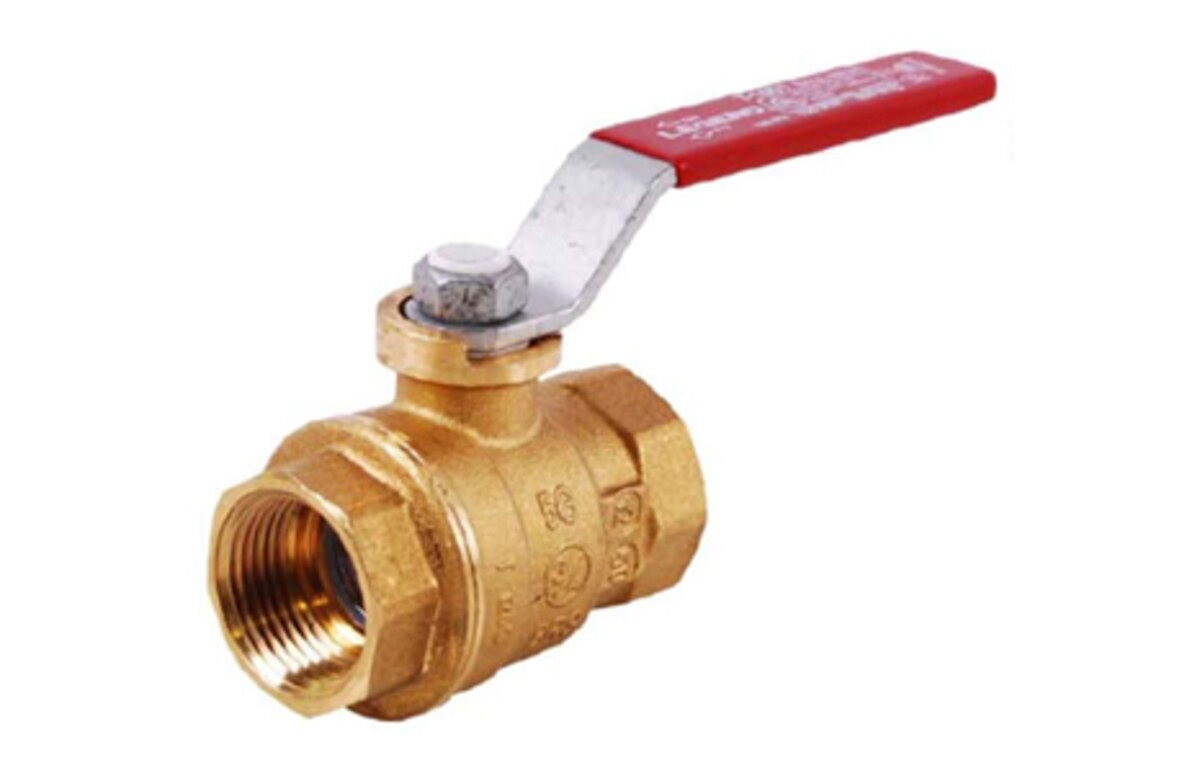

1/2" BRASS IRON PIPE BALL VALVE
Details
Ball Valve
Actuation Type Lever Handle
Nominal Size 1/2 Inch x 1/2 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 2.08 Inch
Ball Material CW510L UNS C28500 Forged Brass
Body Material CW510L UNS C28500 Forged Brass
Stem Material CW510L UNS C28500 Forged Brass
Seat Material TFM PTFE
Seal Material Florocarbon
Handle Material ASTM A510 UNS G10060 Dacromet Coated Steel
Port Type Full
Pressure Rating 600 PSI CWP
Inclusions/Features Bottom-Loaded Blowout-Proof Stem, Maintenance-Free Dual O-Ring Stem Seal
Application No-Lead Potable Water Installation, Lead-Free Plumbing Law
Applicable Standard ANSI/NSF 61-G, ASME B1.20.1/B16.18, MSS SP-110, CSA (Canada and US), FM, UL
Lead-Free
Material CW510L UNS C28500 Forged Brass (End Adapter), ASTM A510 UNS G10060 Dacromet Coated Steel (Locking Device/Handle Nut), TFM PTFE (Anti-Friction Washer)
Actuation Type Lever Handle
Nominal Size 1/2 Inch x 1/2 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 2.08 Inch
Ball Material CW510L UNS C28500 Forged Brass
Body Material CW510L UNS C28500 Forged Brass
Stem Material CW510L UNS C28500 Forged Brass
Seat Material TFM PTFE
Seal Material Florocarbon
Handle Material ASTM A510 UNS G10060 Dacromet Coated Steel
Port Type Full
Pressure Rating 600 PSI CWP
Inclusions/Features Bottom-Loaded Blowout-Proof Stem, Maintenance-Free Dual O-Ring Stem Seal
Application No-Lead Potable Water Installation, Lead-Free Plumbing Law
Applicable Standard ANSI/NSF 61-G, ASME B1.20.1/B16.18, MSS SP-110, CSA (Canada and US), FM, UL
Lead-Free
Material CW510L UNS C28500 Forged Brass (End Adapter), ASTM A510 UNS G10060 Dacromet Coated Steel (Locking Device/Handle Nut), TFM PTFE (Anti-Friction Washer)
