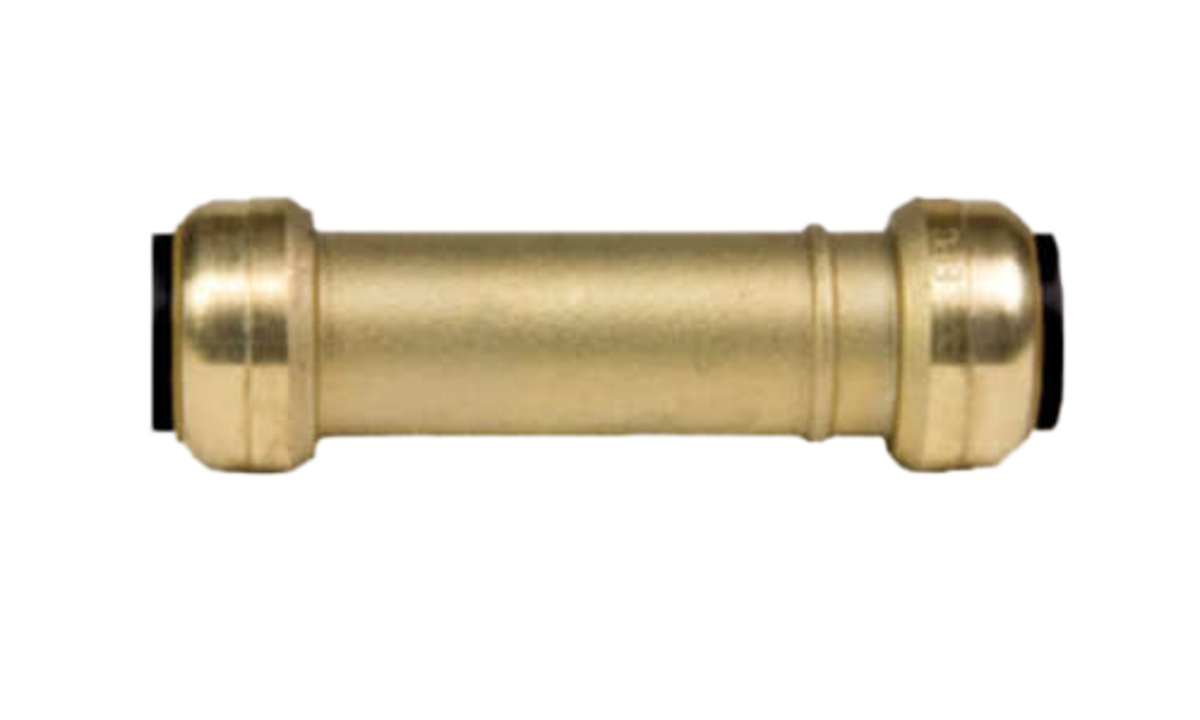

3/4" COPPER PUSH SLIP COUPLING LEAD FREE
Details
Coupling Fitting
Type Slip, Straight
Size A 3/4 Inch
Size B 3/4 Inch
End Connection Push-to-Connect x Push-to-Connect
Material Brass
Pressure Rating 200 PSI
Temperature Rating 32 to 250 Deg F
Gasket Supplied Yes
Gasket Details EPDM
Application Industrial, Residential
Applicable Standard ASME B16.22/B16.18, NSF/ANSI 61/14, ASSE 1061, IAPMO, CUPC, IPC
Lead-Free
Includes Nylon Guide Ring, 316 Stainless Steel Grab Ring
For Use With ASTM B88 Type K/L/M Drawn Hard Copper Tubing and Annealed Soft Copper Tubing, CPVC/PEX Water Tubing, PE-RT Tubing
Type Slip, Straight
Size A 3/4 Inch
Size B 3/4 Inch
End Connection Push-to-Connect x Push-to-Connect
Material Brass
Pressure Rating 200 PSI
Temperature Rating 32 to 250 Deg F
Gasket Supplied Yes
Gasket Details EPDM
Application Industrial, Residential
Applicable Standard ASME B16.22/B16.18, NSF/ANSI 61/14, ASSE 1061, IAPMO, CUPC, IPC
Lead-Free
Includes Nylon Guide Ring, 316 Stainless Steel Grab Ring
For Use With ASTM B88 Type K/L/M Drawn Hard Copper Tubing and Annealed Soft Copper Tubing, CPVC/PEX Water Tubing, PE-RT Tubing
