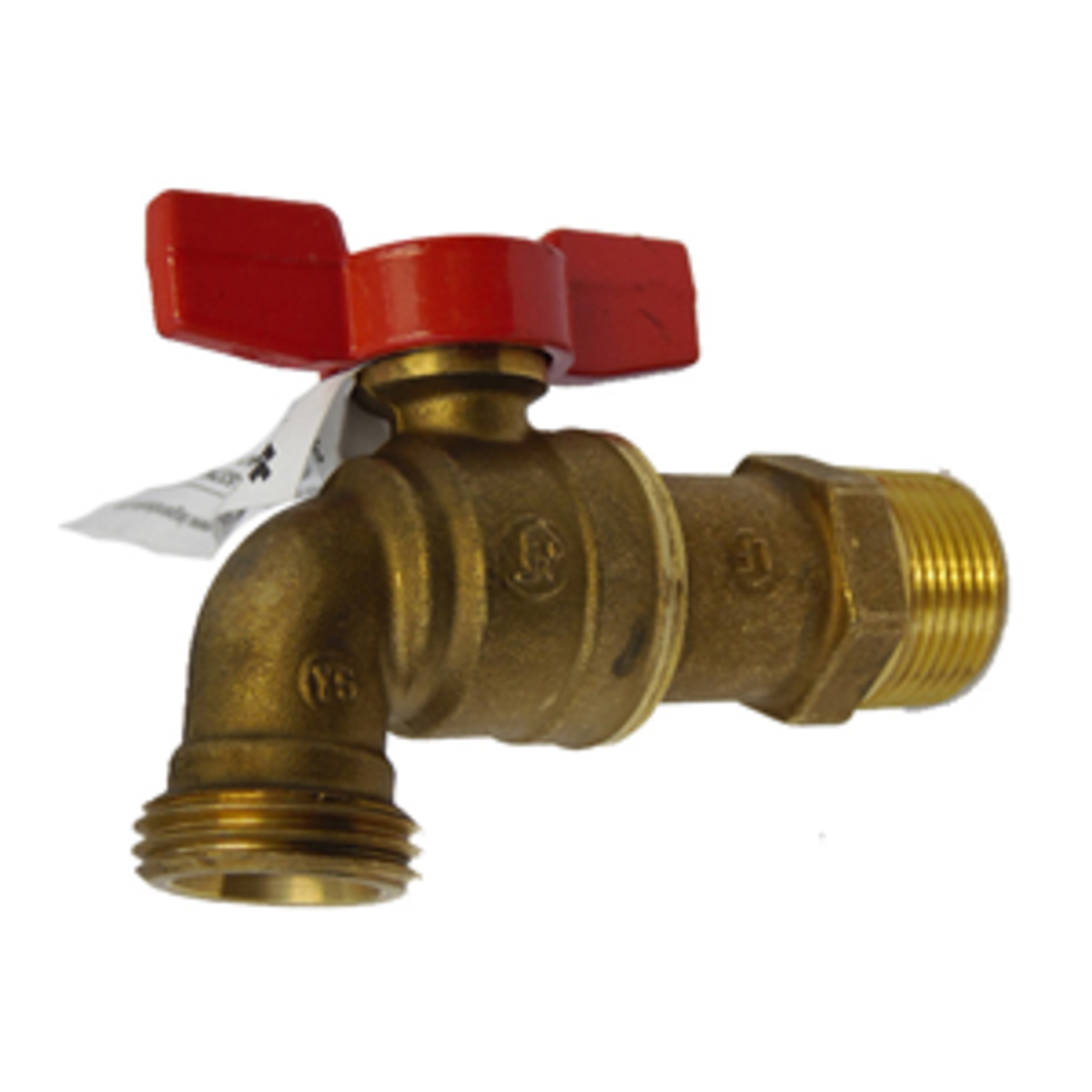

3/4" COPPER X MALE BOILER DRAIN BALL VALVE
Details
Ball Valve Hose Bibb
Actuation Type 1/4 Turn Handle
Nominal Size 3/4 Inch
End Connection Soldered x Male Threaded
Body Material CW510L UNS Alloy C28500 Forged Brass
Handle Material Dacromet Coated Steel
Pressure Rating 200 PSI CWP
Inclusions/Features CW510L UNS Alloy C28500 Chrome Plated Forged Brass Stem, PTFE Anti-Friction Thrust Washer, EPDM Rubber (2) Stem-O-Ring, PTFE Downstream Seat, CW510L UNS Alloy C28500 Chrome-Plated Forged Brass Ball, PTFE Anti-Friction Washer, CW510L UNS Alloy C28500 Forged Brass End Adapter, NBR (Buna-N) Upstream Seat
Applicable Standard ANSI/ASME B1.20.1/B16.18, ANSI/NSF 61G, ISO 9002
Lead-Free
Overall Size 3.87 Inch x 2.68 Inch x 2.45 Inch
Actuation Type 1/4 Turn Handle
Nominal Size 3/4 Inch
End Connection Soldered x Male Threaded
Body Material CW510L UNS Alloy C28500 Forged Brass
Handle Material Dacromet Coated Steel
Pressure Rating 200 PSI CWP
Inclusions/Features CW510L UNS Alloy C28500 Chrome Plated Forged Brass Stem, PTFE Anti-Friction Thrust Washer, EPDM Rubber (2) Stem-O-Ring, PTFE Downstream Seat, CW510L UNS Alloy C28500 Chrome-Plated Forged Brass Ball, PTFE Anti-Friction Washer, CW510L UNS Alloy C28500 Forged Brass End Adapter, NBR (Buna-N) Upstream Seat
Applicable Standard ANSI/ASME B1.20.1/B16.18, ANSI/NSF 61G, ISO 9002
Lead-Free
Overall Size 3.87 Inch x 2.68 Inch x 2.45 Inch
