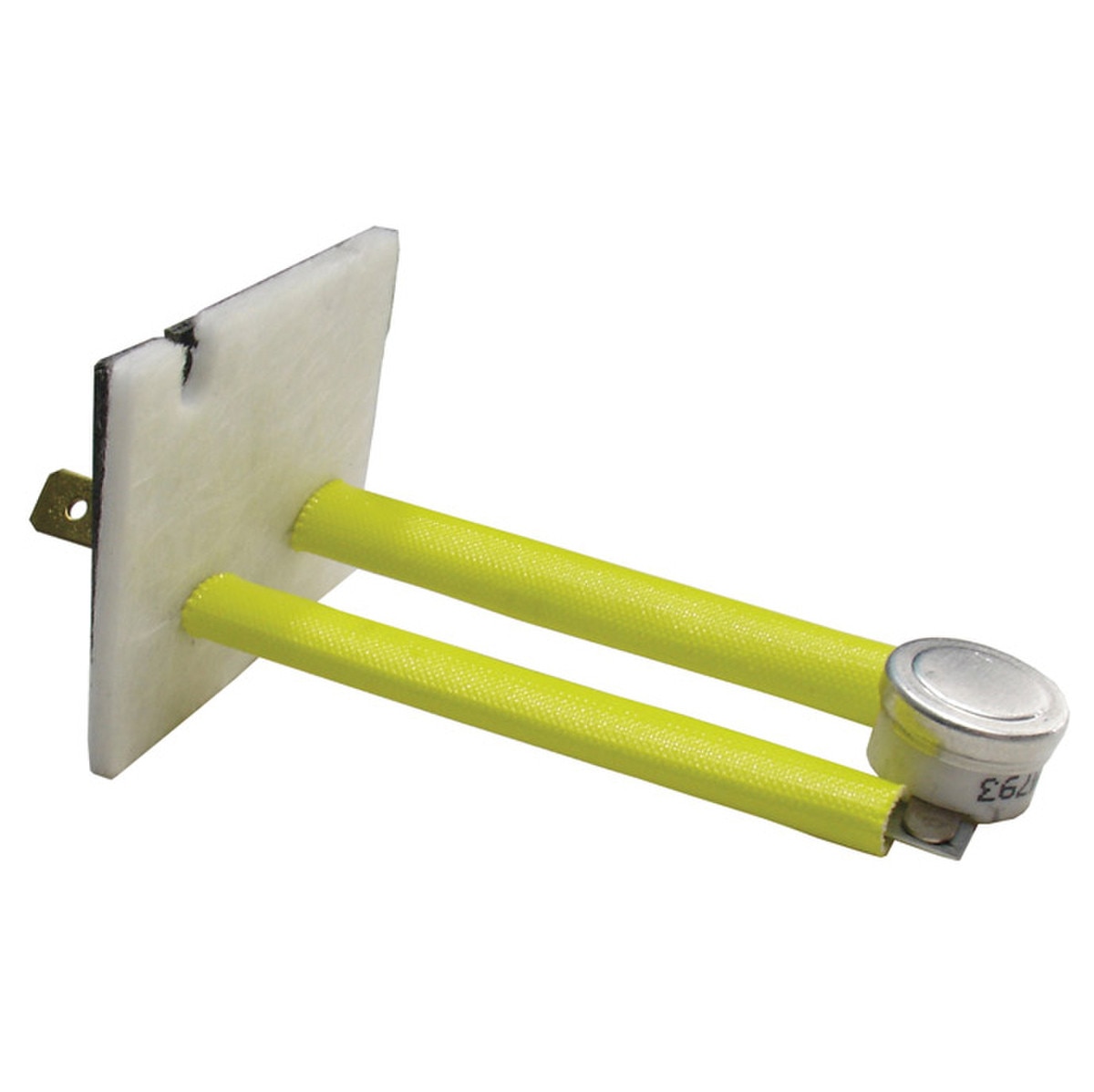

47-104990-04 LIMIT SWITCH - AUTO RESET (BOARD MOUNT)
Details
Gas Furnace Limit Switch
Type Limit Switch, SPST, Auto Reset, Normally Closed, 1-Pole
Used On R801CA075417MSA/MXA/R801CA075421MSA/MXA/R801CA100521MSA/MXA/R801CA125524MSA/MXA Gas Furnace
Voltage Rating 120/230 Volt AC
Current Rating 15/10 Amp
Temperature Rating 150 Deg F (Open), 130 Deg F (Close), +/-5 Deg F (Tolerance Open), +/-7 Deg F (Tolerance Close), 20 Deg F (Nominal Difference)
Color Yellow
Disc Face Type Enclosed
Mounting Type Board
Mounting Strap Angle 90 Degree
Mounting Board Dimension 1-9/16 Inch x 1-3/4 Inch
Mounting Insertion Size 3 Inch Depth
Connection 3/16 Inch Quick Connect
Application General Purpose
