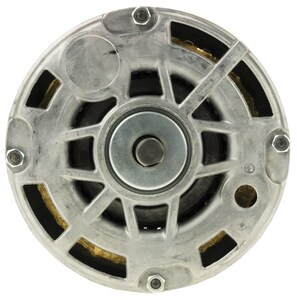

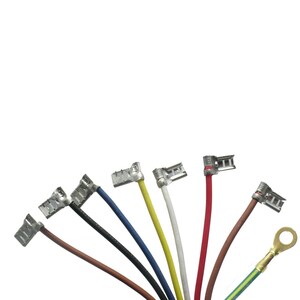

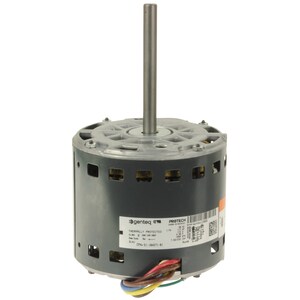

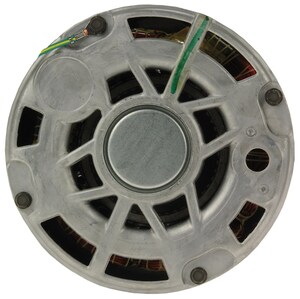

51-104671-01 BLOWER MOTOR - 1/2 HP 120/1/60 (1075 RPM/4 SPEED)
Details
Gas Furnace Blower Motor
Type Blower Motor, 4-Speed, Counter Clockwise, Direct Drive, Indoor
Used On R92PA/R95PA/R96PA Gas Furnace
Voltage Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 6.3 Amp (Full Load), 12.9 Amp (Locked Rotor)
Power Rating 1/2 HP
Speed Rating 1075 RPM
Frame Size 48
Overall Dimension 5-5/8 Inch Diameter x 9-11/32 Inch Length
Shaft Dimension 1/2 Inch Diameter x 4-11/16 Inch Length
Bearing Type Sleeve
Mounting Type Shell-Band/Shell-Screw
Includes 7.5 Microfarad 370 Volt Run Capacitor
Application Blower
Type Blower Motor, 4-Speed, Counter Clockwise, Direct Drive, Indoor
Used On R92PA/R95PA/R96PA Gas Furnace
Voltage Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 6.3 Amp (Full Load), 12.9 Amp (Locked Rotor)
Power Rating 1/2 HP
Speed Rating 1075 RPM
Frame Size 48
Overall Dimension 5-5/8 Inch Diameter x 9-11/32 Inch Length
Shaft Dimension 1/2 Inch Diameter x 4-11/16 Inch Length
Bearing Type Sleeve
Mounting Type Shell-Band/Shell-Screw
Includes 7.5 Microfarad 370 Volt Run Capacitor
Application Blower
