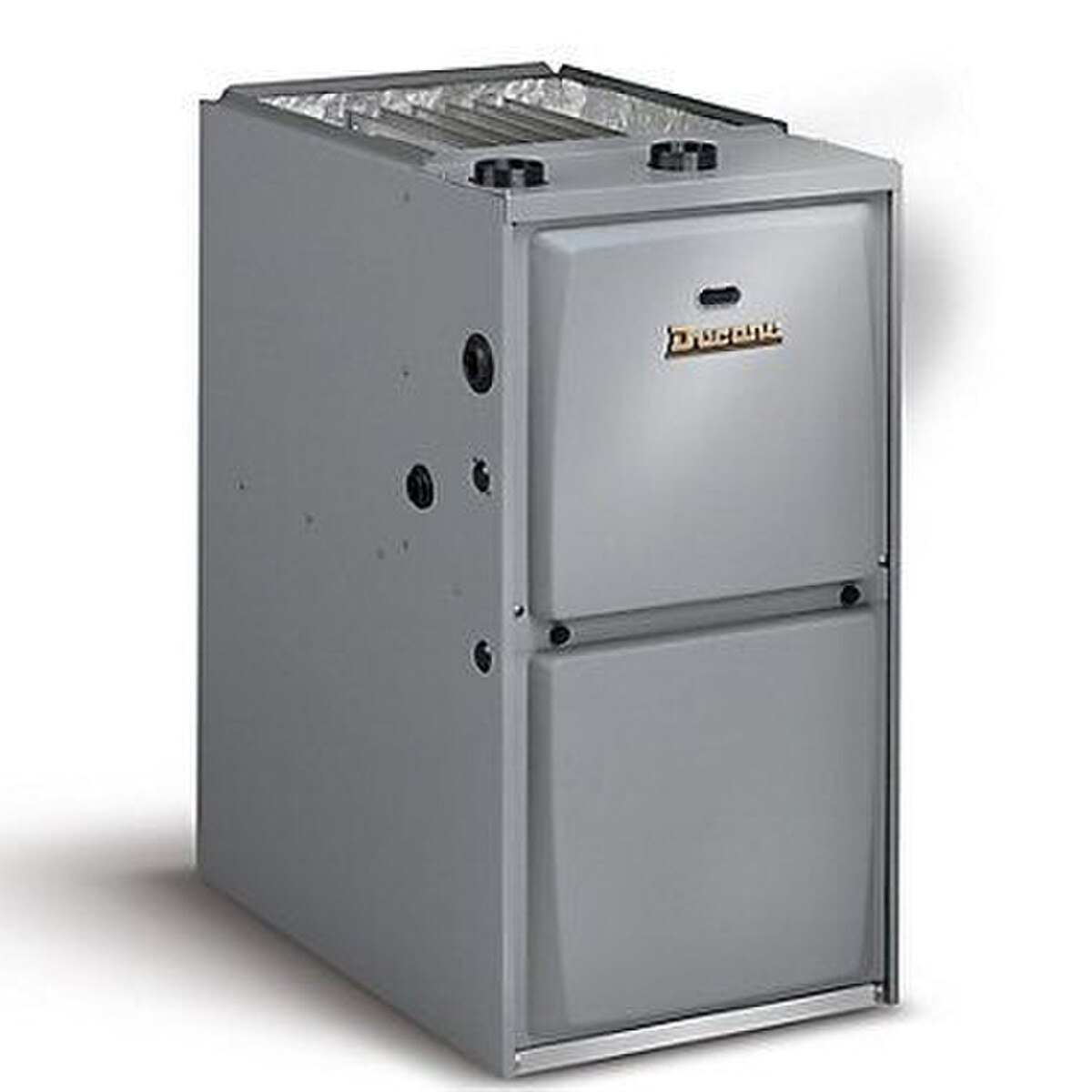

95G1DF045BE12 85W62 95% 1 STAGE DOWNFLOW 45K CONSTANT TORQUE FURNACE
Gas Furnace
Type 1-Stage, Multi-Speed, Downflow
Btu per Hour 45000 (Input), 42000 (Output)
Capacity 785 CFM (Low), 825 CFM (Medium/Low), 1090 CFM (Medium), 1215 CFM (Medium/High), 1320 CFM (High)
Control Type 40 Volt Amp Transformer
Size 17.5 Inch Width x 28-1/2 Inch Depth x 33 Inch Height
Gas Inlet Size 1/2 Inch
Inclusion/Features Multi-Speed High Efficiency Constant Torque Blower Motor, Easily Removable Slide-Out Blower, Aluminized Steel Heat Exchanger/Inshot Burner, Silicon Nitride Igniter, Enhanced Cooling SEER Rating
AFUE Rating 95 Percent
Cooling Capacity 3 Ton
Input Supply Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 6.8 Amp
Blower Motor Power 1/2 HP
Blower Size 10 Inch x 8 Inch
Rising Temperature Rating 25 to 55 Deg F
Applicable Standard AHRI, CSA
Type 1-Stage, Multi-Speed, Downflow
Btu per Hour 45000 (Input), 42000 (Output)
Capacity 785 CFM (Low), 825 CFM (Medium/Low), 1090 CFM (Medium), 1215 CFM (Medium/High), 1320 CFM (High)
Control Type 40 Volt Amp Transformer
Size 17.5 Inch Width x 28-1/2 Inch Depth x 33 Inch Height
Gas Inlet Size 1/2 Inch
Inclusion/Features Multi-Speed High Efficiency Constant Torque Blower Motor, Easily Removable Slide-Out Blower, Aluminized Steel Heat Exchanger/Inshot Burner, Silicon Nitride Igniter, Enhanced Cooling SEER Rating
AFUE Rating 95 Percent
Cooling Capacity 3 Ton
Input Supply Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 6.8 Amp
Blower Motor Power 1/2 HP
Blower Size 10 Inch x 8 Inch
Rising Temperature Rating 25 to 55 Deg F
Applicable Standard AHRI, CSA
