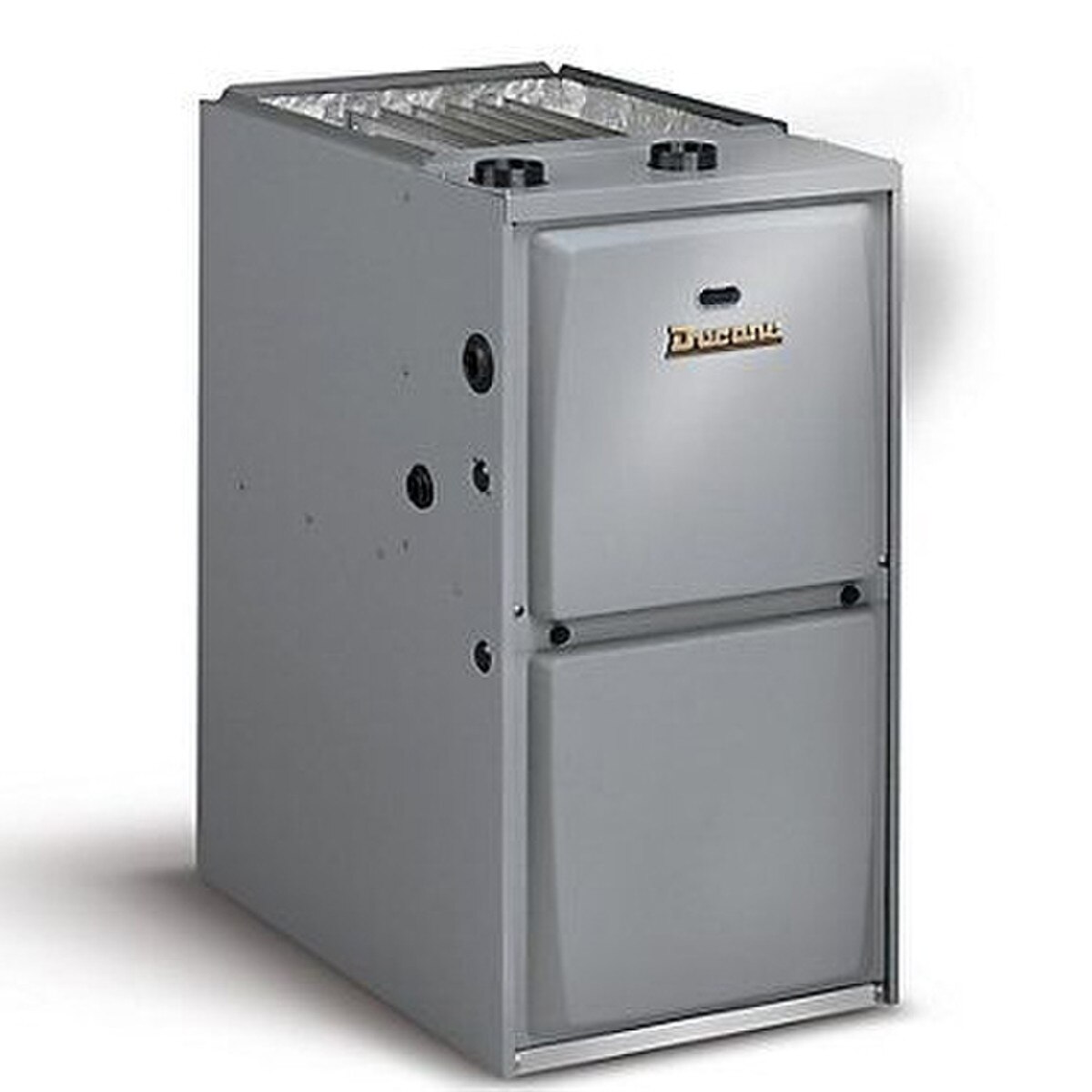

96G1UH110CE20 16J15 96% 110K BTU E CONSTANT TORQUE 1 STAGE UPFLOW UPFLOW FURNACE
Gas Furnace
Type 1-Stage, Multi-Speed, Upflow/Horizontal
Btu per Hour 110000 (Input), 106000 (Output)
Capacity 1345 CFM (Low), 1560 CFM (Medium/Low), 1670 CFM (Medium), 1865 CFM (Medium/High), 2130 CFM (High)
Control Type 40 Volt Amp Transformer
Size 21 Inch Width x 28-1/2 Inch Depth x 33 Inch Height
Gas Inlet Size 1/2 Inch
Inclusion/Features Multi-Speed High Efficiency Constant Torque Blower Motor, Easily Removable Slide-Out Blower, Aluminized Steel Heat Exchanger/Inshot Burner, Silicon Nitride Igniter, Enhanced Cooling SEER Rating
AFUE Rating 95 Percent
Cooling Capacity 5 Ton
Input Supply Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 10.9 Amp
Blower Motor Power 1 HP
Blower Size 11-1/2 Inch x 10 Inch
Rising Temperature Rating 45 to 75 Deg F
Applicable Standard AHRI, CSA
Type 1-Stage, Multi-Speed, Upflow/Horizontal
Btu per Hour 110000 (Input), 106000 (Output)
Capacity 1345 CFM (Low), 1560 CFM (Medium/Low), 1670 CFM (Medium), 1865 CFM (Medium/High), 2130 CFM (High)
Control Type 40 Volt Amp Transformer
Size 21 Inch Width x 28-1/2 Inch Depth x 33 Inch Height
Gas Inlet Size 1/2 Inch
Inclusion/Features Multi-Speed High Efficiency Constant Torque Blower Motor, Easily Removable Slide-Out Blower, Aluminized Steel Heat Exchanger/Inshot Burner, Silicon Nitride Igniter, Enhanced Cooling SEER Rating
AFUE Rating 95 Percent
Cooling Capacity 5 Ton
Input Supply Rating 120 Volt AC 60 Hertz 1-Phase
Current Rating 10.9 Amp
Blower Motor Power 1 HP
Blower Size 11-1/2 Inch x 10 Inch
Rising Temperature Rating 45 to 75 Deg F
Applicable Standard AHRI, CSA
