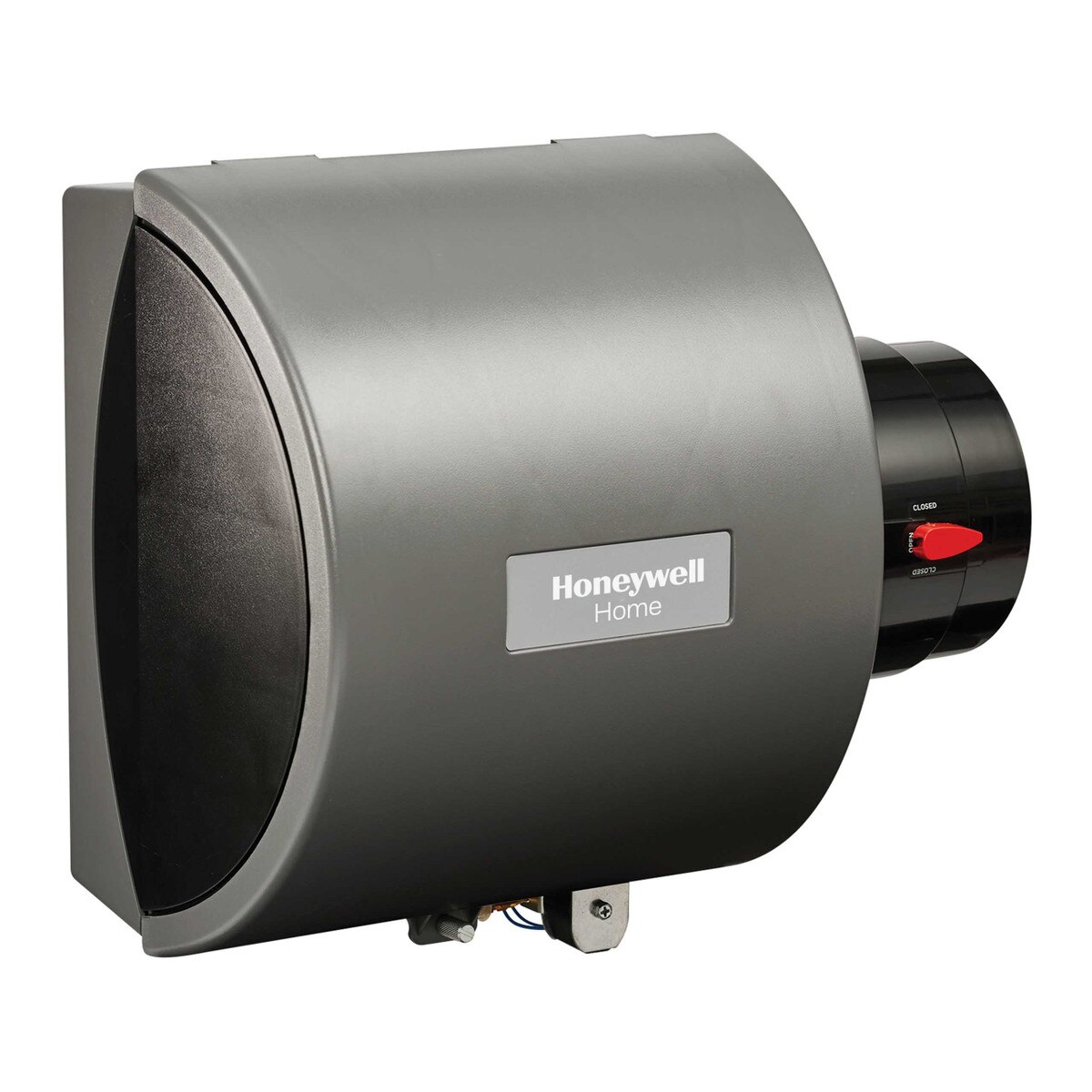

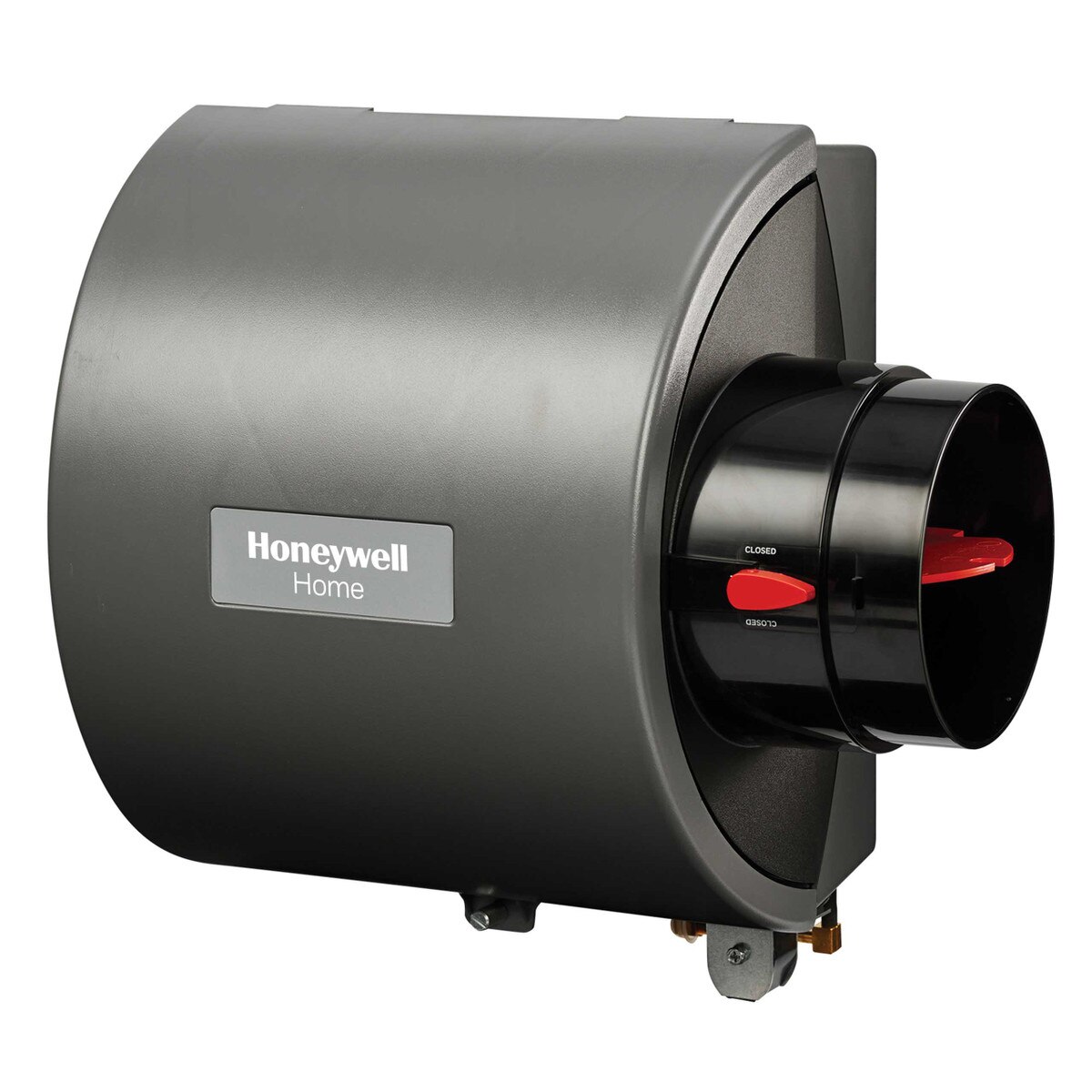

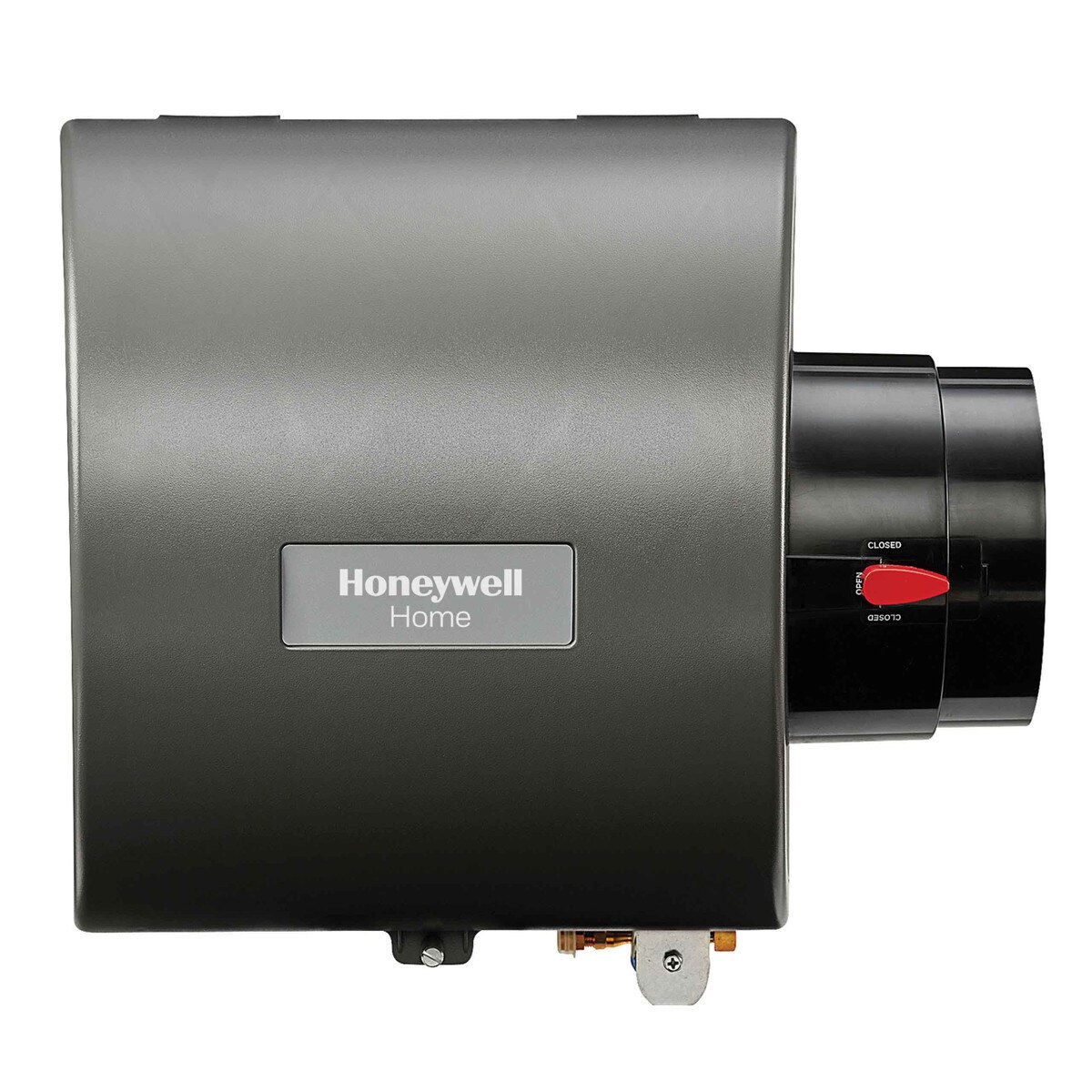

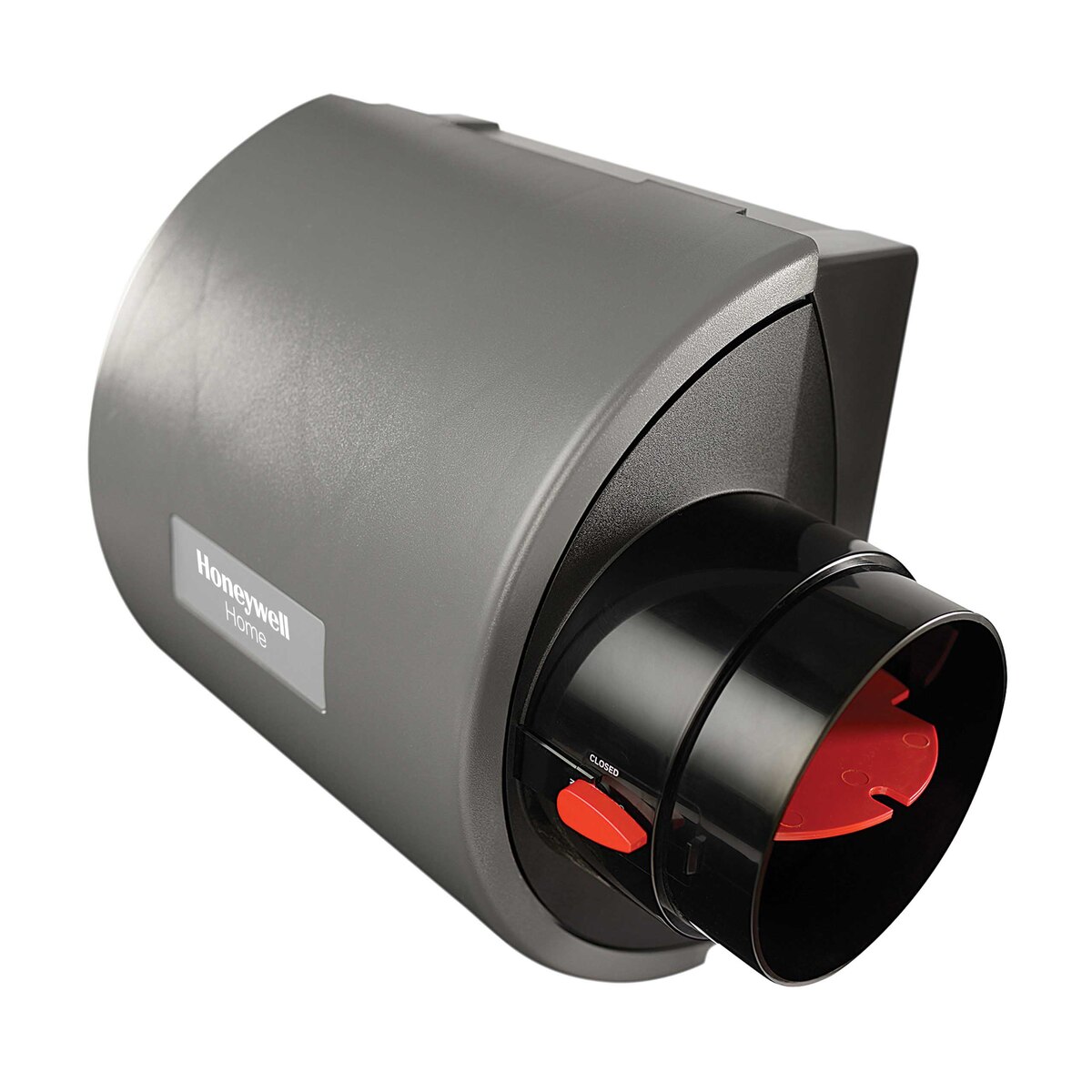

HE205A1000 17 GALLONS PER DAY BYPASS HUMIDIFIER MANUAL STAT

Bypass Humidifier
Type Large, Bypass
Voltage Rating 24 Volt AC
Contact Rating 0.5 Amp
Frequency Rating 60 Hertz
Color Gray
Overall Dimensions 18.3 Inch Length x 17.11 Inch Width x 9.59 Inch Depth
Mounting Type Duct Mount
Temperature Rating 41 to 113 Deg F
Inclusions/Features Humidifier, Humidistat, Plug-In Transformer
Application Indoor Air Quality
Applicable Standard UL, CUL
Bypass Duct Opening Size 6 Inch
Capacity 17 GPD
Water Pressure Rating 40 to 120 PSI
Orifice Output 0.02 Inch
Flow Rating at Nozzle 4.7 GPH
