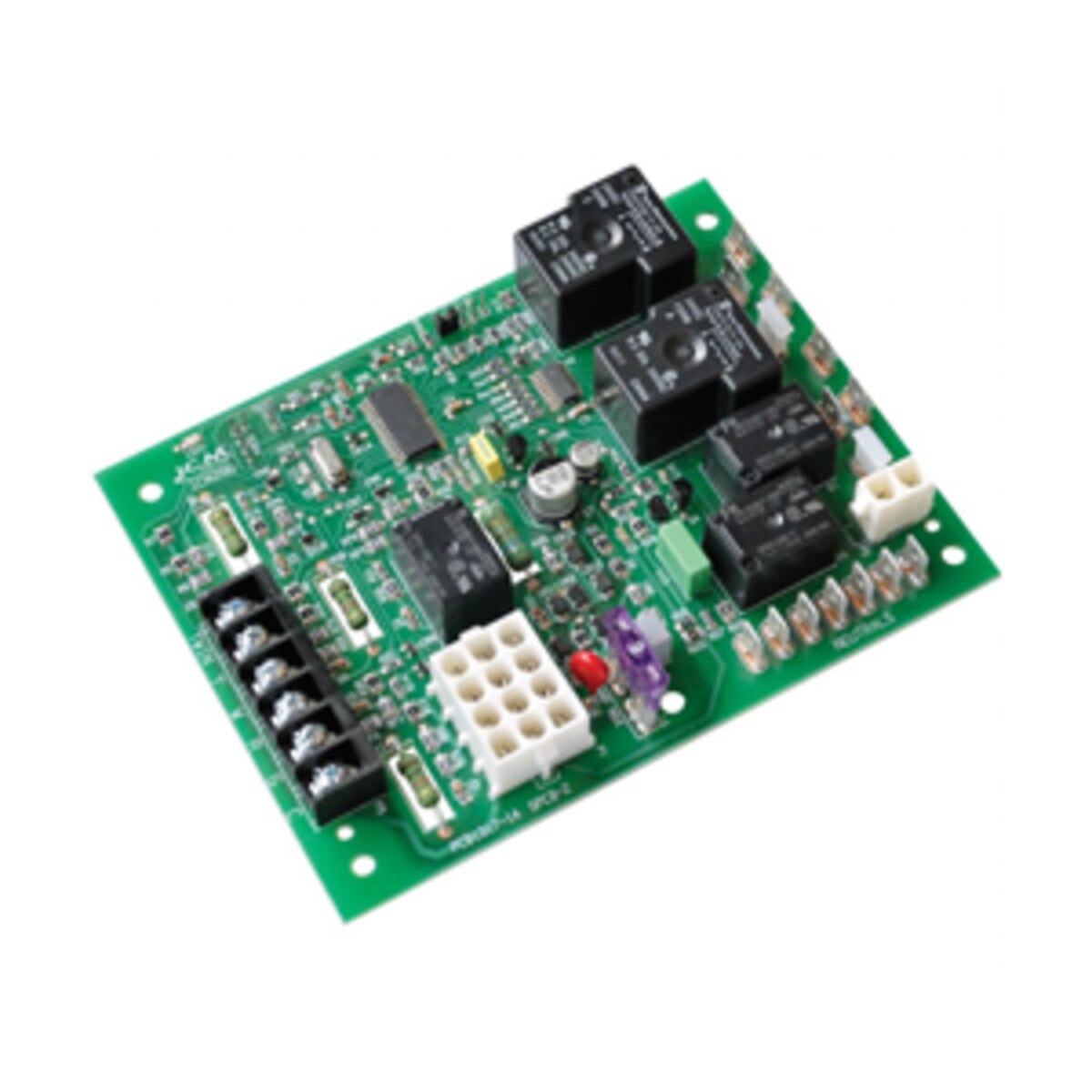

ICM286 REPLACEMENT FURNACE BOARD FITS GOODMAN B18099-26S
Details
- Furnace Control Board
- Type Control Board, Microprocessor Based
- Used On Furnace
- Voltage Rating 98 to 132 Volt AC 60 Hertz (Line)
- Current Rating 30 Amp at 240 Volt AC (Cool Blower), 20 Amp at 240 Volt AC (Heat), 4 Amp (Full Load), 8 Amp (Locked Rotor) at 120 Volt AC (Inducer Motor), 10 Amp (Full Load) at 120 Volt AC (Igniter), 5 Amp at 120 Volt AC (Humidifier), 5 Amp at 120 Volt AC (Electric Air Cleaner)
- Power Rating 2 HP at 240 Volt AC (Cool Blower)
- Size 4.5 Inch Length x 6 Inch Width x 1 Inch Height
- Time Delay 30 Second (Heat Blower ON), 90/120/150/180 Second (Heat Blower Off), 5 Second (Cool Blower ON), 45 Second (Cool Blower Off)
- Ignition Trial Time 7 Second
- Prepurge Time 15 Second
- Total Trial for Ignition 3
- Auto Reset 60 Minute
- Temperature Rating -40 to 176 Deg F
- Humidity Rating 5 to 95 Percent RH (Non-Condensing) at 131 Deg F
