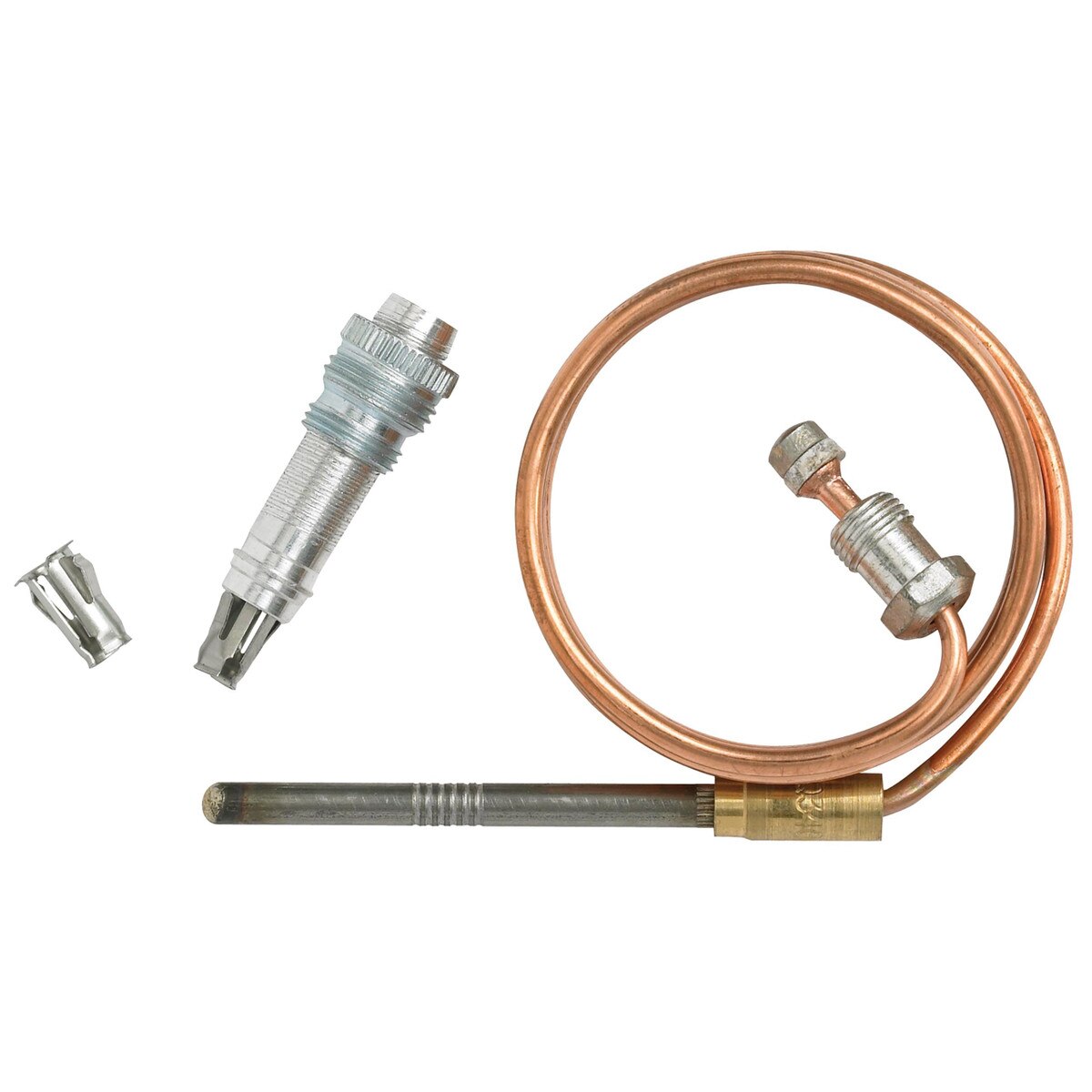

Q340A 1090 36" THERMOCOUPLE
Details
Thermocouple
Type Universal
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 36 Inch
Connection Type 11/32 Inch-32 TPI Male Connector Nut
Application Pilot Burner, Standing Pilot Gas Fired Heating System, Safety Control Power Unit
Approval CSA
Voltage Rating 30 Millivolt, 26 to 32 Millivolt (Open Circuit Output)
Resistance 0.02 Ohm
Includes Adapter and Push-In Clip
Type Universal
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 36 Inch
Connection Type 11/32 Inch-32 TPI Male Connector Nut
Application Pilot Burner, Standing Pilot Gas Fired Heating System, Safety Control Power Unit
Approval CSA
Voltage Rating 30 Millivolt, 26 to 32 Millivolt (Open Circuit Output)
Resistance 0.02 Ohm
Includes Adapter and Push-In Clip
